Highlights

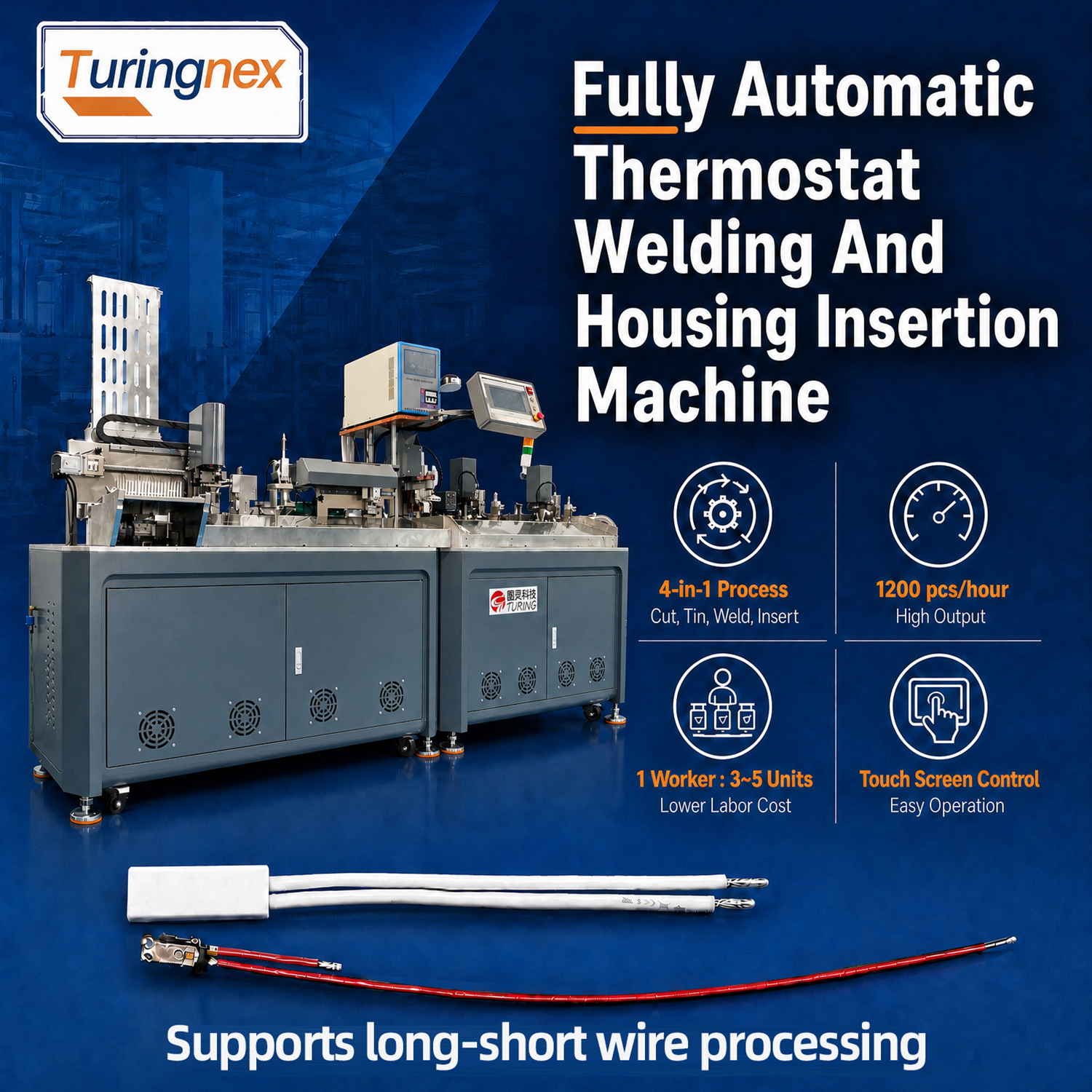

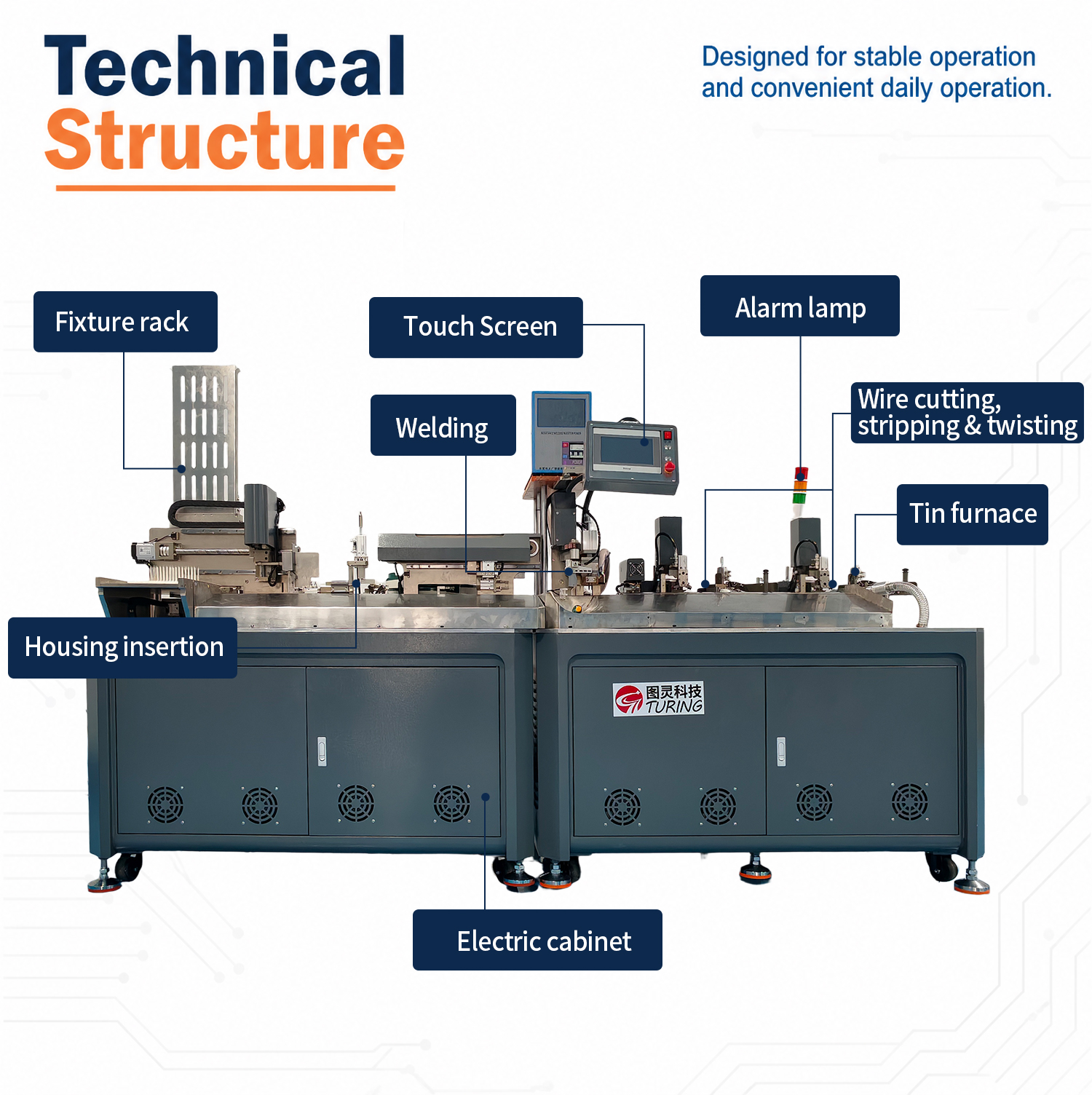

Integrated Full‑process Operation

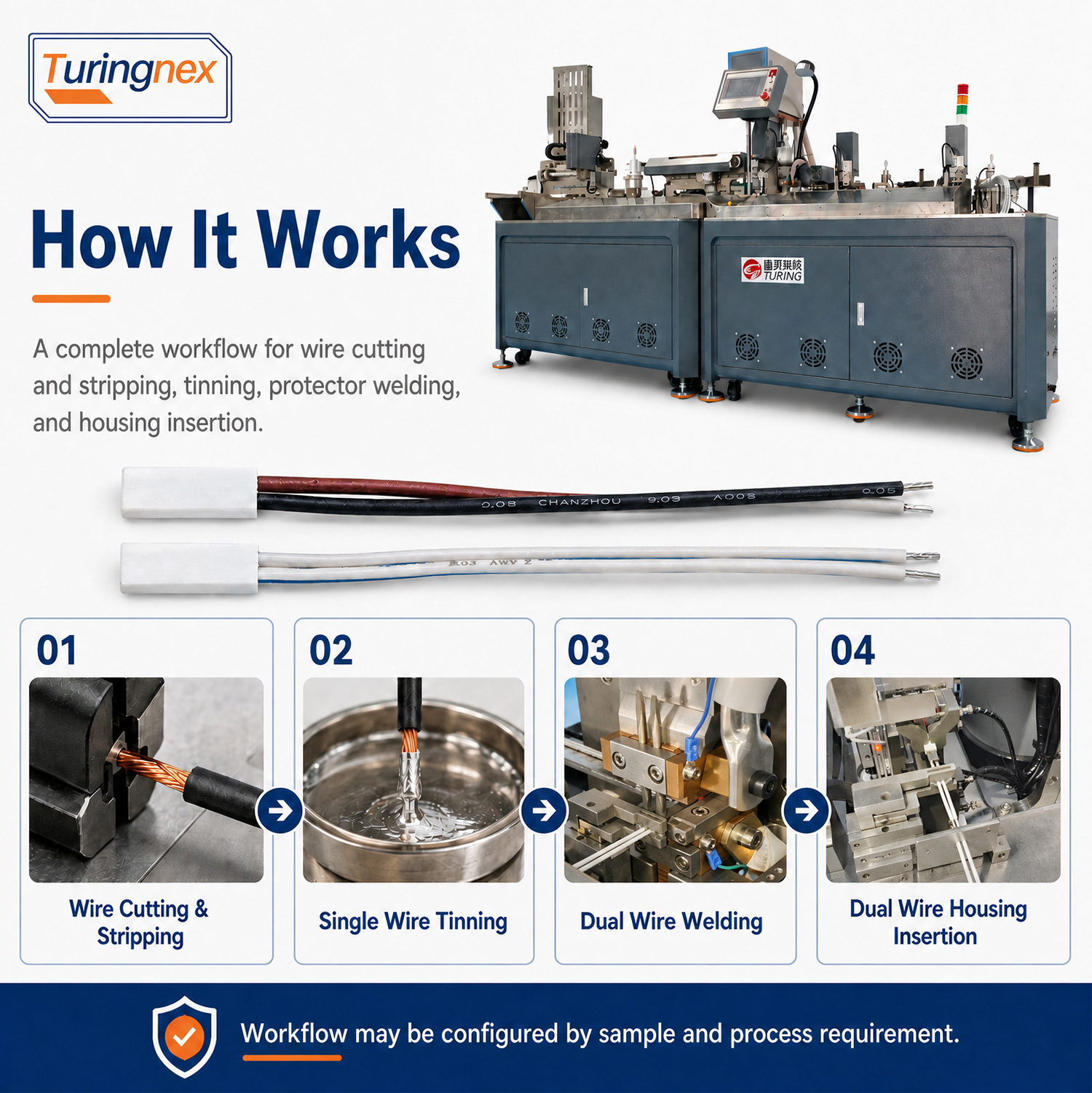

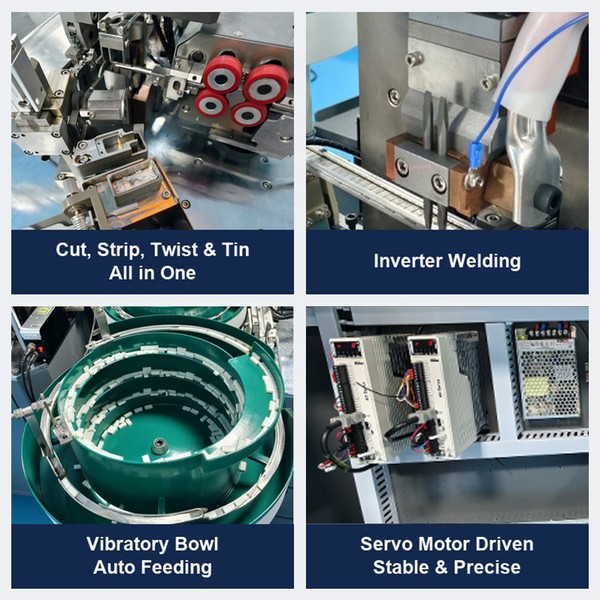

One single machine completes cutting, stripping‑twisting‑tin‑dipping, inverter welding, housing insertion, laser marking and fixture loading. It replaces segmented production lines and supports independent‑single‑process operation.

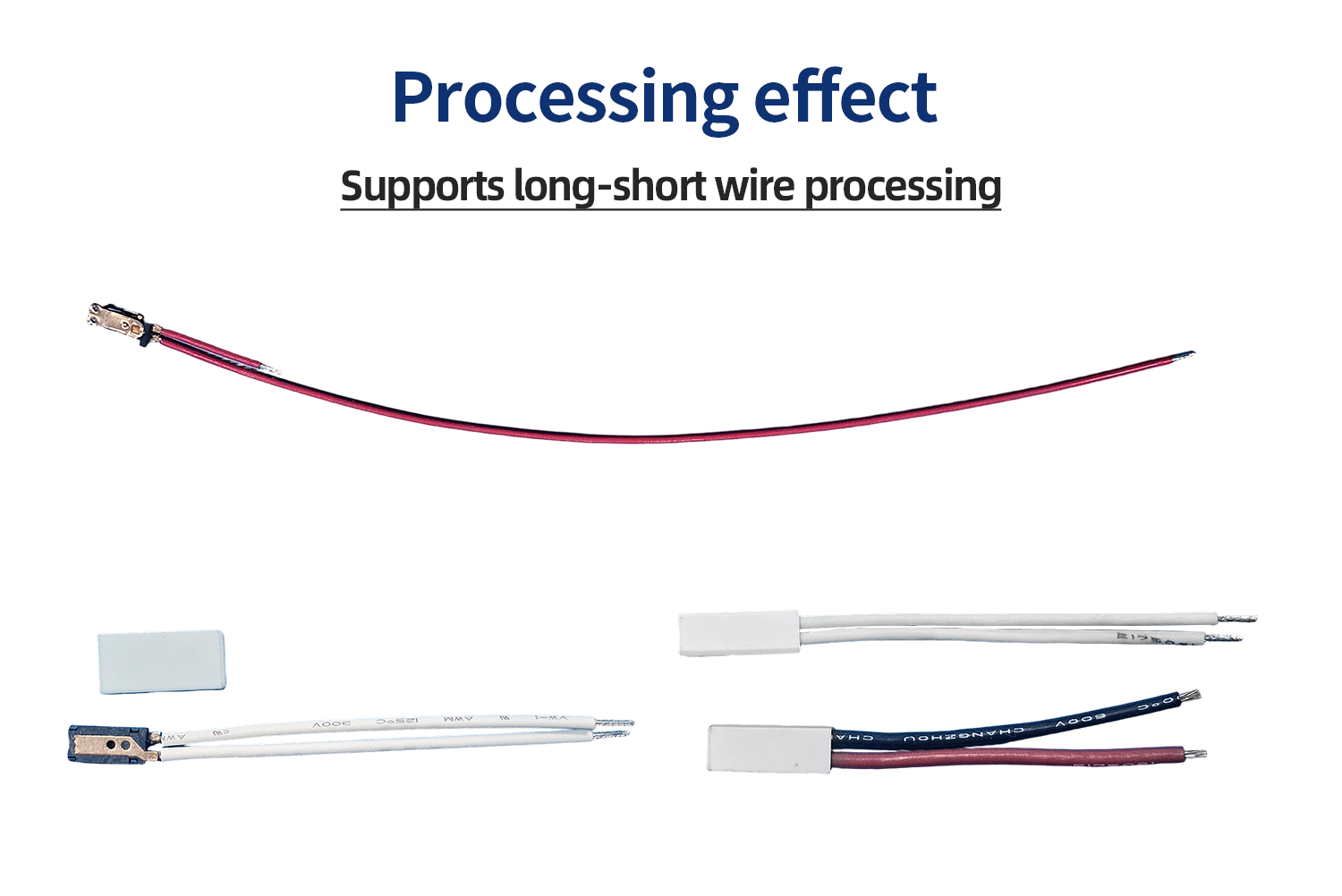

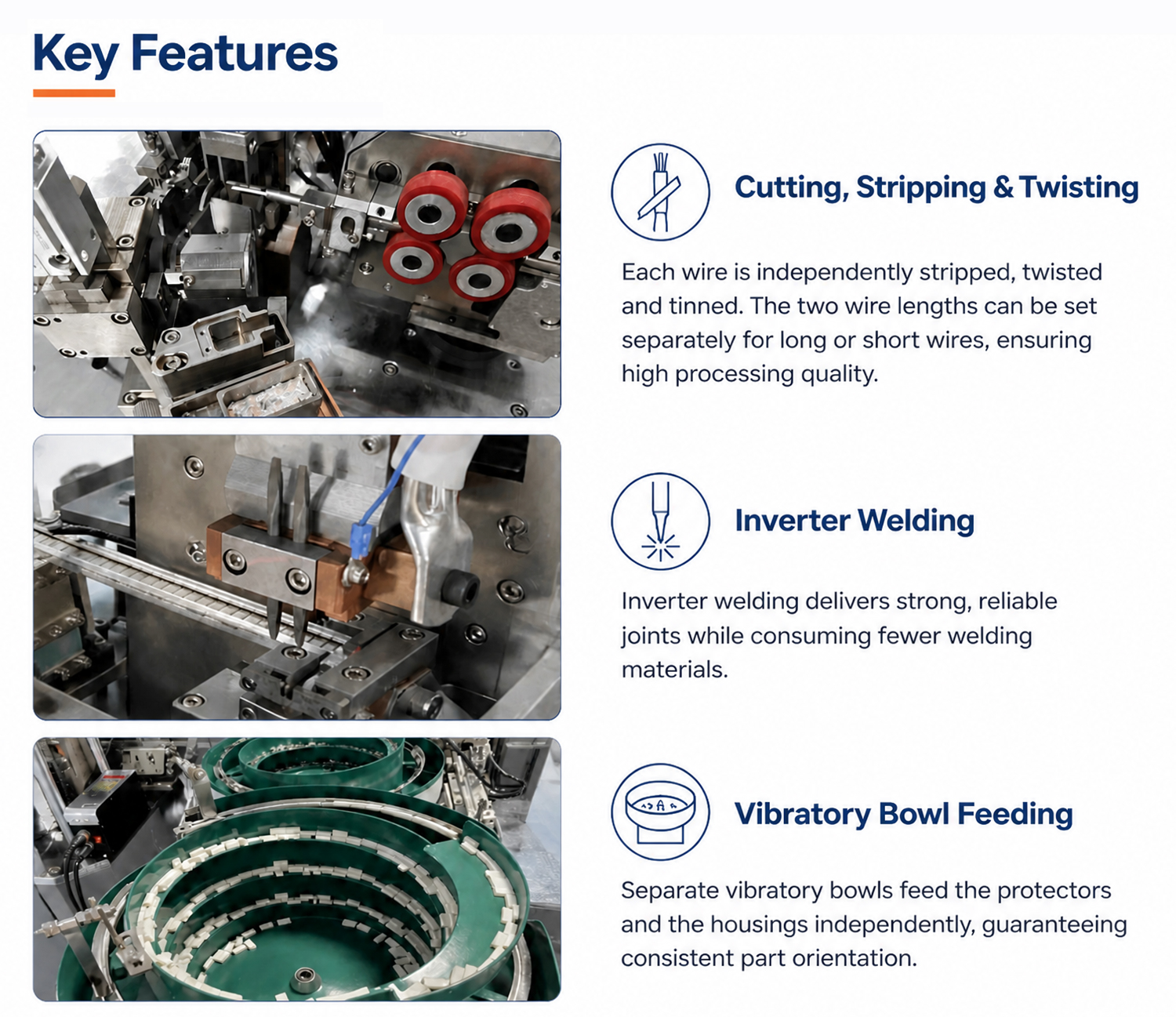

Dual‑wire Independent Processing for Mixed Long‑short Wires
Each wire undergoes separate stripping, twisting and tin‑dipping. Two wire lengths can be individually configured, enabling simultaneous production of long‑and‑short wires for various thermostat harness specifications.
Dual Independent Vibratory Feeding System
Separate vibratory feeders for protectors and housings ensure consistent component orientation, greatly reducing jamming and unexpected downtime for stable continuous feeding.
Inverter Welding: Firm Joints & Lower Consumables
Adopts inverter welding module to form smooth, solid solder joints. It consumes less tin compared with conventional welding, with multi‑check against cold solder joints.
High Output & Minimal Labor Input

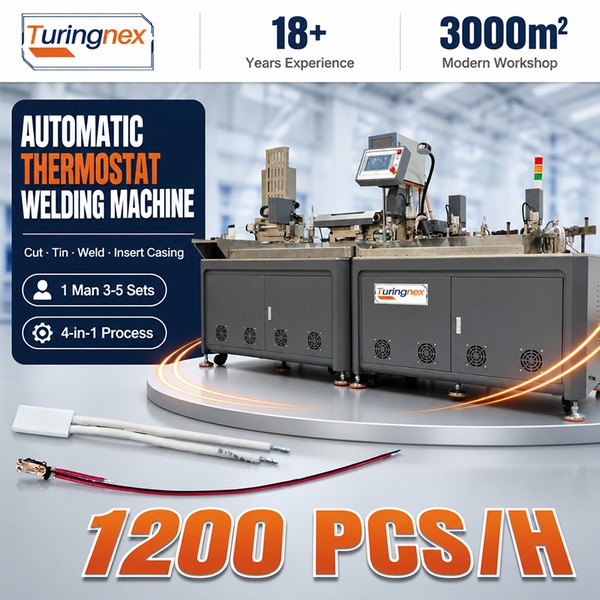

Stable capacity of 1200 pcs/hour under standard conditions. One operator can monitor 3‑5 machines simultaneously, significantly cutting labor costs for mass‑production scenarios.
High‑precision Inspection & Customizable Fixtures
Accurate housing insertion without shell damage; laser marking enables full‑product traceability. Large‑capacity 40‑position fixtures support custom modification. Multiple sensors monitor wire status, housing feeding and insertion completeness for far better quality consistency than manual work.

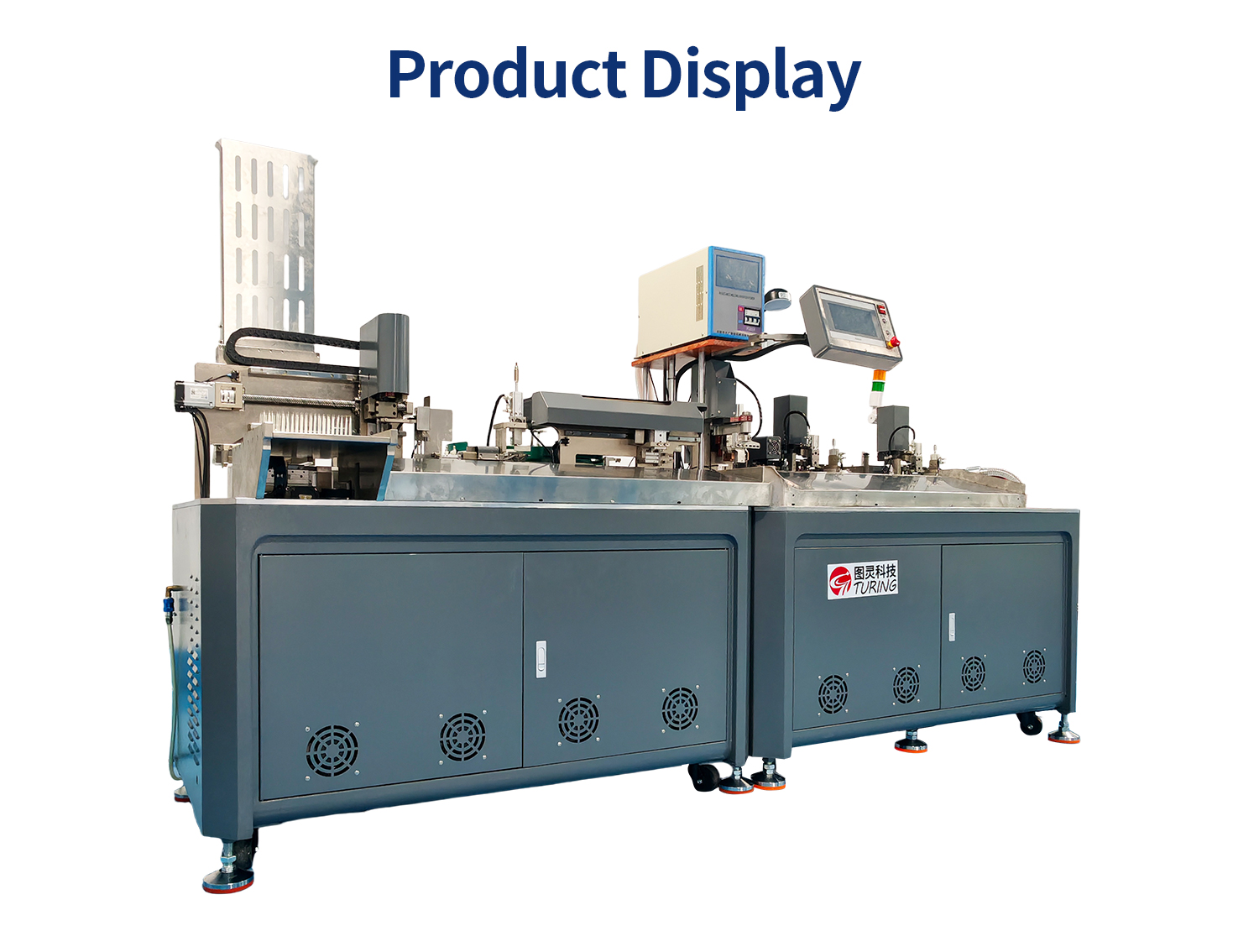

TR-WK01 in Operation

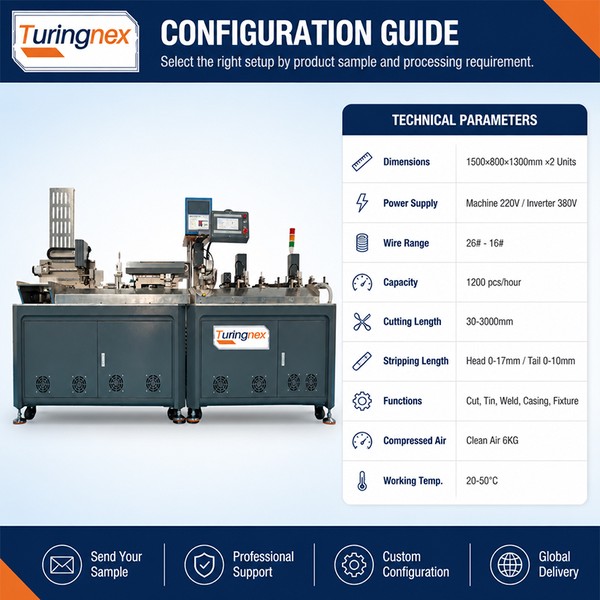

Full Specifications
Technical Data
| Model | TR-WK01 |
| Process | Automatic Thermostat Welding & Housing-Inserting Machine |
| Control | PLC / touch-screen control |
| Terminal compatibility | Automatic Thermostat Welding & Housing-Inserting Machine (see quotation for your wire/terminal spec) |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- Automatic thermostat welding
- Housing insertion integrated in line
- Reduces manual assembly for thermostat lines
Services Around the Machine

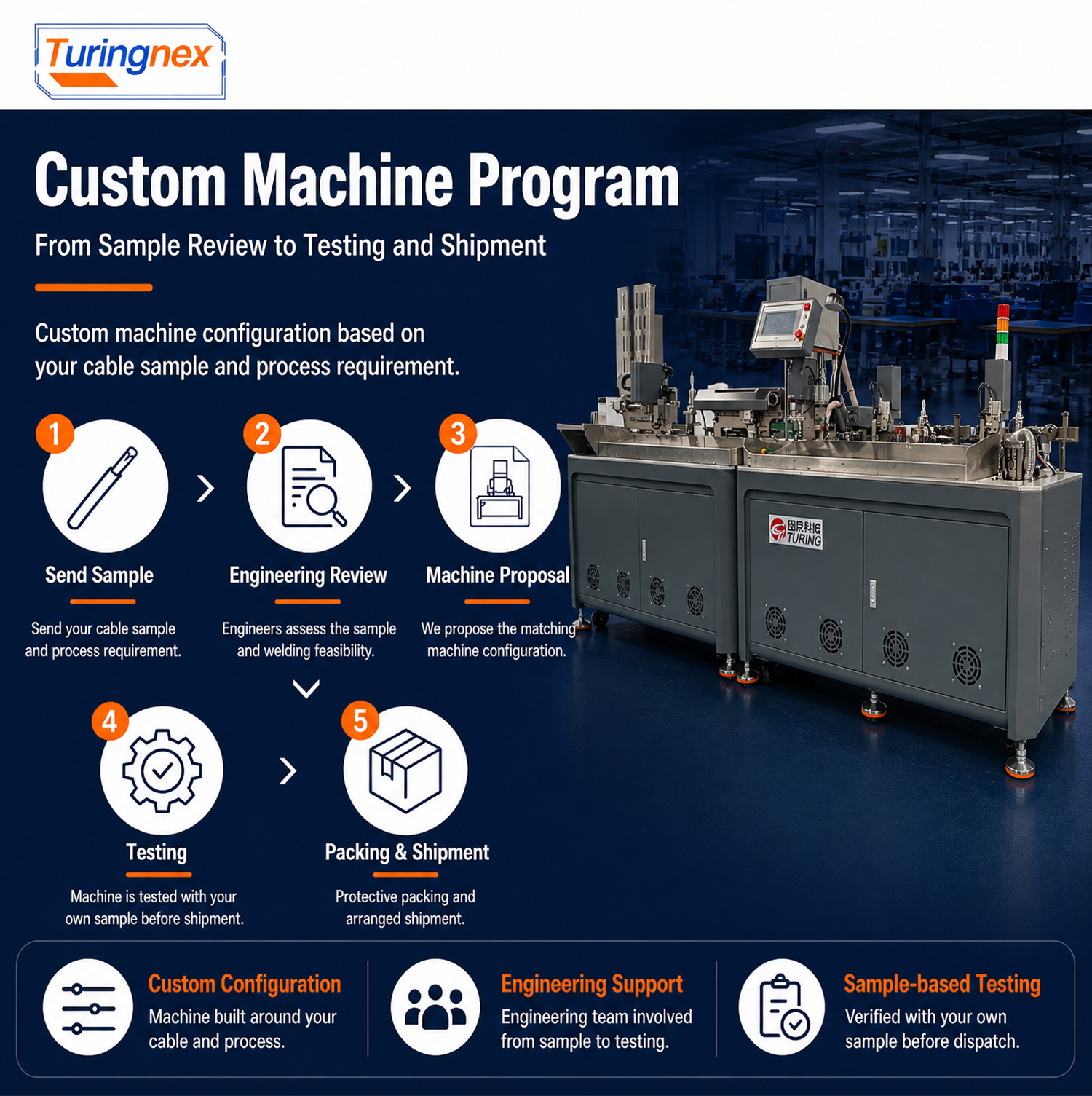

From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
Datasheet
Full specifications in one page — parameters, power, delivery terms.
Download TR-WK01 Datasheet (PDF)Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: Standard models in stock; customised machines 7–15 days, confirmed at quotation

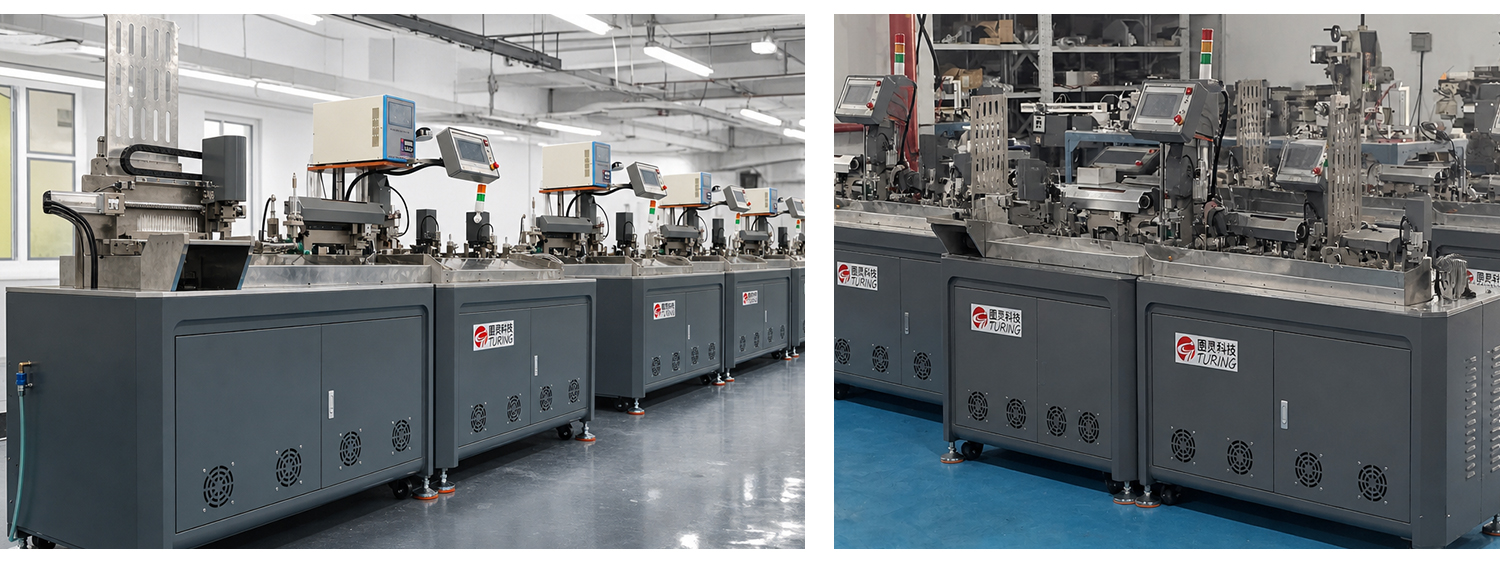

Request a TestTR-WK01 in Production
Applications
Best for automatic thermostat welding with housing insertion.
Process Detail
Automatic Thermostat Welding & Housing-Inserting Machine is built for consistent, repeatable output on production lines.
Quality Control
Every machine is run-in tested before shipment; CE-certified build.

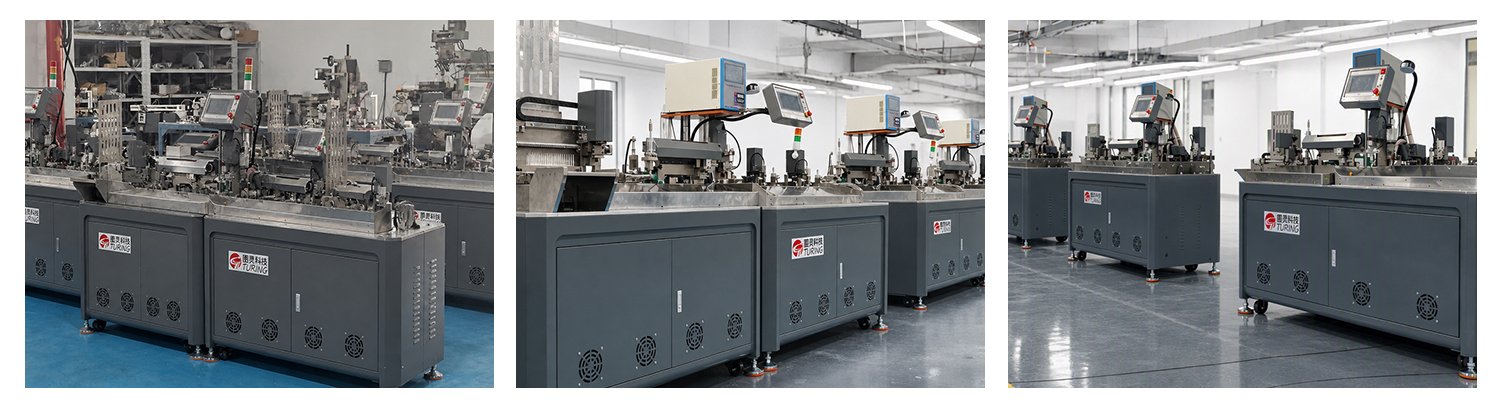

Workshop
Assembled in our 3,000 sqm automatic machinery workshop in Dongguan.
Why Buy Direct From Turingnex
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
