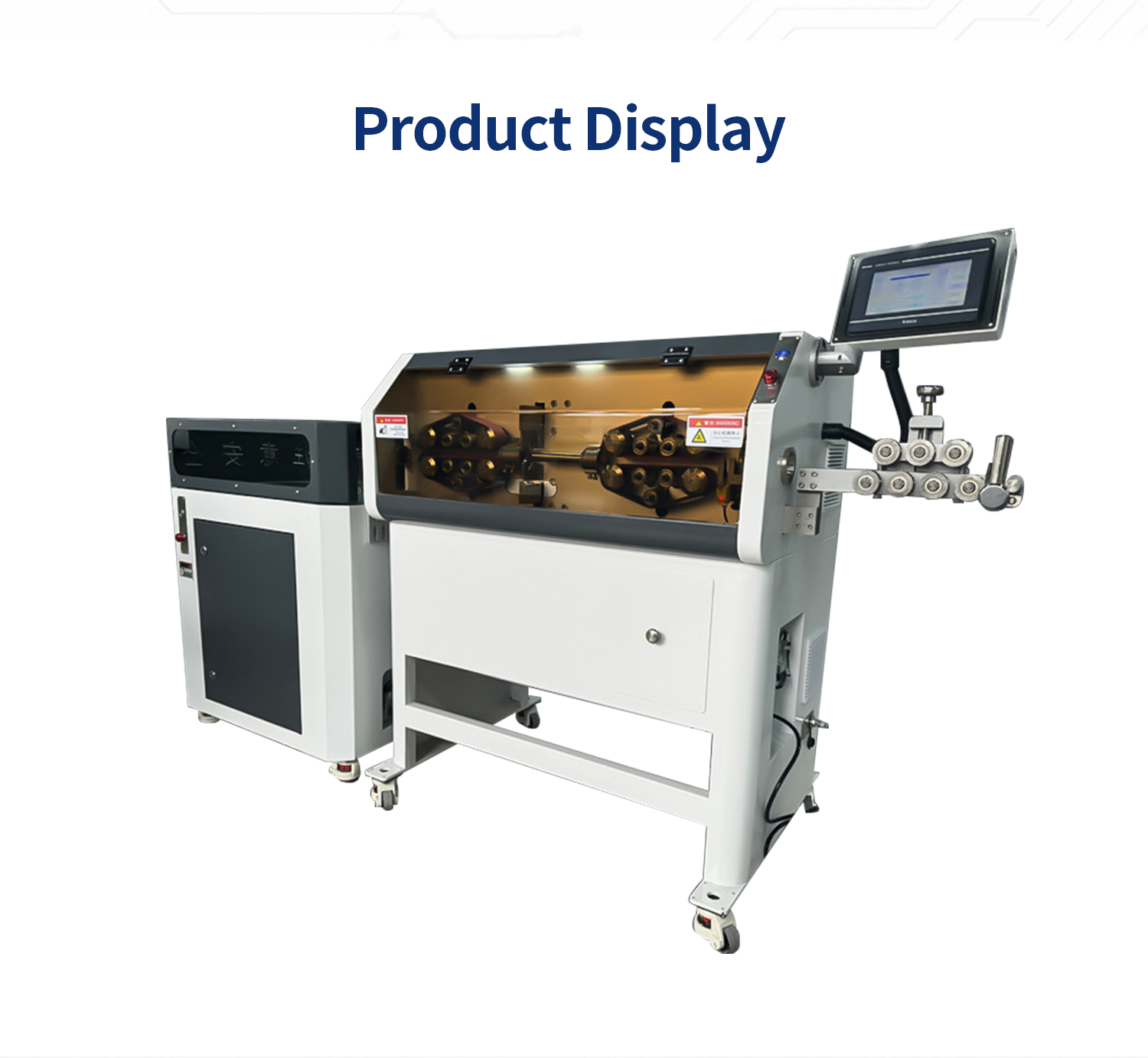

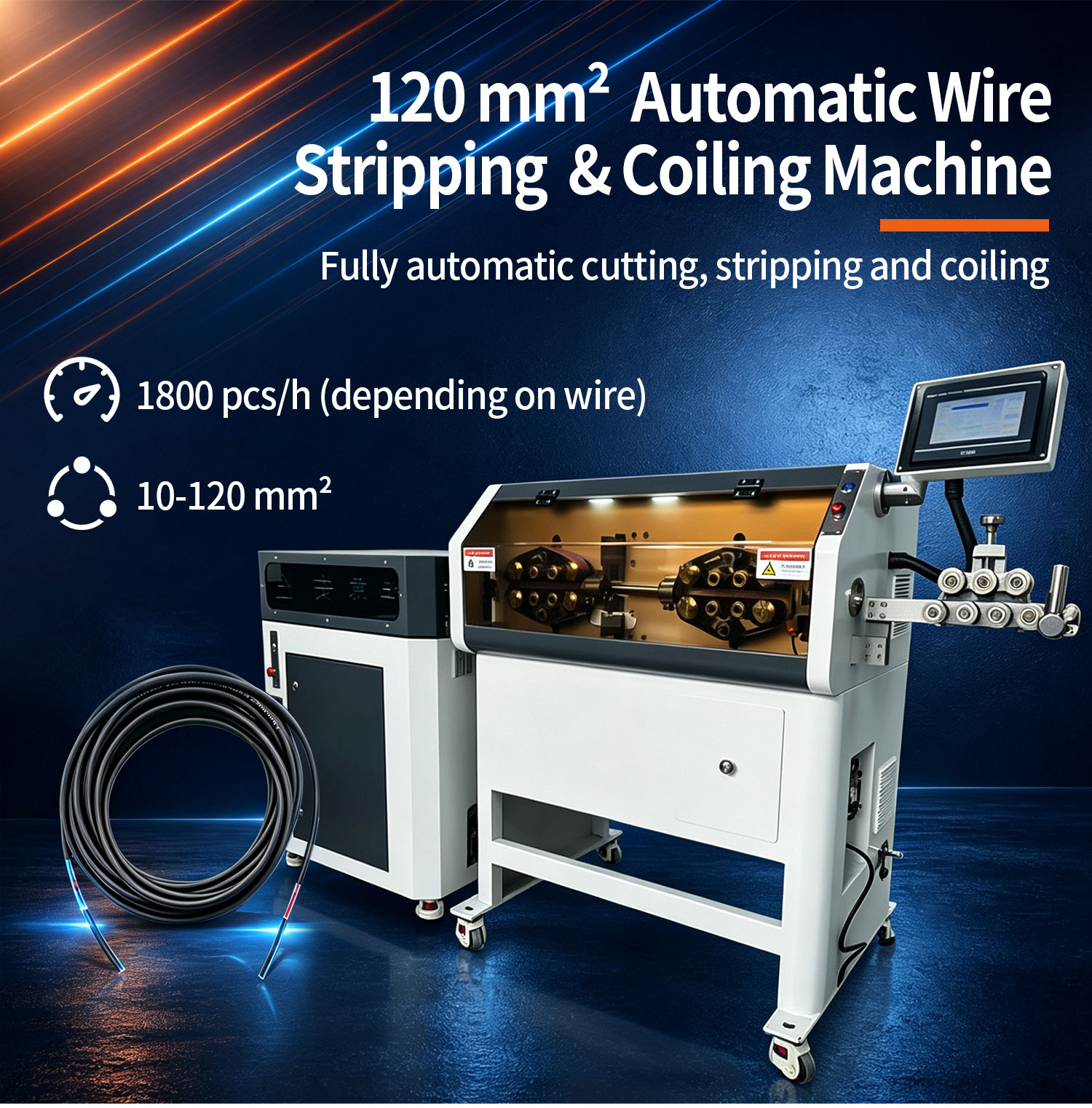

Click to zoomTR-8120 Automatic Wire Stripping & Coiling Machine
Best for power cable and new-energy cable, 10-120 mm2. Wire range 10-120 mm² (AWG 8-0000); up to 1,800 pcs/h; strip length Front 1–800 mm / Tail 1–400 mm.
- Wide stripping range 10–120 mm² — power cable, PVC sheathed and new-energy wires
- Integrated cutting, stripping & auto-coiling — up to 1,800 pcs/h
- Belt-type 32-wheel damage-free feeding — no indentations on wire surface
Highlights
Wide range 10-120 mm²
Power cable, PVC sheathed and new-energy wires — one machine.

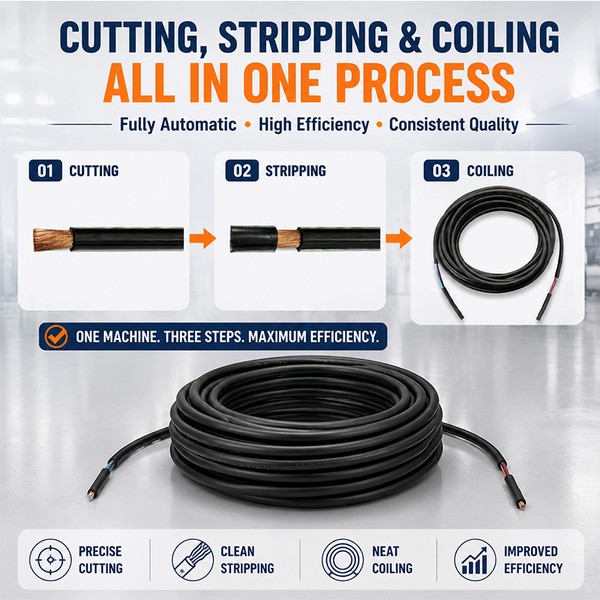

Cut, strip & coil in one pass
Integrated line up to 1,800 pcs/h instead of separate stations.
Damage-free belt feeding
32-wheel belt drive leaves no indentations on the wire surface.
Tolerance ≤0.002×L
HSS blades hold cut length accuracy for heavy-duty cable.
Watch TR-8120 on Your Wire Type
We will send you a short run-test video of this model — real machine, real production. Most videos within 24 h.

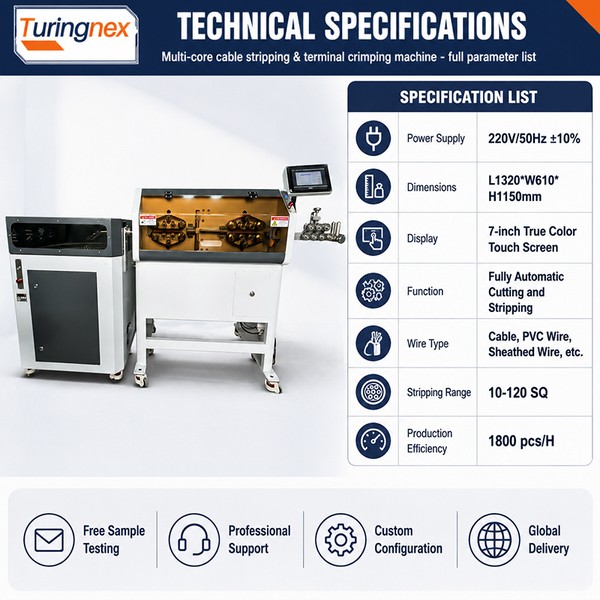

Full Specifications
Technical Data
| Model | TR-8120 |
| Wire Range | 10-120 mm² (AWG 8-0000) |
| Strip Length | Front 1–800 mm / Tail 1–400 mm |
| Cut Length | 1–99999.99 mm |
| Cut Tolerance | ≤0.002×L |
| Power | 5.5 kW |
| Size | 1320×610×1150 mm |
| Feeding | 32-wheel belt drive, no wire marks |
| Voltage | 220V/50Hz ±10% |
| Capacity | Up to 1,800 pcs/h |
| Terminal compatibility | Power cable / PVC sheathed wire / new-energy cable |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.

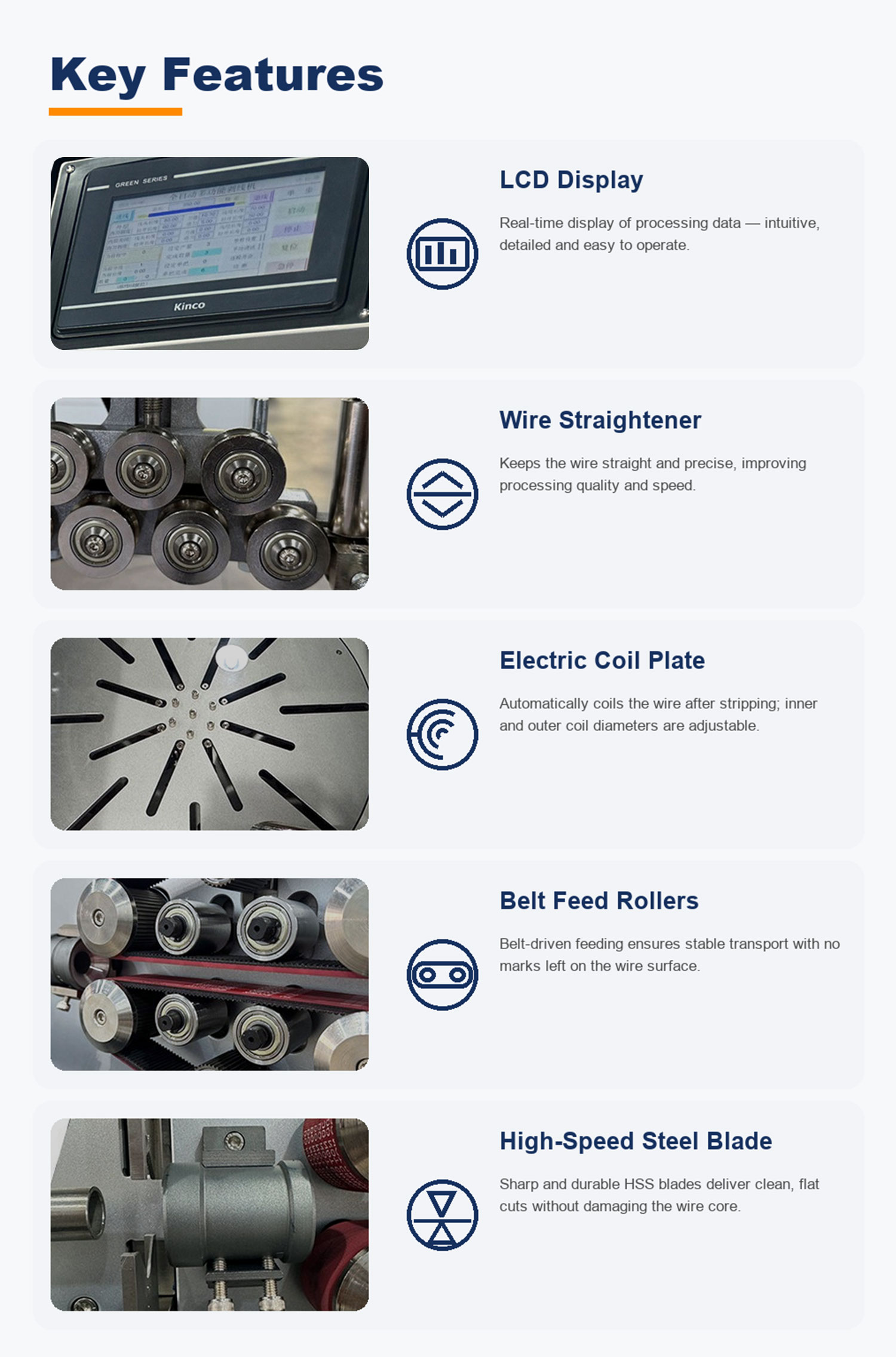

Features & Details
- Wide stripping range 10–120 mm² — power cable, PVC sheathed and new-energy wires
- Integrated cutting, stripping & auto-coiling — up to 1,800 pcs/h
- Belt-type 32-wheel damage-free feeding — no indentations on wire surface
- Cutting tolerance ≤0.002×L; adjustable strip 1–800 mm (head) / 1–400 mm (tail)
- Imported HSS blades for heavy-duty thick-cable cutting

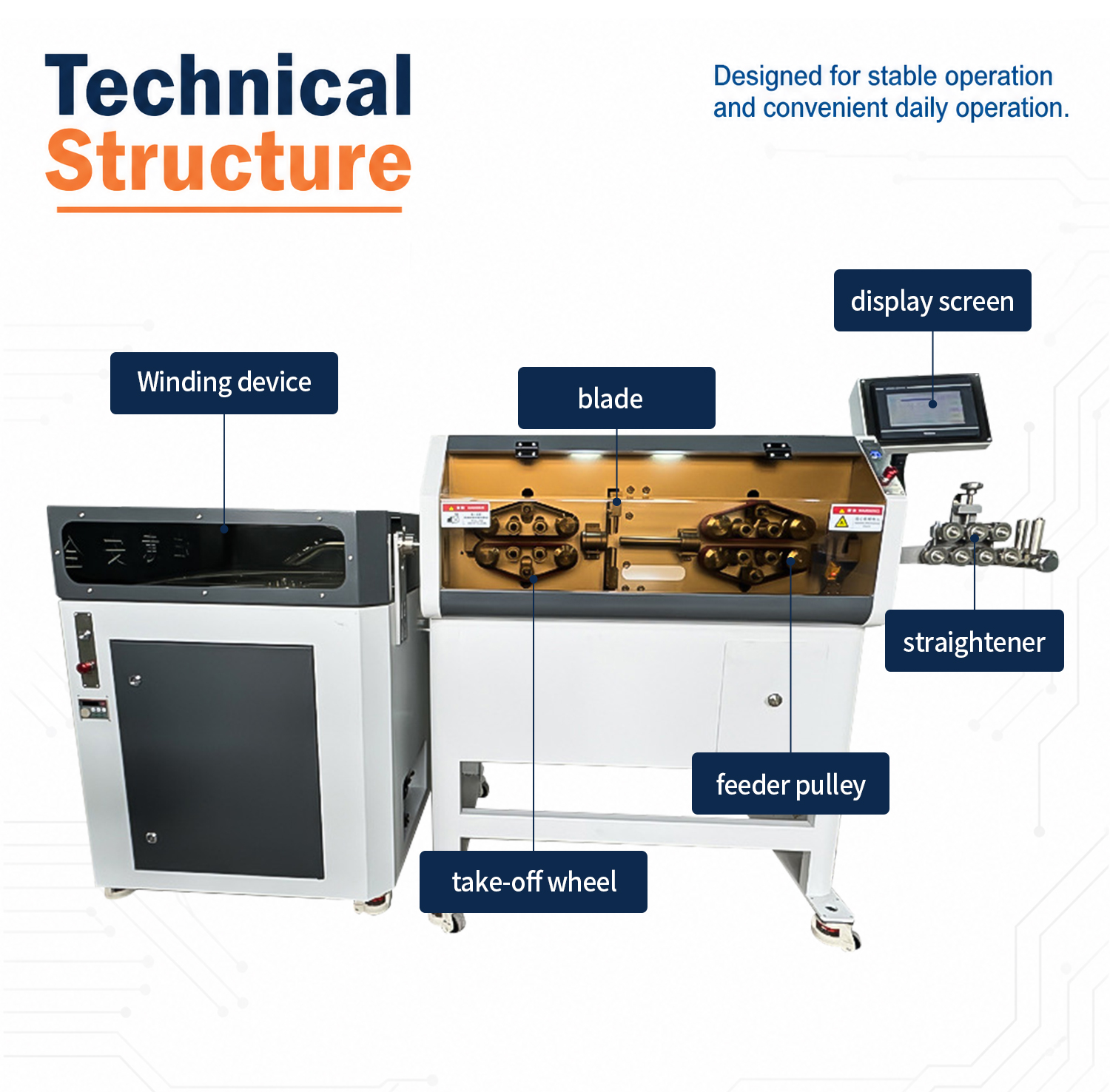

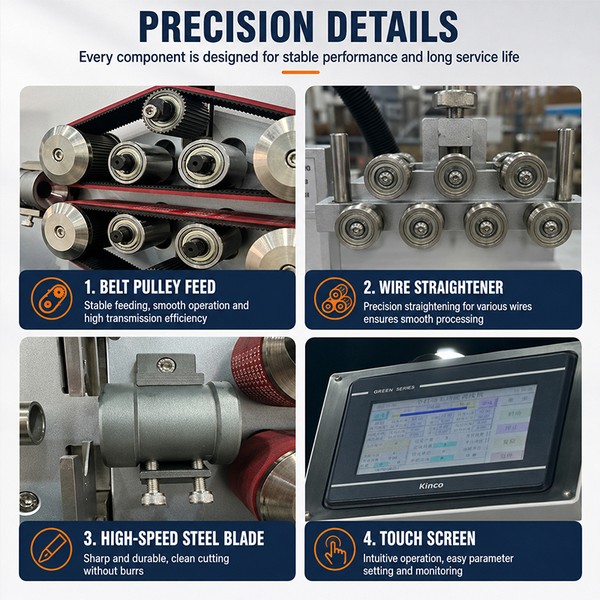

- 7-inch smart touch control, full servo drive, built-in straightener & coiling structure
Services Around the Machine

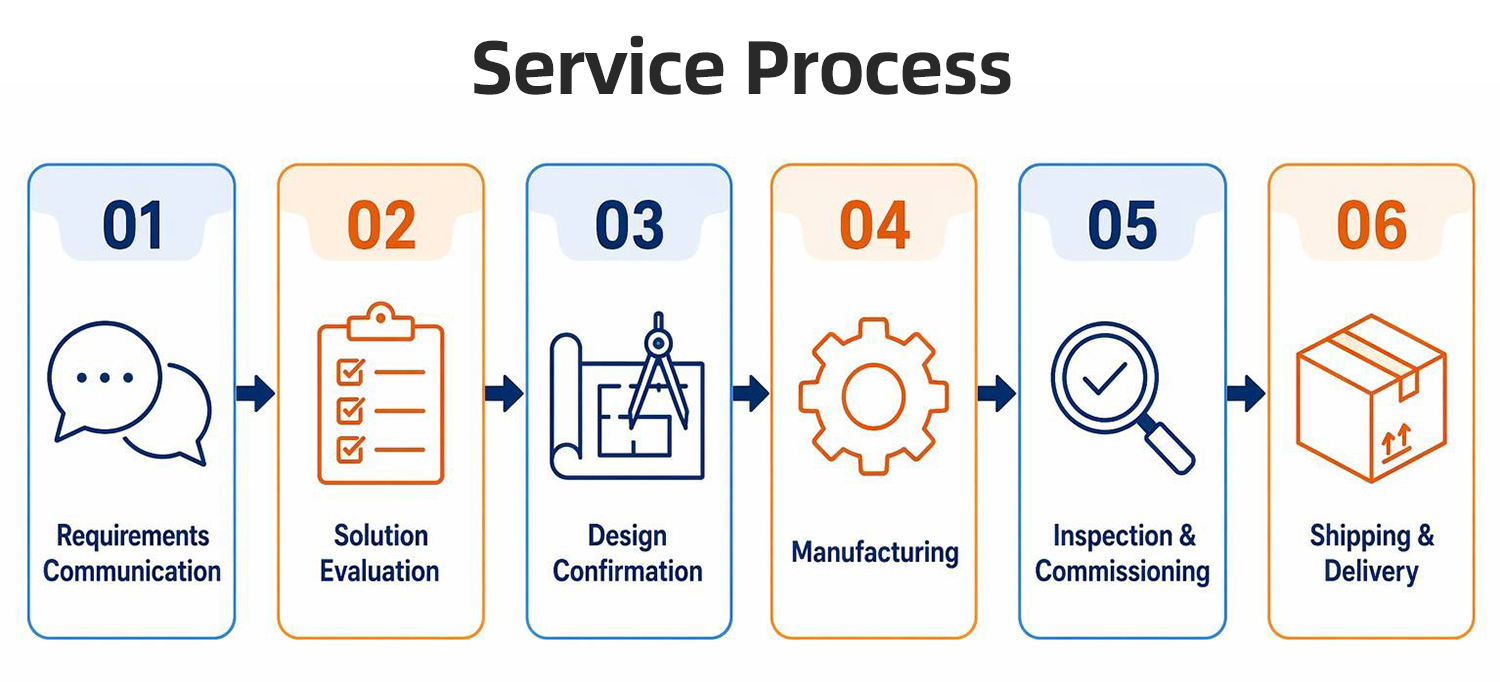

From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
Datasheet
Full specifications in one page — parameters, power, delivery terms.
Download TR-8120 Datasheet (PDF)Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: Standard models in stock; customised machines 7–15 days
Request a TestProcessing Capabilities

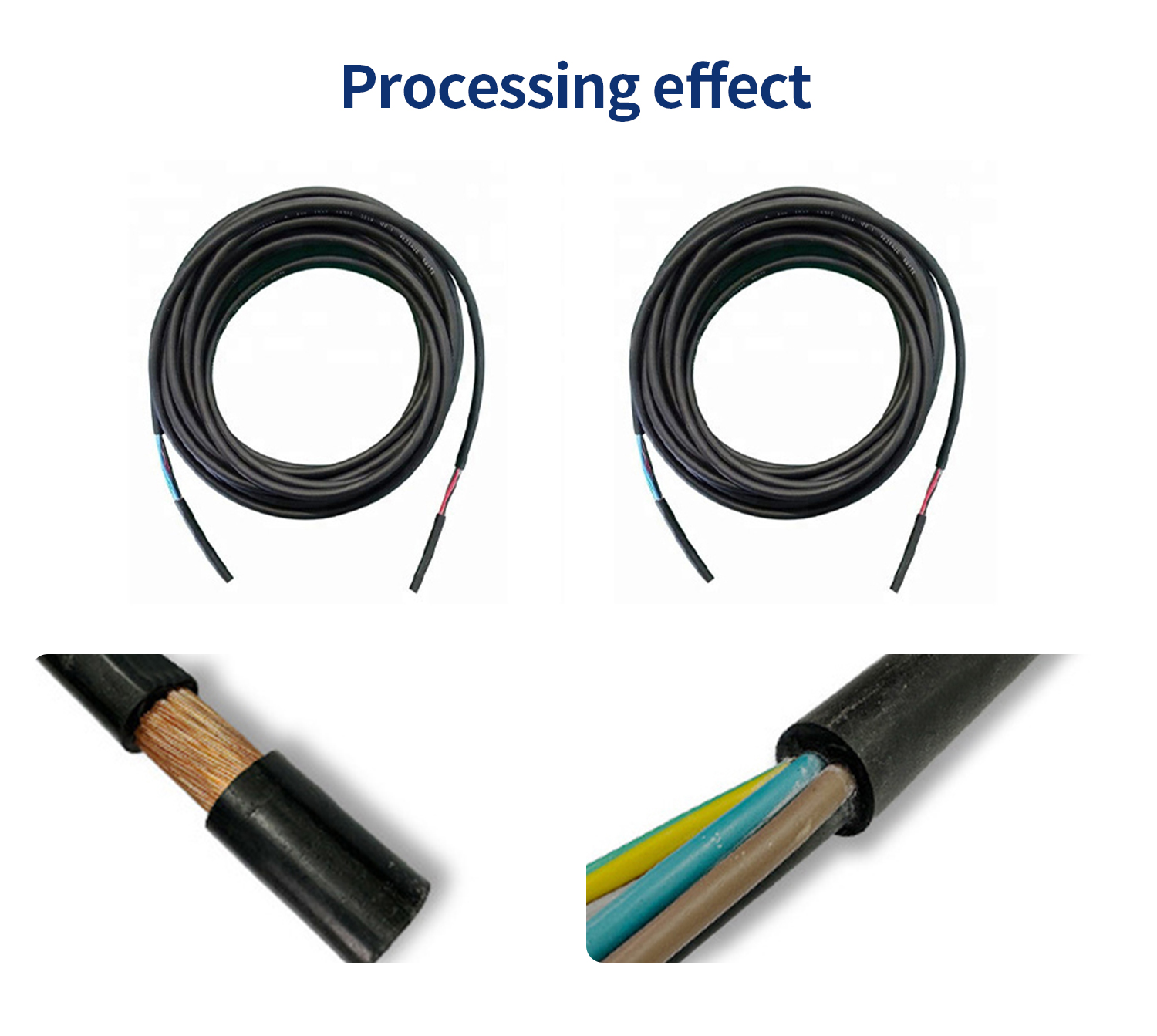

TR-8120 in Production
Applications
Used in automotive wire harness, appliance wiring and cable assembly lines where repeatable quality decides downstream yield.
Process Detail
Servo-driven motion holds the set parameters cycle after cycle, so the output stays inside spec across a full shift rather than only at setup.
Quality Control
Every machine is run in and tested before shipment. A test video of your own material is provided on request.

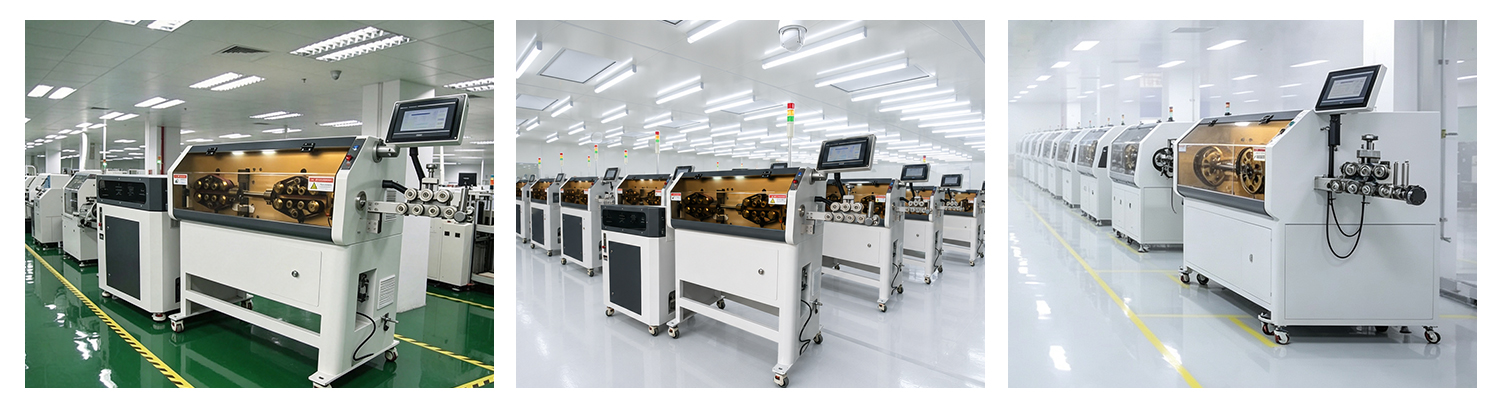

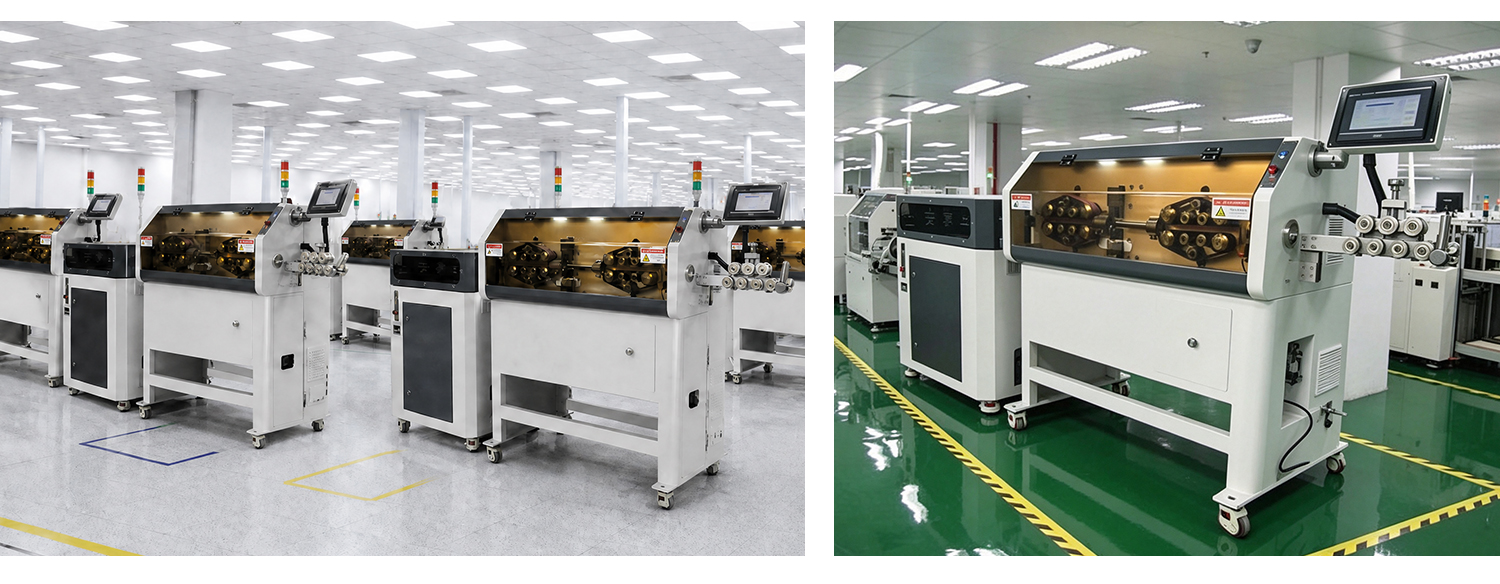

Workshop
Built in our Dongguan workshop with in-house assembly and QC.
Why Buy Direct From Turingnex
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
