Highlights

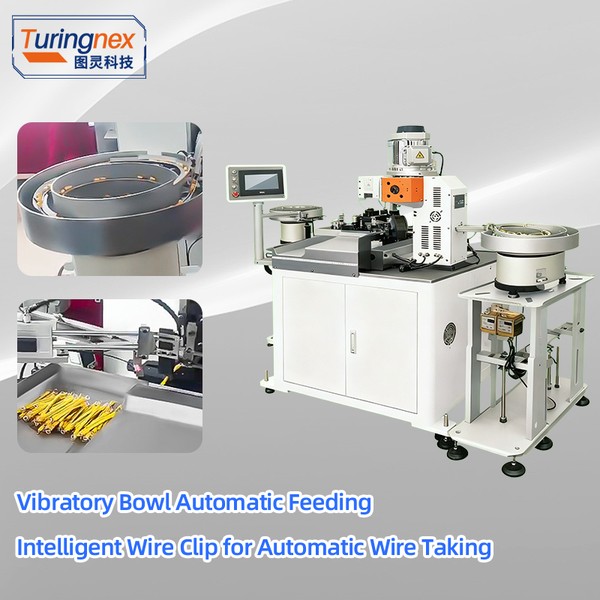

Zero-jamming tubular terminal feeding
Bulk feeding engineered for tubular terminals — up to 3,000 pcs/h without feeding faults.
Mitsubishi / Xinje 6-servo precision
Ball-screw driven axes hold tight positions across a full shift.
2T crimping capacity
Covers AWG#12-24 with selectable crimp height on the touch panel.
Auto defect detection
Machine stops bad parts instantly instead of letting them flow downstream.

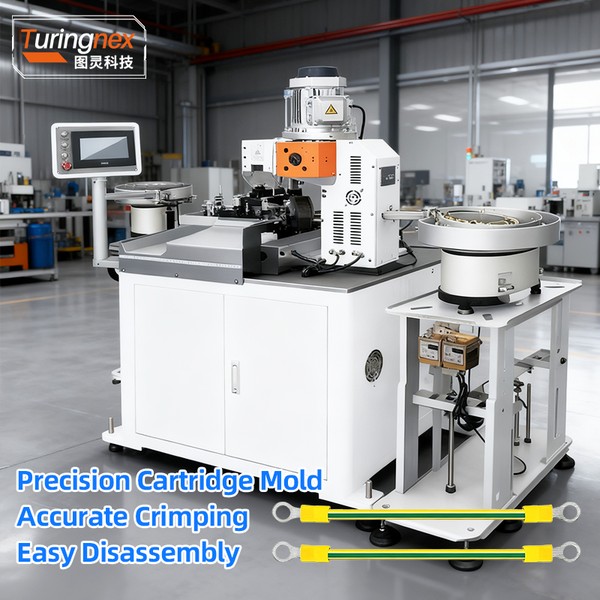

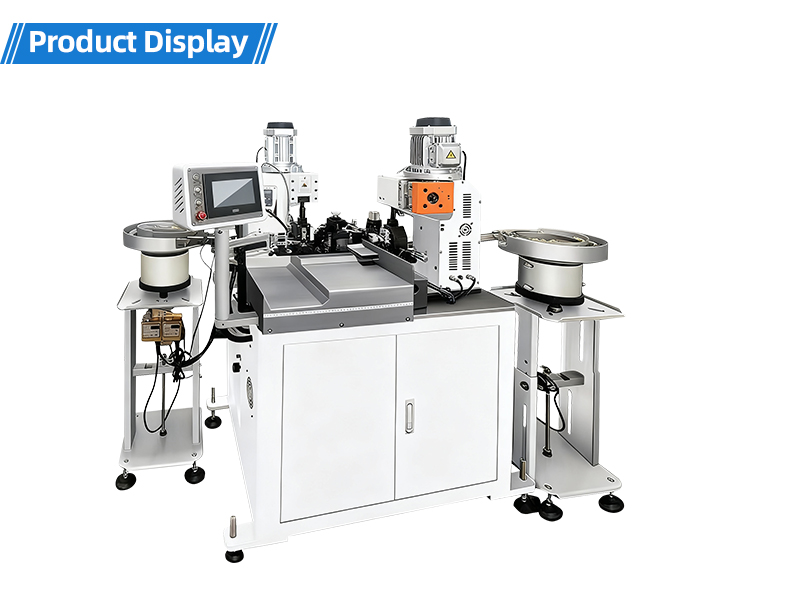

TR-SZ03 in Operation
Full Specifications

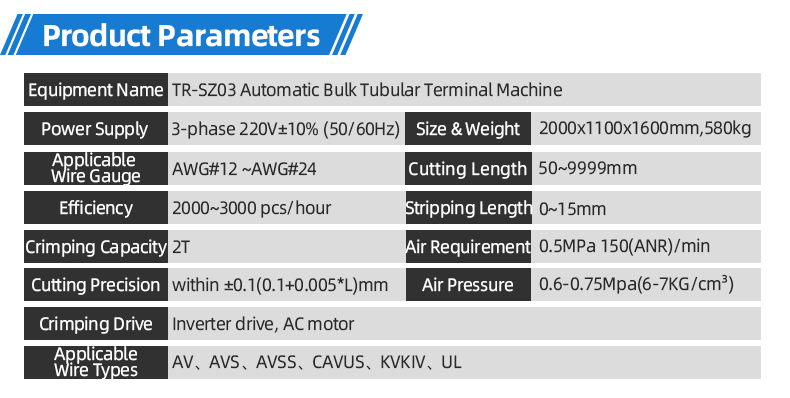

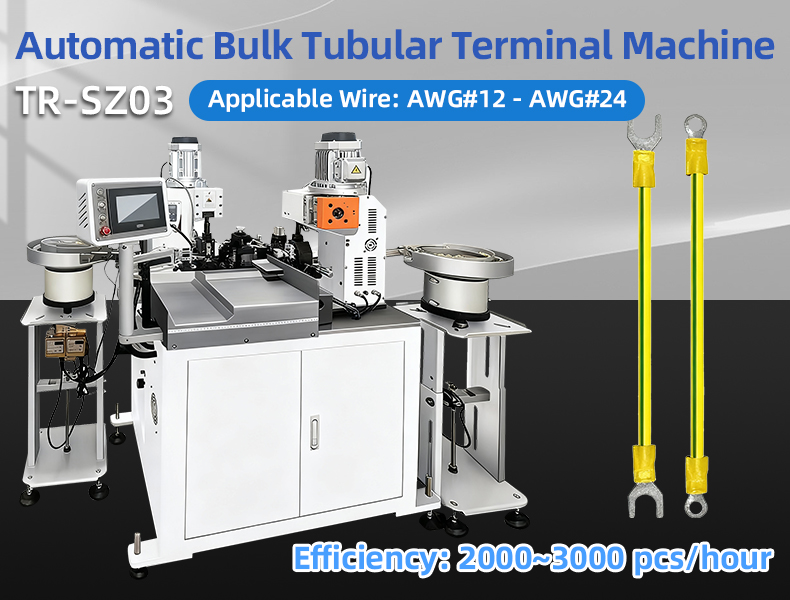

Technical Data
| Model | TR-SZ03 |
| Wire Range | AWG#12 ~ AWG#24 |
| Cut Length | 50-9999 mm |
| Strip Length | 0-15 mm |
| Crimping Force | 2T |
| Capacity | 2000-3000 pcs/h |
| Cut Precision | ±0.1 (0.1+0.005×L) mm |
| Power Supply | 3-phase 220V±10% (50/60Hz) |
| Air Pressure | 0.5-0.75 MPa |
| Dimensions | 2000×1100×1600 mm, 580 kg |
| Wire Types | AV / AVS / AVSS / CAVUS / KVKIV / UL |
| Terminal compatibility | Tubular terminals, AV/AVS/AVSS/CAVUS/KVKIV/UL wire |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 unit |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.

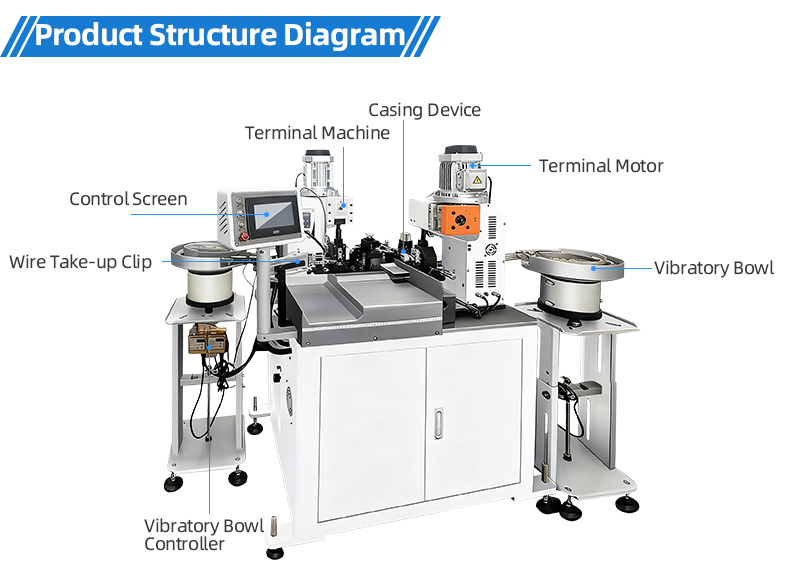

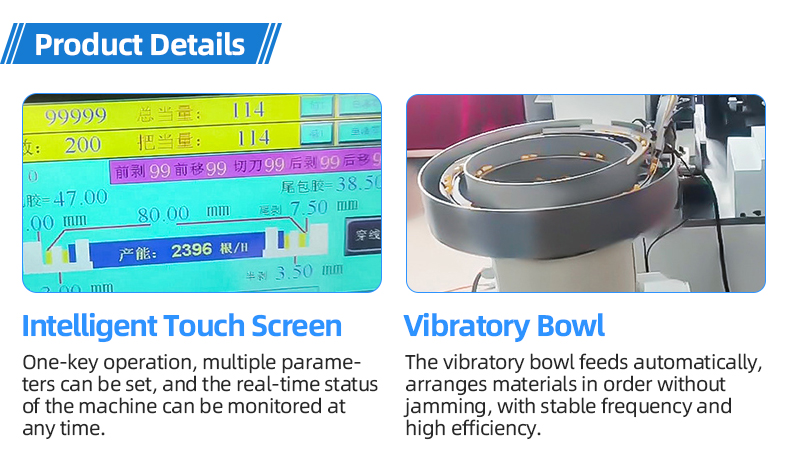

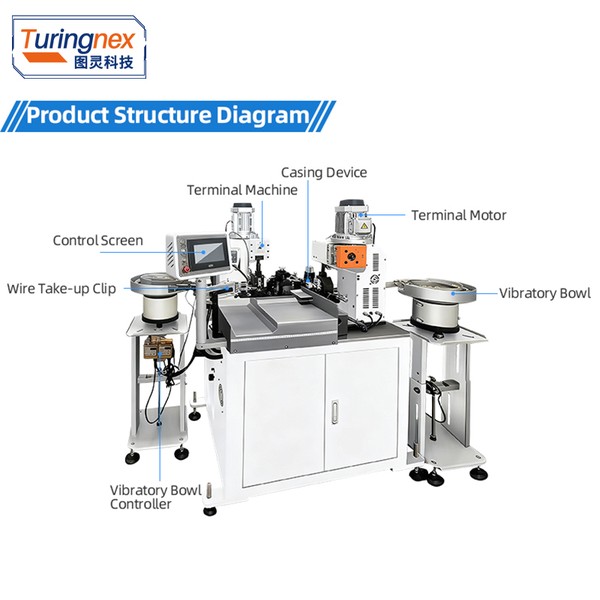

Features & Details

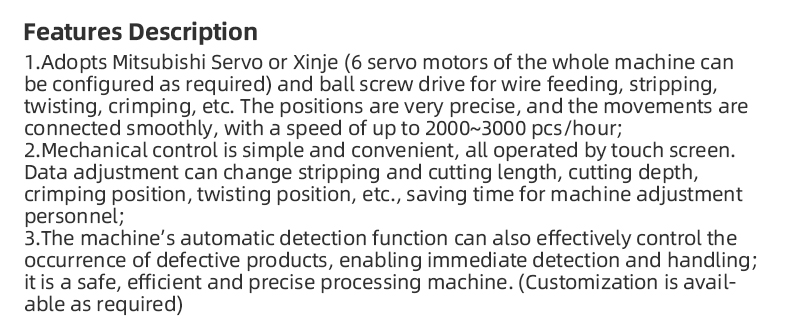

- 6-servo configuration (Mitsubishi or Xinje) with ball-screw drive for feeding, stripping, twisting and crimping
- Touch-screen control — adjust strip/cut length, crimp position and twist position on the fly
- Automatic defect detection stops bad parts immediately
Services Around the Machine
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
Datasheet
Full specifications in one page — parameters, power, delivery terms.
Download TR-SZ03 Datasheet (PDF)Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: Standard models in stock; customised machines 7–15 days, confirmed at quotation
Request a TestProcessing Capabilities
TR-SZ03 in Production

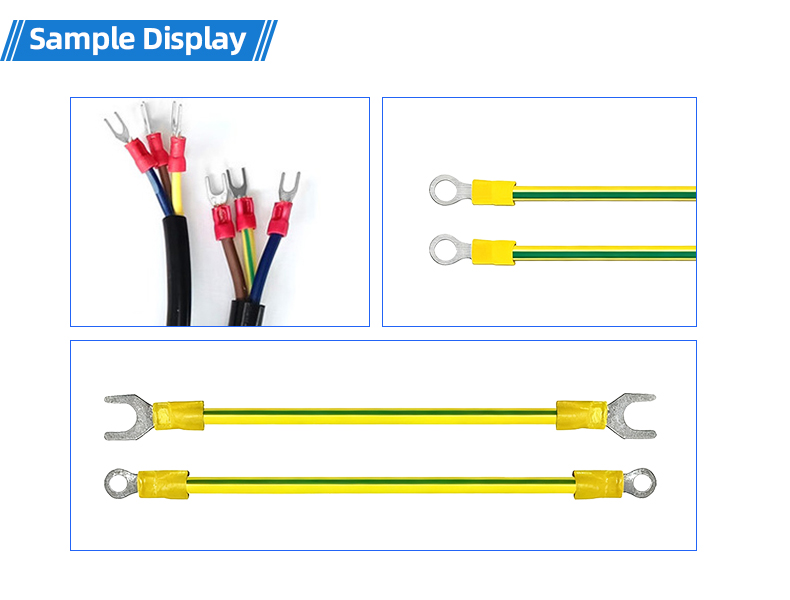

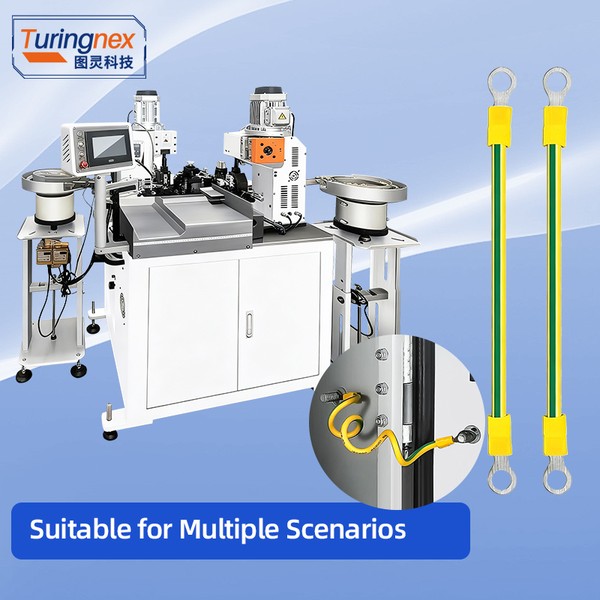

Applications

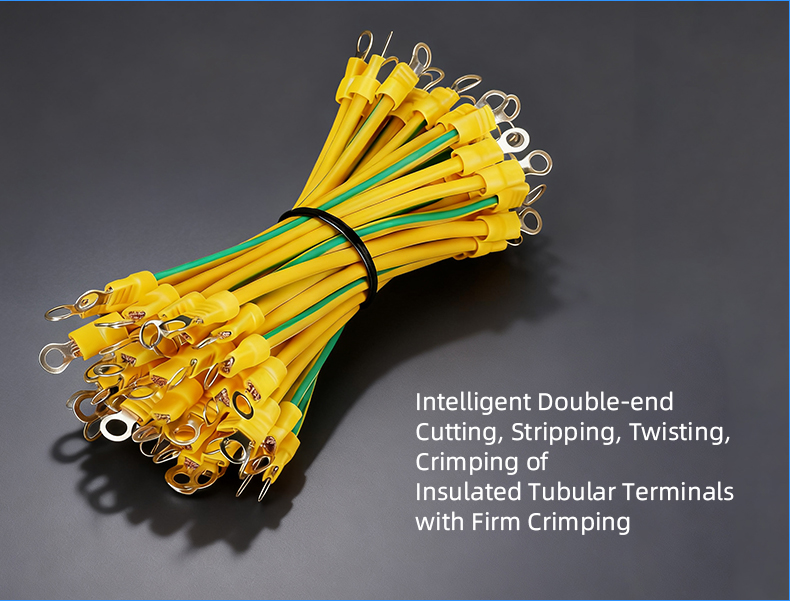

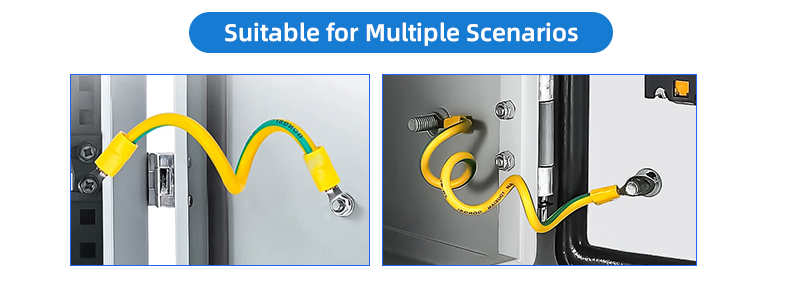

Built for bulk tubular (tube) terminals used in appliance, automotive and industrial harness lines.

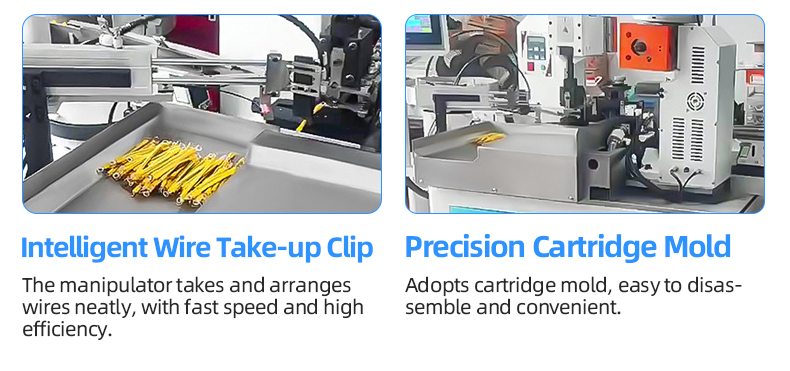

Process Detail
Wire feeding, stripping, twisting and crimping run on servo-driven axes with ball-screw accuracy.
Quality Control
Automatic defect detection rejects bad parts immediately; every machine is run-in tested before shipment.
Workshop
Assembled in our 3,000 ㎡ automatic crimping machine workshop in Dongguan.
Why Buy Direct From Turingnex
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
