Highlights
01
Categories

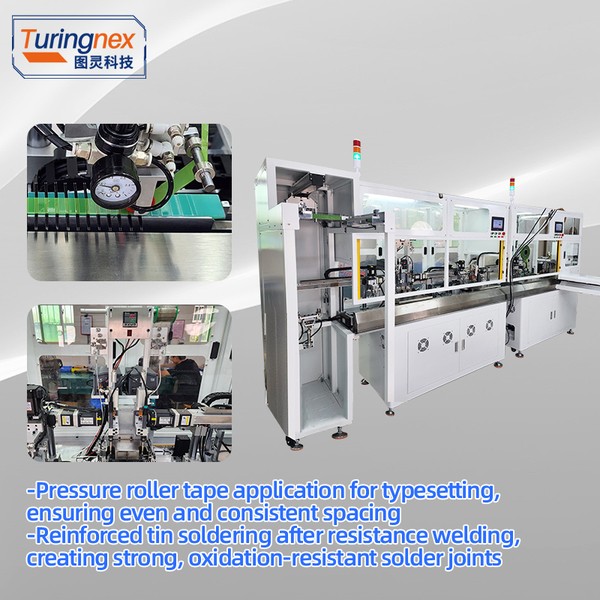

NTC Resistor Arranging & Welding Machine
02
Brand
Turing
03
Model
TR-GY01
04
Power
AC220V 50/60Hz 20A
Machine Video
TR-GY01 in Operation

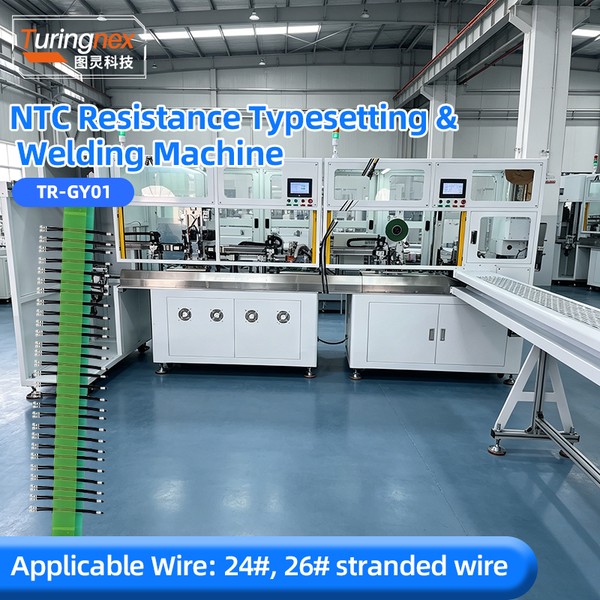

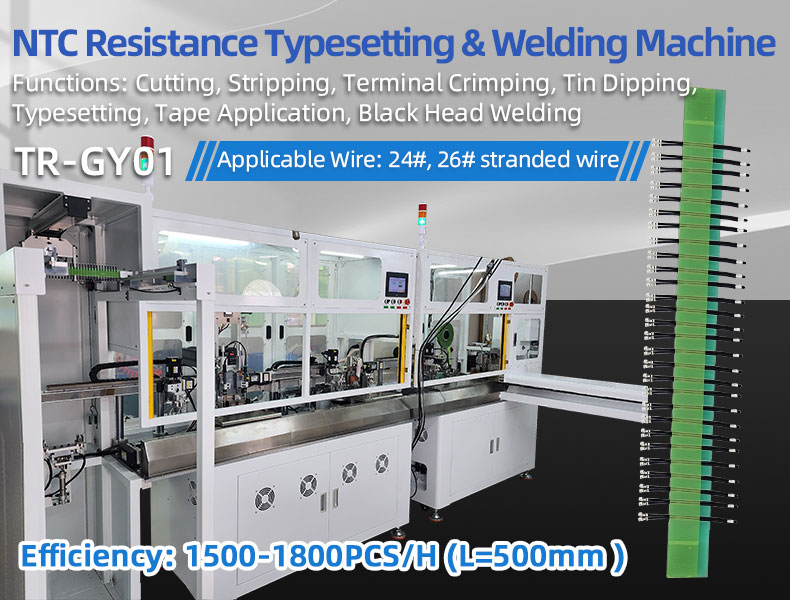

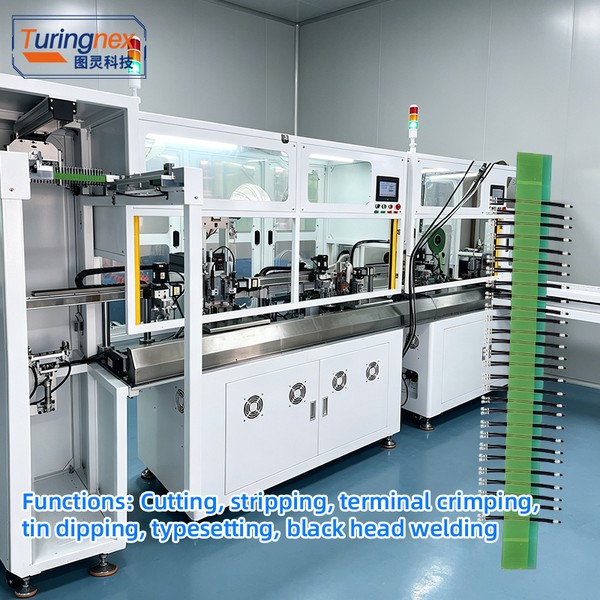

TR-GY01 NTC Resistance Typesetting & Welding Machine in operation
Full Specifications

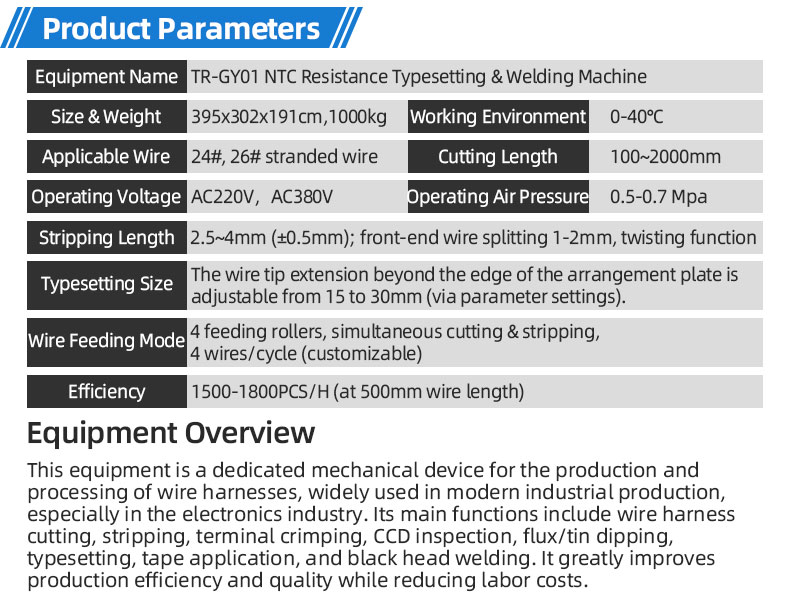

Technical Data
| Model | TR-GY01 |
| Power | AC220V 50/60Hz 20A |
| Application | wire cutting, stripping, terminal crimping,Tin Dipping, Typesetting |
| Compressed-air | 0.5-0.7 MPa |
| Contact | Coco : +86 18666170785 |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- Dimensions & Weight：395x302x191cm, 1000kg
- Stripping Length：2.5~4mm (±0.5mm); front-end wire splitting 1-2mm, twisting function (optional)

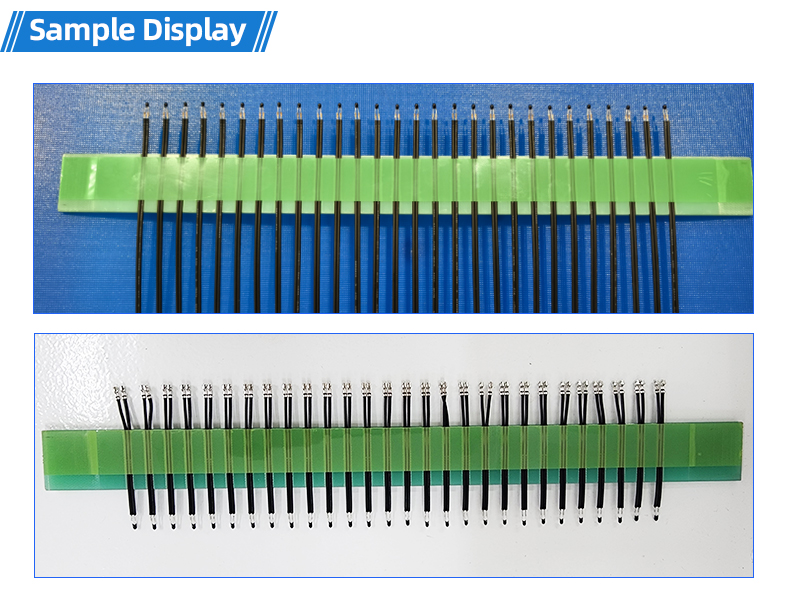

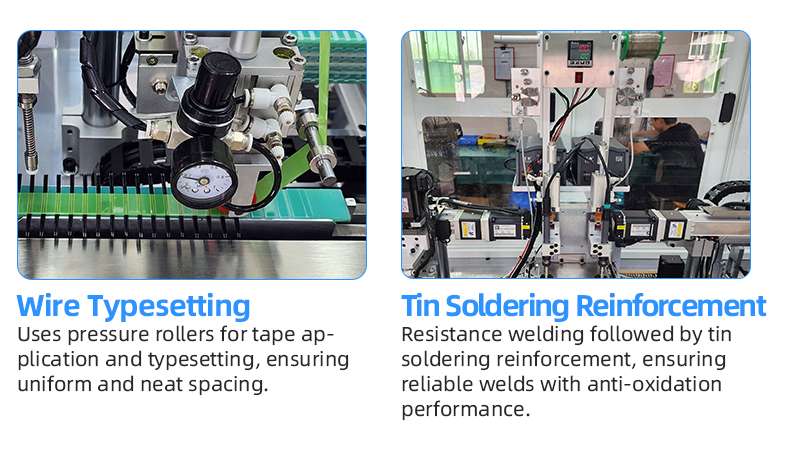

- Typesetting Size：The wire tip extension beyond the edge of the arrangement plate is adjustable from 15 to 30mm (via parameter settings).

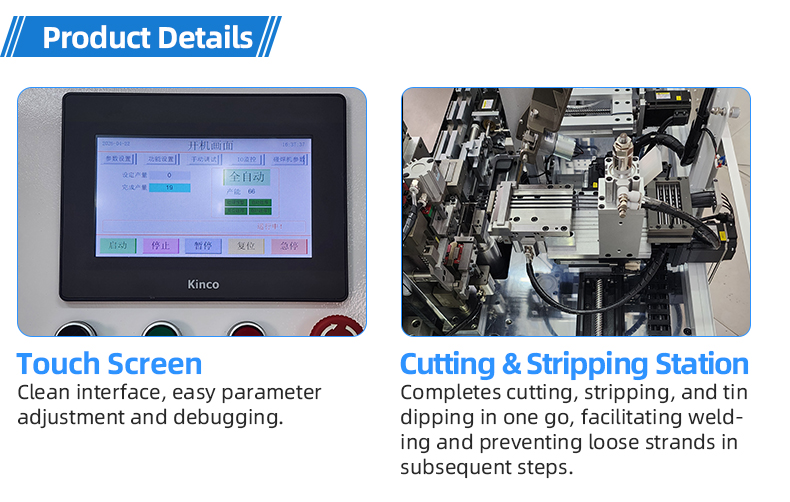

- Wire Feeding Mode：3 feeding rollers, simultaneous cutting & stripping, 3 wires per cycle (customizable)
- Production Efficiency：1500-1800PCS/H (at 500mm wire length)

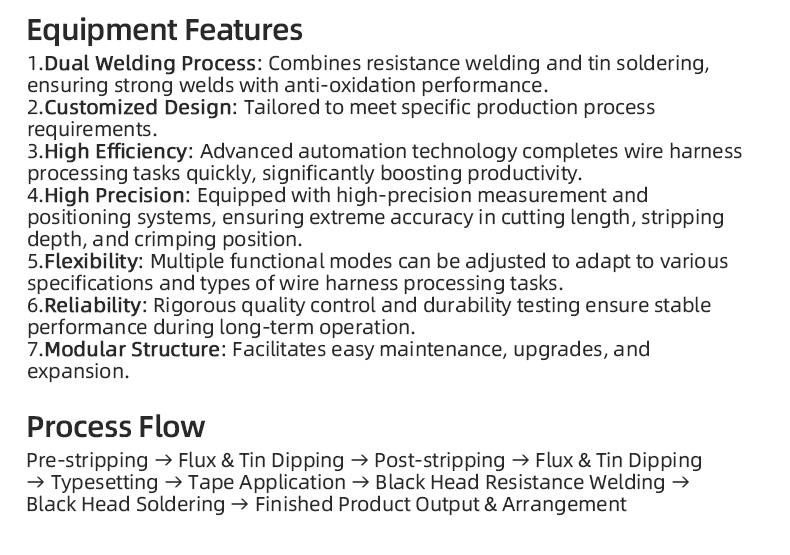

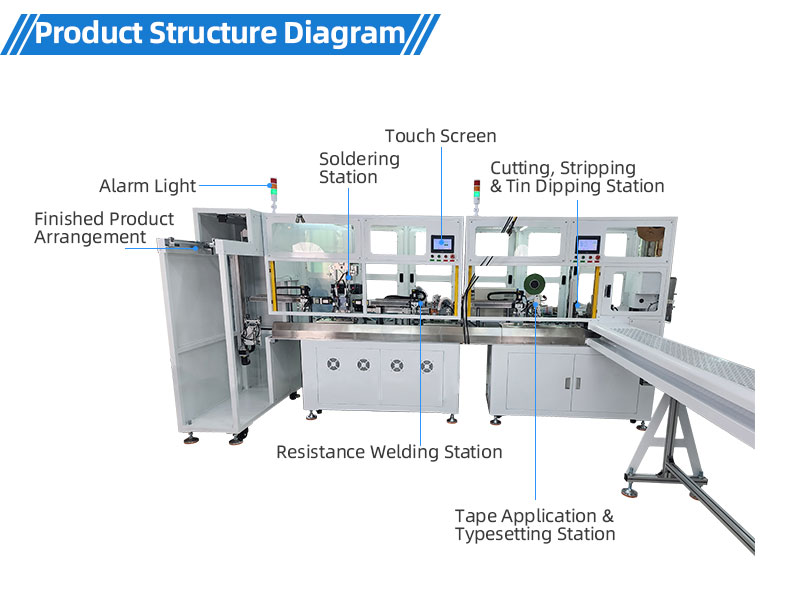

- This equipment is a dedicated mechanical device for the production and processing of wire harnesses, widely used in modern industrial production, especially in the electronics industry. Its main functions include wire harness cutting, stripping, terminal crimping, CCD inspection, flux/tin dipping, typesetting, tape application, and black head welding. It greatly improves production efficiency and quality while reducing labor costs.
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Datasheet
Full specifications in one page — parameters, power, delivery terms.
Download TR-GY01 Datasheet (PDF)Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries

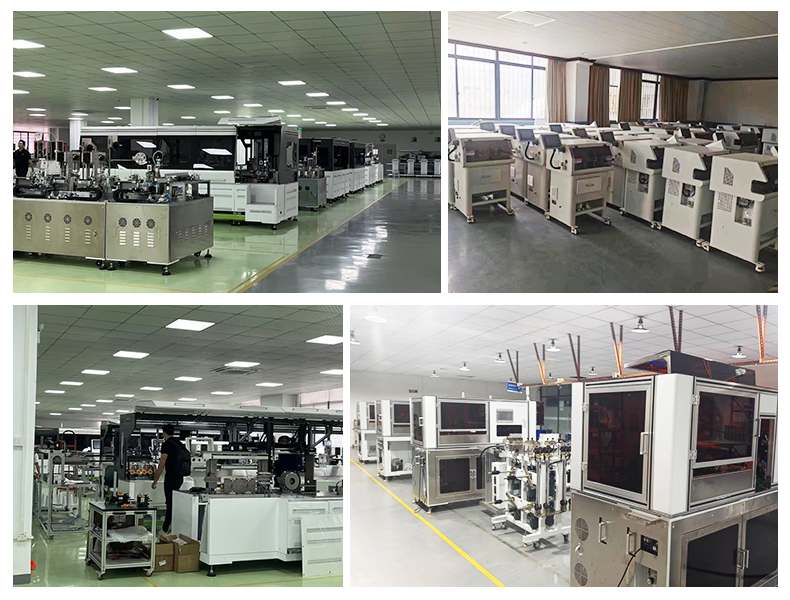

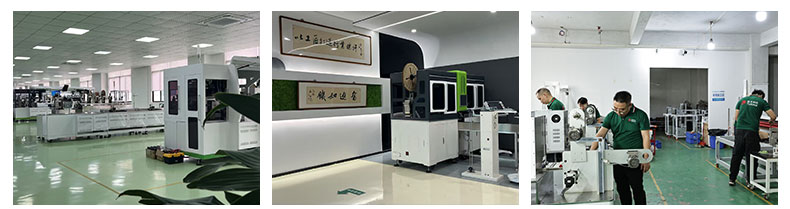

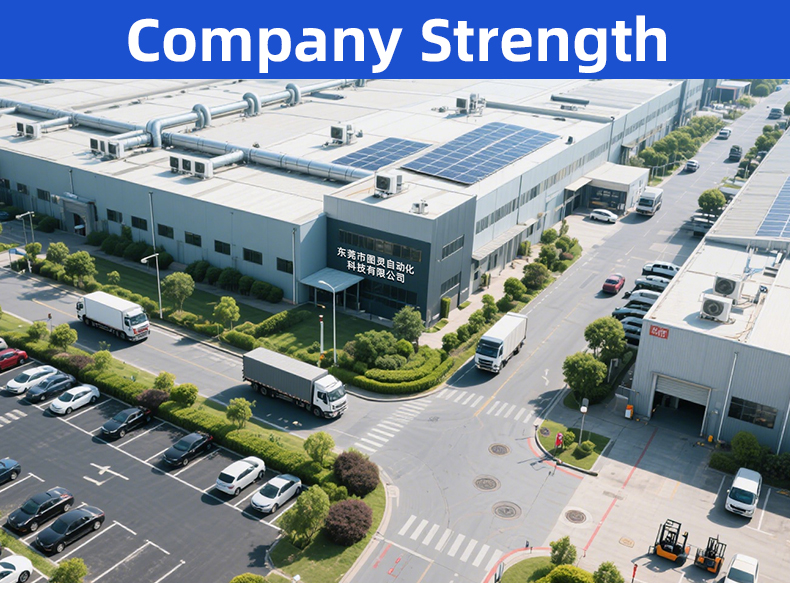

20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-GY01 — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
