Highlights
Zero Manual Tie Loading
Strip-fed linked ties are cut and delivered straight to the gun — no manual tie loading between bundles.
Uniform Tightness on Every Bundle
PLC + touchscreen control of tie tightness and tail length — stable, repeatable results run after run.
Faster Bundles: Auto Lock & Trim
Automatic threading, locking and optional tie cutting save time on every bundle.
Fits Any Harness Workcell
70 kg bench footprint slots into any automotive or appliance harness workcell.
TR-LD200 in Operation

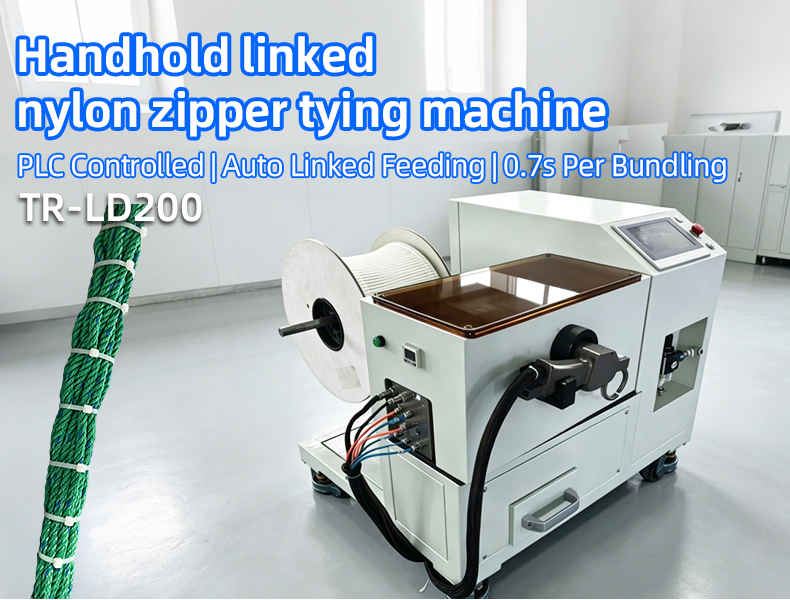

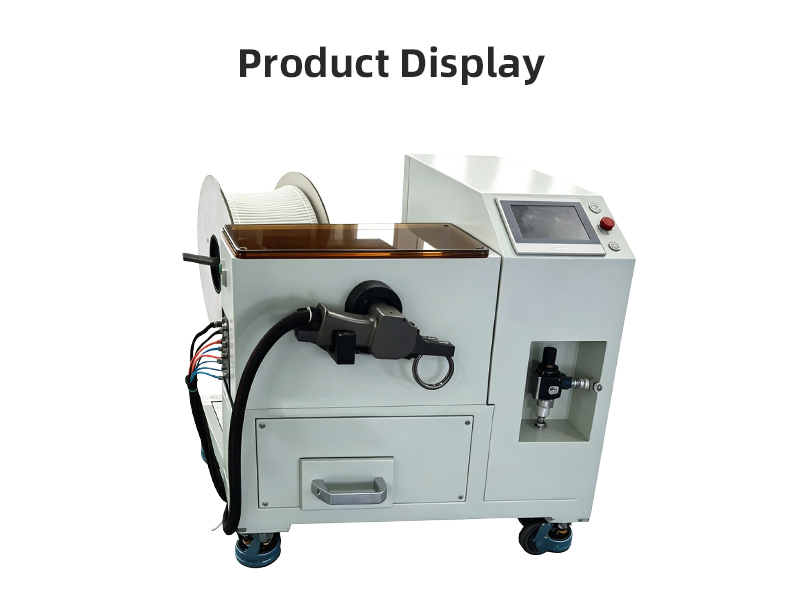

【TR-LD200】 Handheld Continuous Nylon Cable Tie Machine
Full Specifications

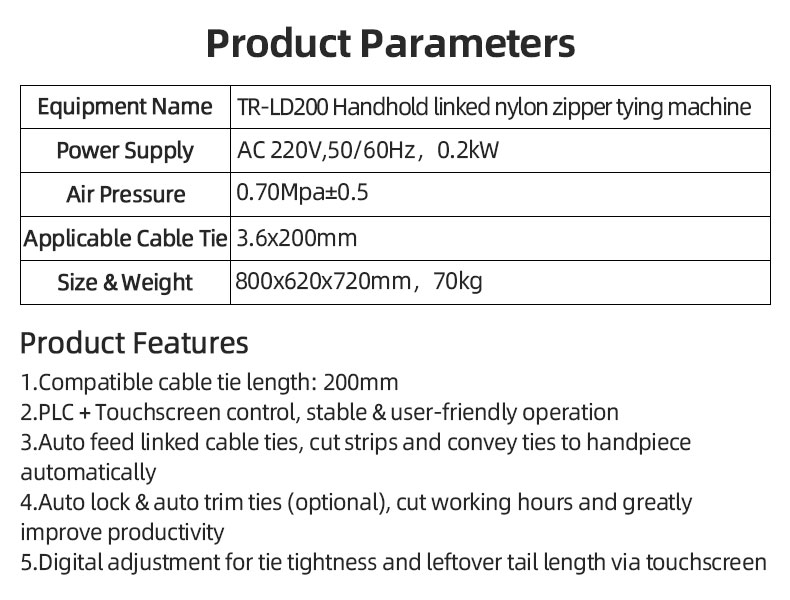

Technical Data
| Model | TR-LD200 |
| Voltage | AC 220V, 50/60Hz |
| Power | 0.2 kW |
| Air Pressure | 0.70 Mpa ± 0.05 |
| Tie Size | 3.6 x 200 mm |
| Size | 800 x 620 x 720 mm |
| Weight | 70 kg |
| Terminal compatibility | 3.6 x 200 mm linked nylon cable ties |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details

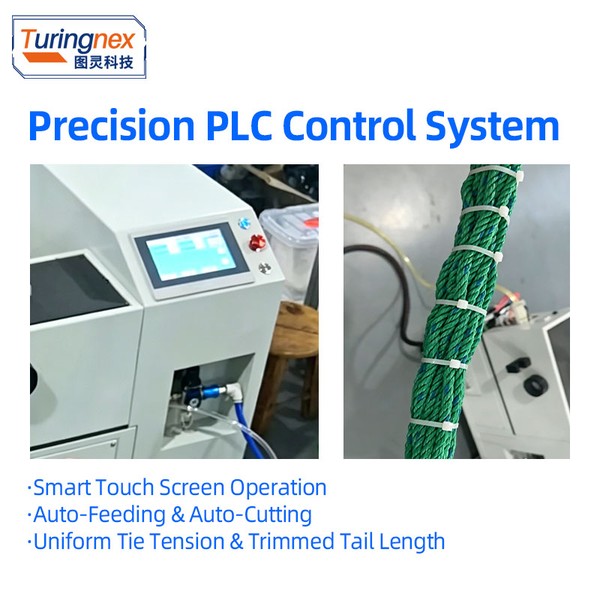

- PLC control with touchscreen — simple, stable and efficient

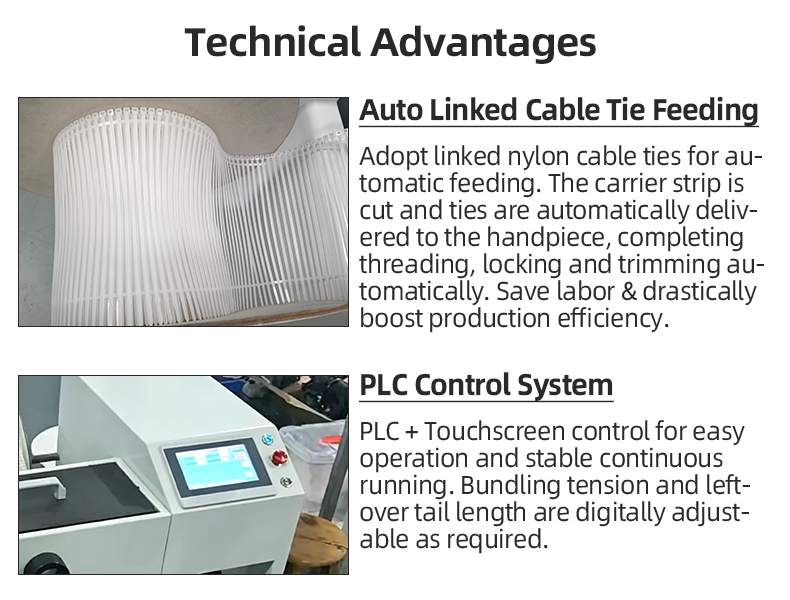

- Auto feeds linked ties, cuts the strip and delivers to the tying gun
- Auto threading & locking, auto tie cutting on request
- Tie tightness and tail length set digitally on the touchscreen
Services Around the Machine
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
Datasheet
Full specifications in one page — parameters, power, delivery terms.
Download TR-LD200 Datasheet (PDF)Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: Standard models in stock; customised machines 7–15 days
Request a TestProcessing Capabilities
TR-LD200 in Production
Applications

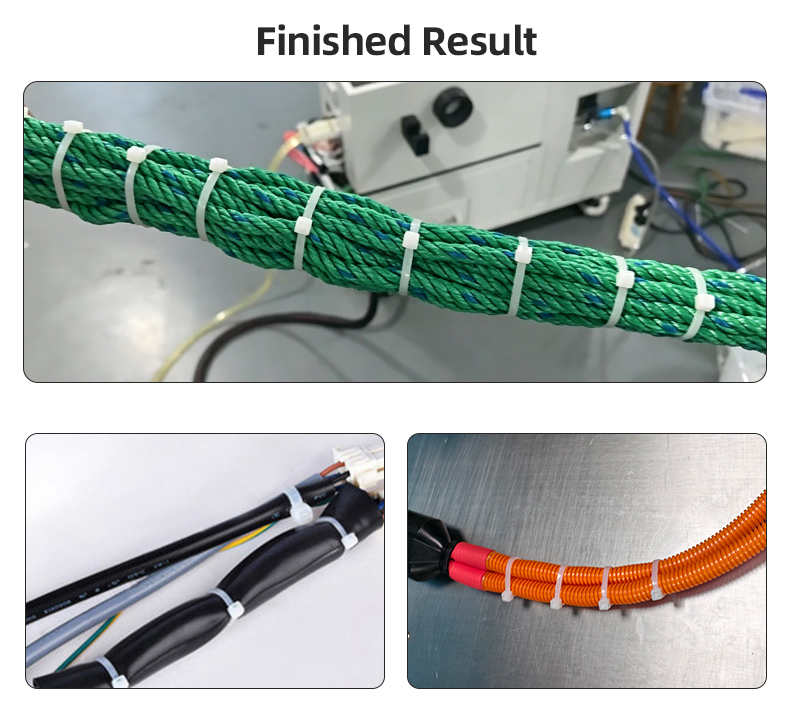

Used for fast, consistent bundling of automotive harnesses, appliance wiring and cable assemblies where tie tightness must be uniform across long runs.
Process Detail

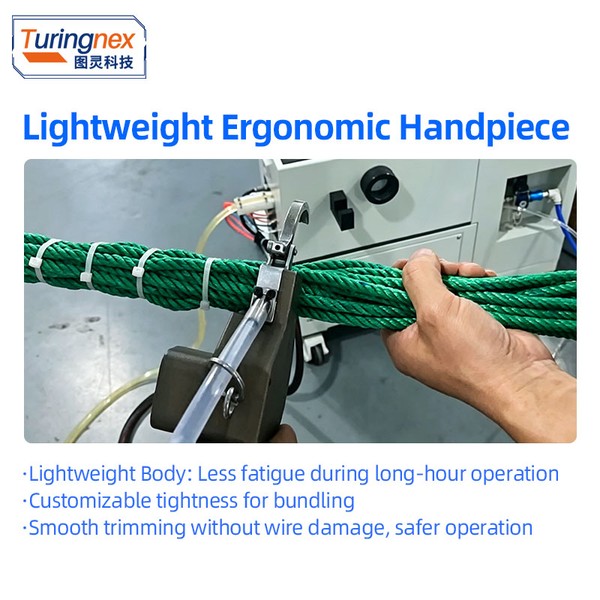

Linked ties are fed automatically from the strip, cut to length and delivered to the handheld gun — the operator positions, the machine ties.
Quality Control
Every machine is run in and tested before shipment. A test video on your own material is provided on request.
Workshop

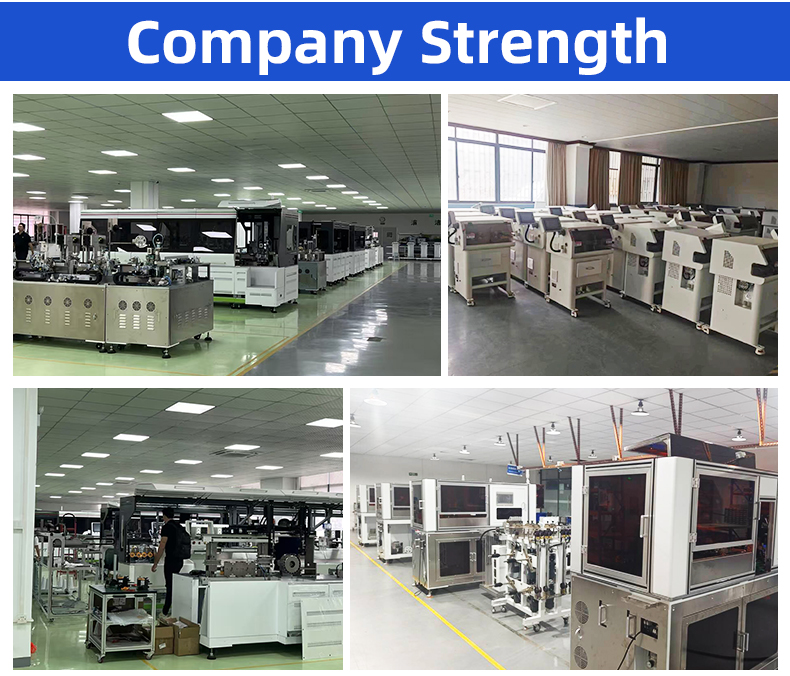

Built in our Dongguan workshop with in-house assembly and QC.
Why Buy Direct From Turingnex
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
