Highlights
01
Categories
Computer Wire Stripping Machine
02
Brand
Turing
03
Model
TR-880A
04
Power
AC220V/50HZ,
Machine Video
TR-880A in Operation

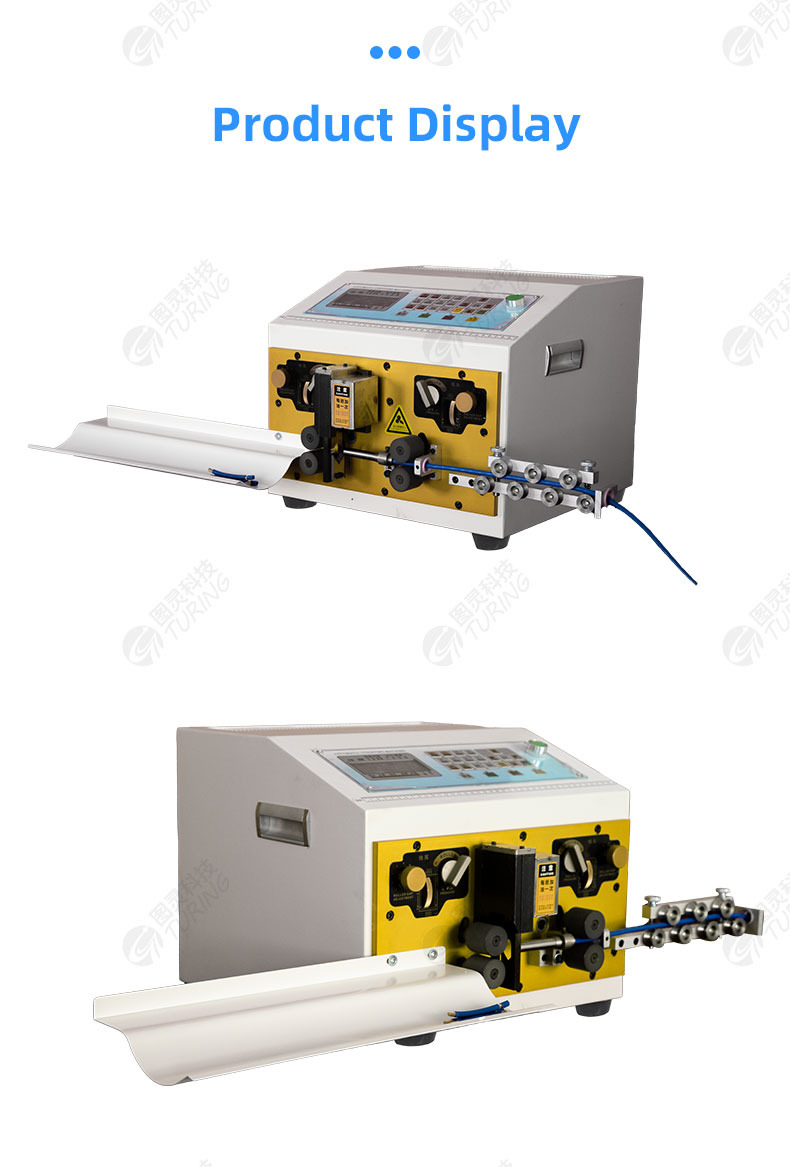

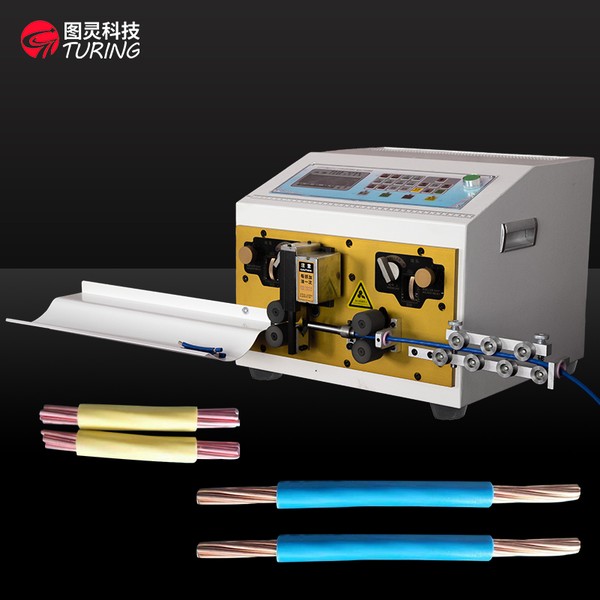

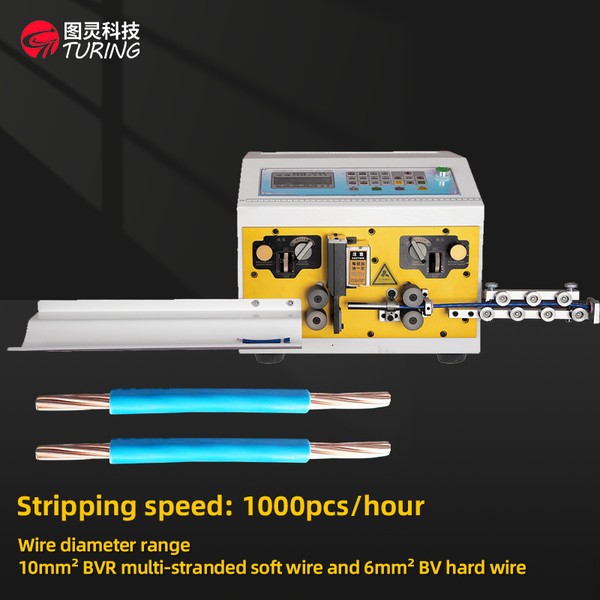

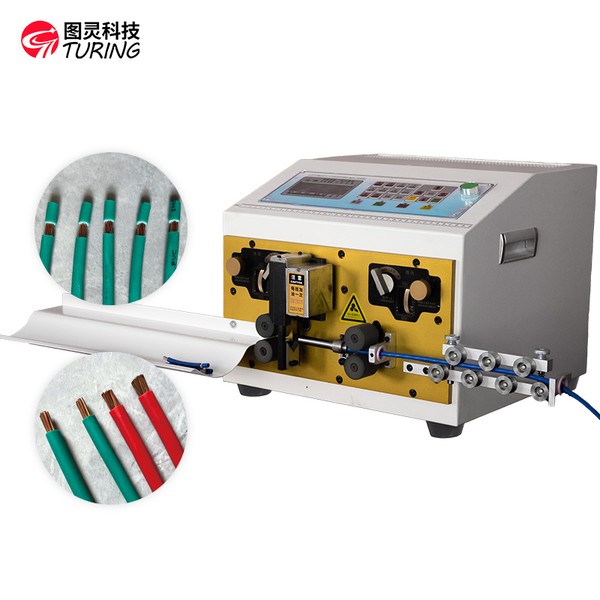

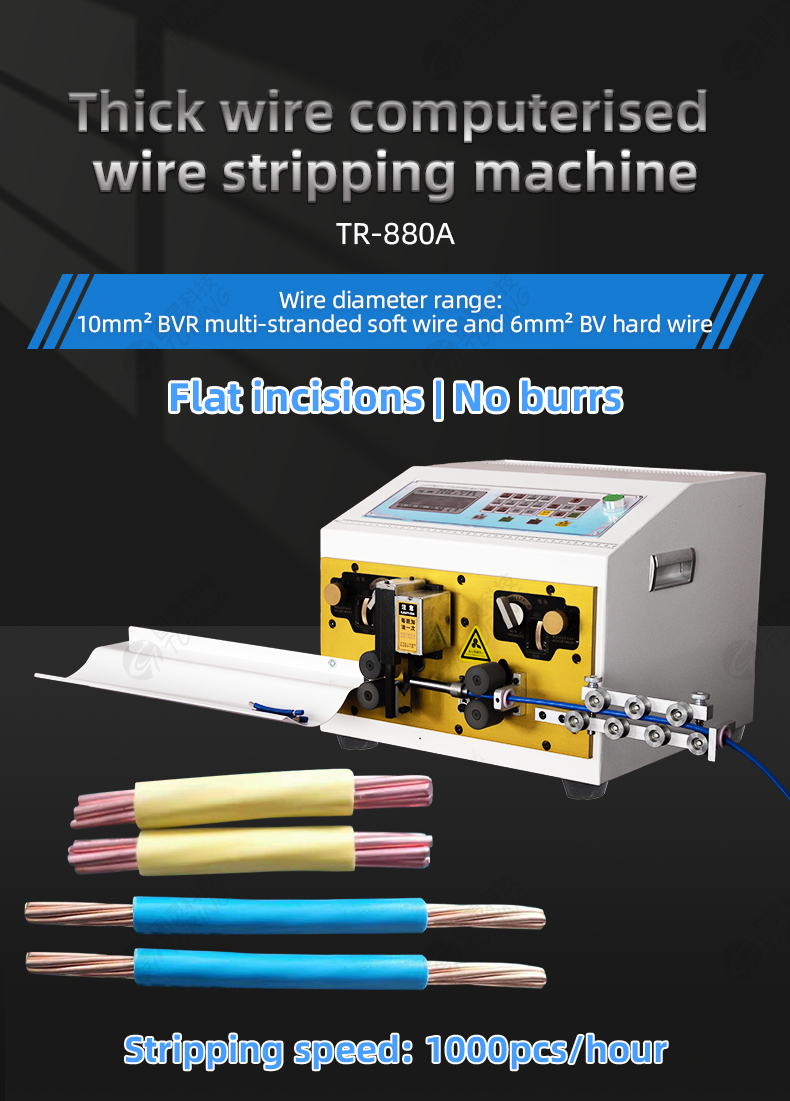

TR-880A Thick Wire Computerised Wire Stripping Machine in operation

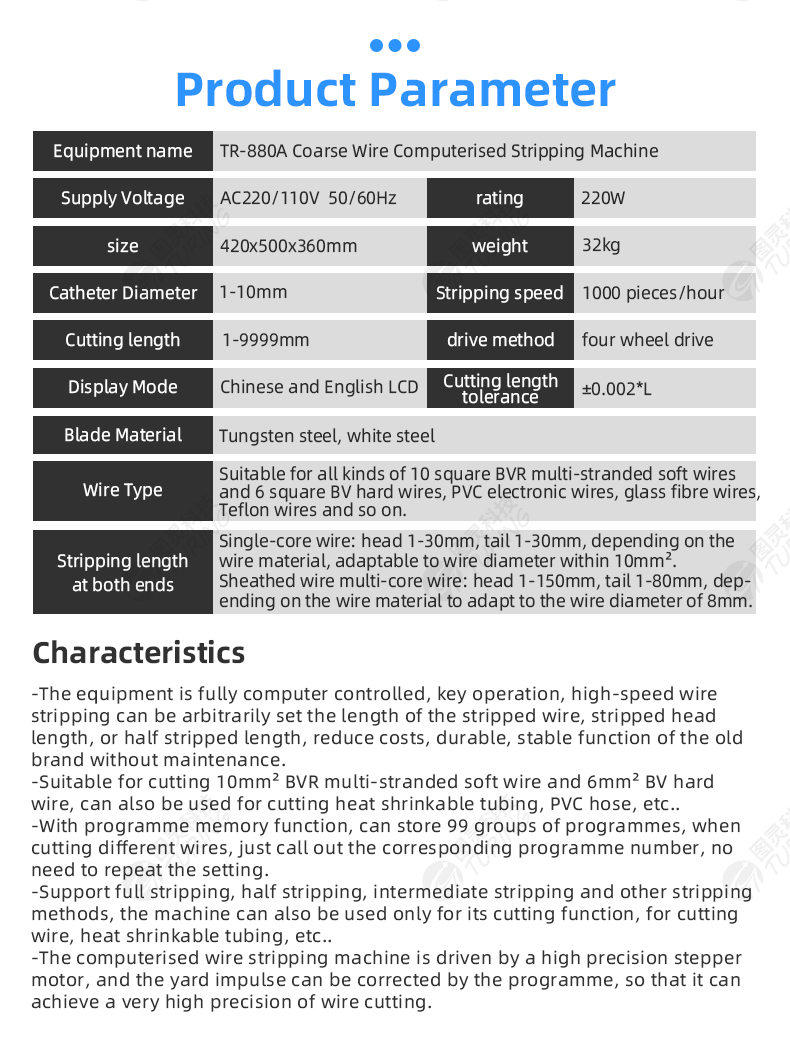

Full Specifications
Technical Data
| Model | TR-880A |
| Power | AC220V/50HZ, |
| Feature | Stable Performance |
| Warranty | 1year |
| Contact | Coco 0086-18666170785 |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- Blade Material:Tungsten steel, white steel

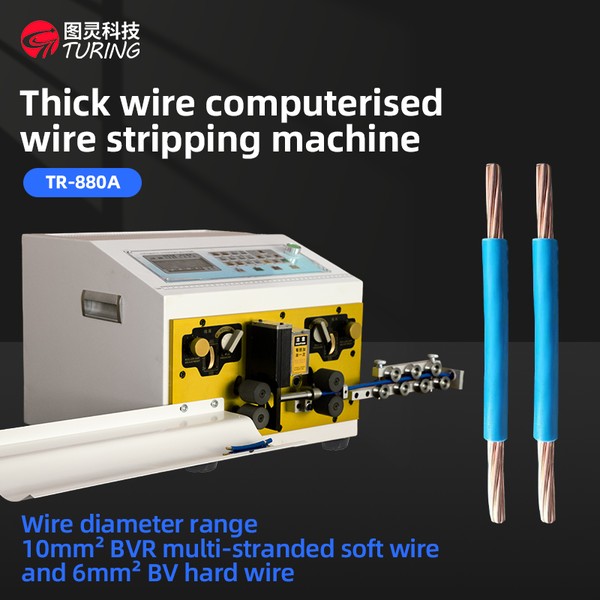

- Wire Type:Suitable for all kinds of 10 square BVR multi-stranded soft wires and 6 square BV hard wires, PVC electronic wires, glass fibre wires, Teflon wires and so on.

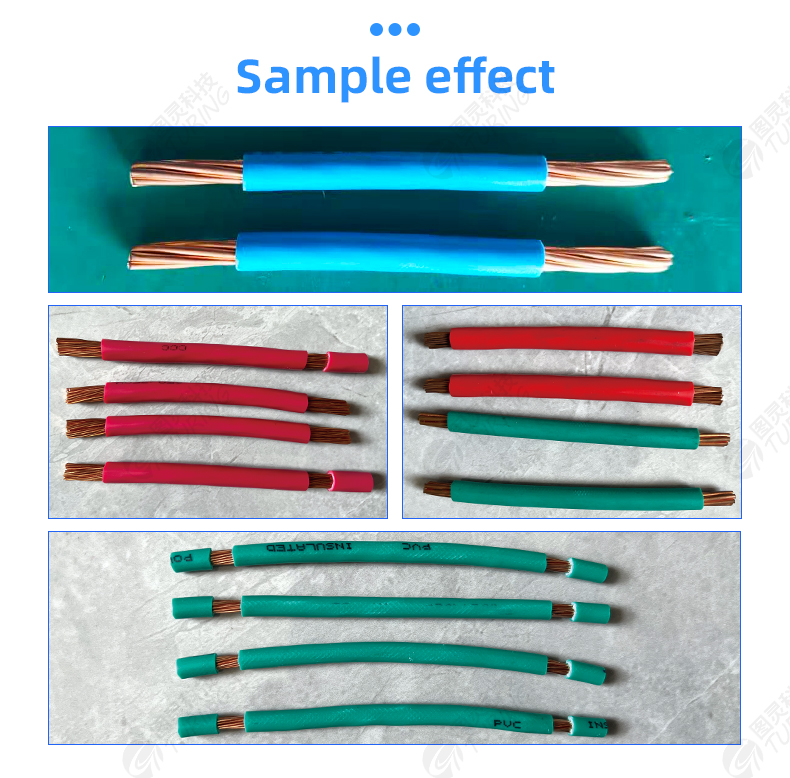

- Stripping length at both ends:Single-core wire: head 1-30mm, tail 1-30mm, depending on the wire material, adaptable to wire diameter within 10mm². Sheathed wire multi-core wire: head 1-150mm, tail 1-80mm, dep- ending on the wire material to adapt to the wire diameter of 8mm.

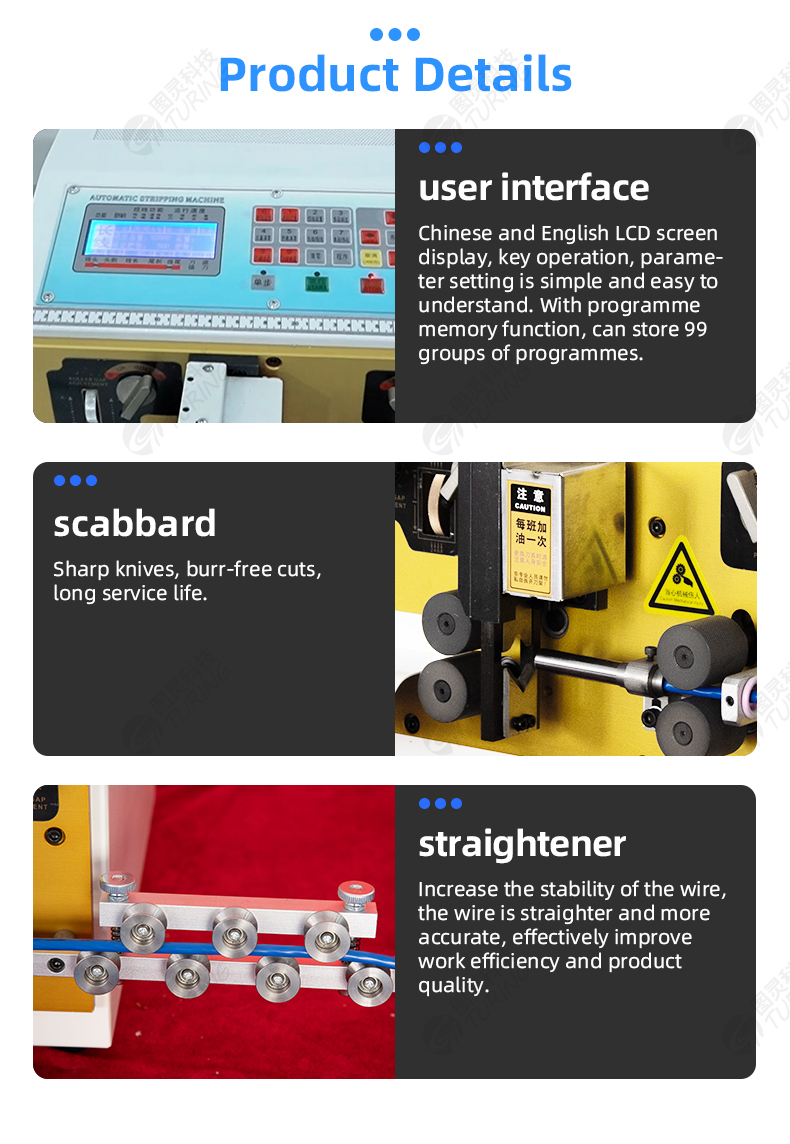

- -The equipment is fully computer controlled, key operation, high-speed wirestripping can be arbitrarily set the length of the stripped wire, stripped headlength, or half stripped length, reduce costs, durable, stable function of the oldbrand without maintenance.-Suitable for cutting 10mm² BVR multi-stranded soft wire and 6mm² BV hardwire, can also be used for cutting heat shrinkable tubing, Pvc hose, etc..-With programme memory function, can store 99 groups of programmes, whencutting different wires, just call out the corresponding programme number, noneed to repeat the setting.-Support full stripping, half stripping, intermediate stripping and other strippingmethods, the machine can also be used only for its cutting function, for cuttingwire,heat shrinkable tubing,etc..-The computerised wire stripping machine is driven by a high precision steppermotor, and the yard impulse can be corrected by the programme, so that it canachieve a very high precision of wire cutting.
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Datasheet
Full specifications in one page — parameters, power, delivery terms.
Download TR-880A Datasheet (PDF)Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries
20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-880A — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
