Equipment Name

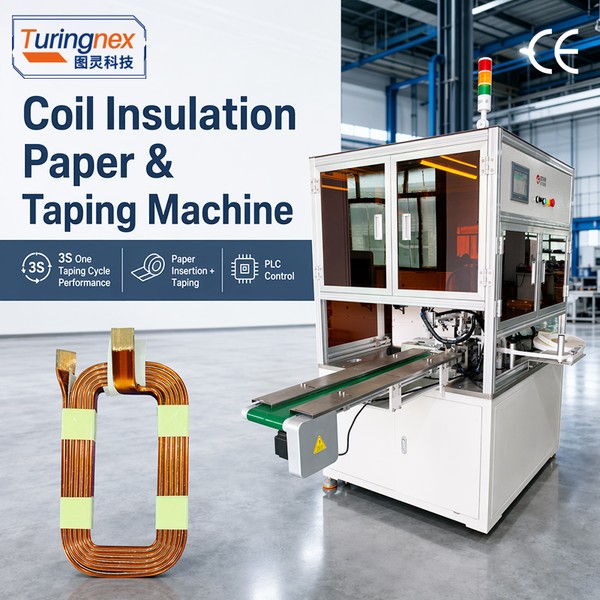

TR-KL04 Automatic Coil Insulation Paper Inserting & Taping Machine
02
Power Supply
220V/50HZ，1kW
03
Size & Weight
2100x1400×2000mm, 500kg
04
Efficiency
3 S
Machine Video
TR-KL04 in Operation
TR-KL04 Automatic Automotive Starter Coil Insulation Paper Inserting & Taping Machine in operation
Full Specifications
Technical Data
| Model | TR-KL04 |
| Power | 220V 50Hz |
| Application | Single Point Tape Wrapping Machine |
| Feature | Stable Performance |
| Function | Automatic Tape Winding Machine |
| Equipment-name | TR-KL04 Automatic Coil Insulation Paper Inserting & Taping Machine |
| Power-supply | 220V/50HZ，1kW |
| Size-&-weight | 2100x1400×2000mm, 500kg |
| Efficiency | 3 S |
| Air-pressure | 5-6KG/cm² |
| Tape-width | 5~10mm (Customizable) |
| Cutting-length | 20~90mm (Customizable) |
| Tape-roll-o.d. | Max ￠200mm |
| Insulation-paper-roll-o.d. | Max ￠300mm |
| Tape-roll-inner-diameter | ￠76mm |
| Insulation-paper-roll-inner-diameter | ￠76mm |
| Insulation-paper-cutting-width | Φ13mm (Customizable) |
| Insulation-paper-height | 24-30mm (Customizable) |
| Coil-size | Customized, subject to actual product |
| Terminal compatibility |
