Highlights
Machine Video
TR-KL02 in Operation

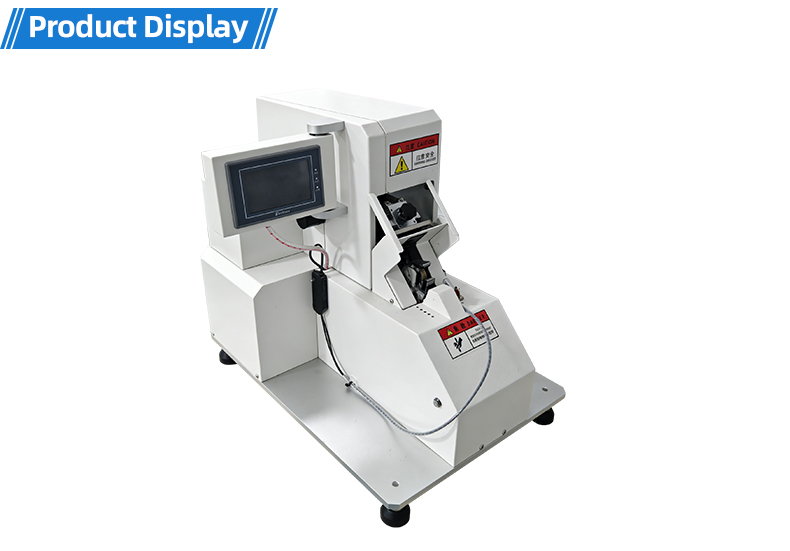

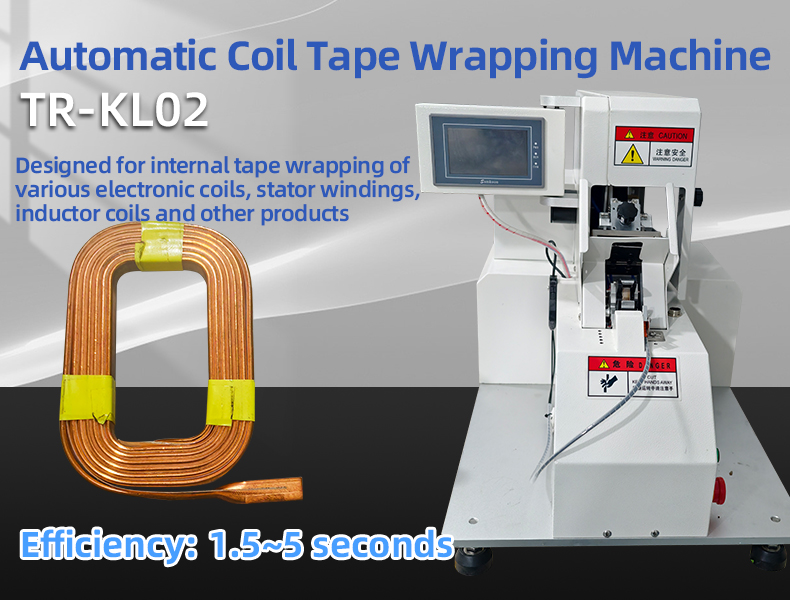

TR-KL02 Automatic Coil Tape Wrapping Machine in operation
Full Specifications

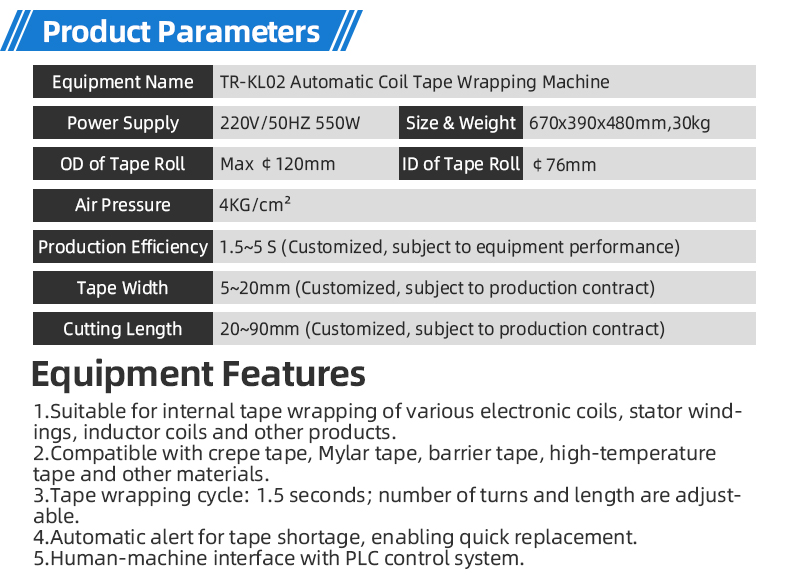

Technical Data
| Model | TR-KL02 |
| Power-supply | 220V/50HZ 550W |
| Dimensions-weight | 670×390×480mm, 30kg |
| Outer-diameter-of-tape-roll | Max φ120mm |
| Inner-diameter-of-tape-roll | φ76mm |
| Operating-air-pressure | 4KG/cm² |
| Production-efficiency | 1.5~5 S (Customized, subject to equipment performance) |
| Tape-width | 5~20mm (Customized, subject to production contract) |
| Cutting-length | 20~90mm (Customized, subject to production contract) |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.

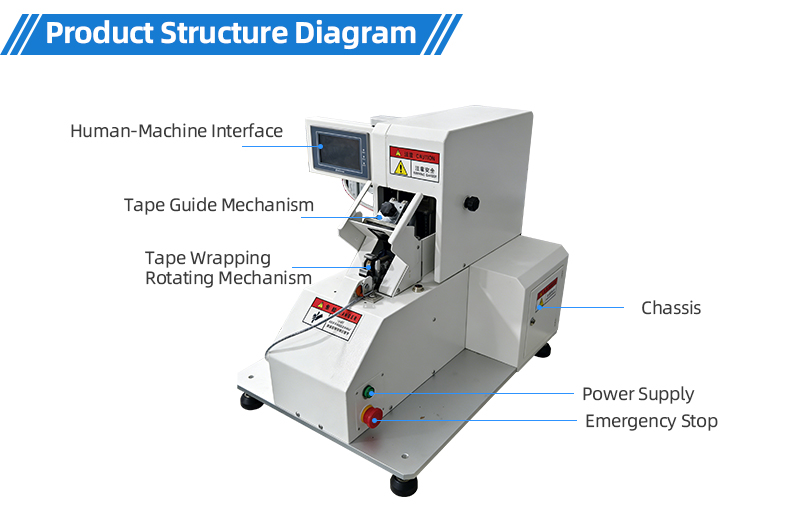

Features & Details

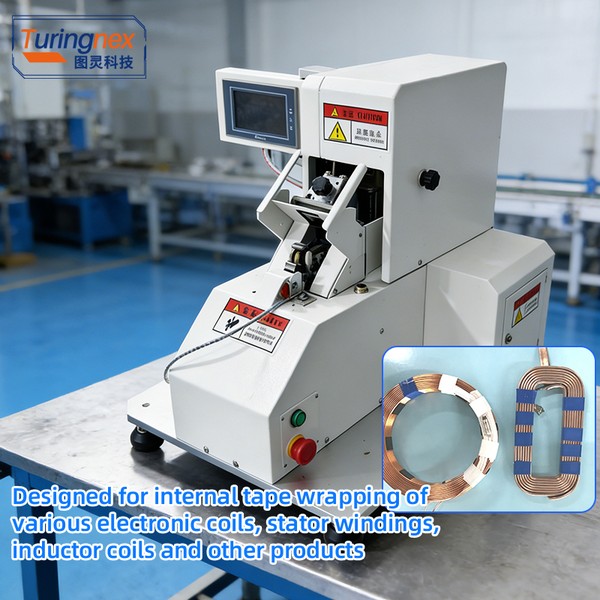

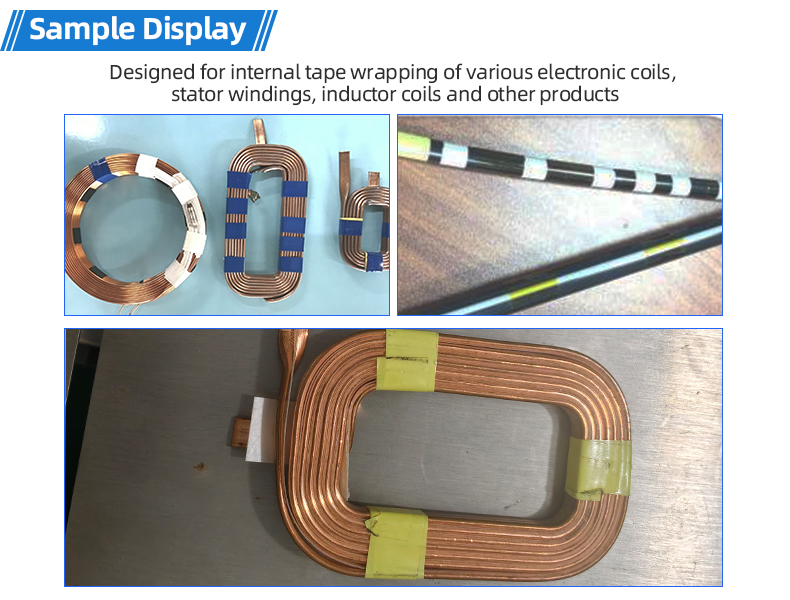

- Suitable for internal tape wrapping of electronic coils, stator windings and inductor coils

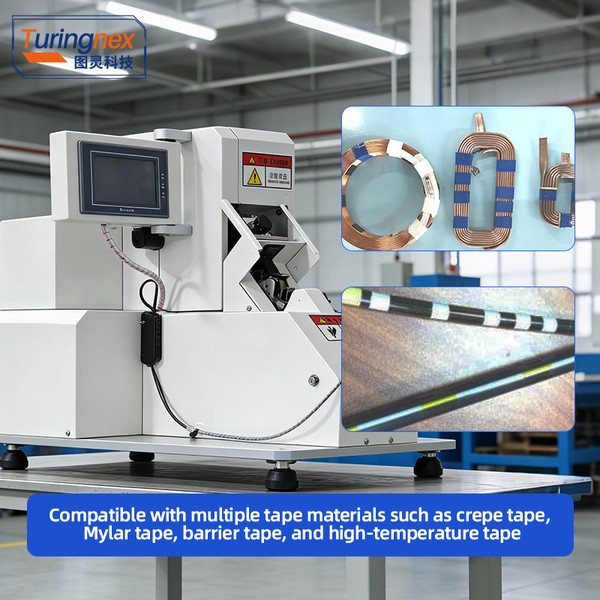

- Compatible with crepe tape, Mylar tape, barrier tape and high-temperature tape

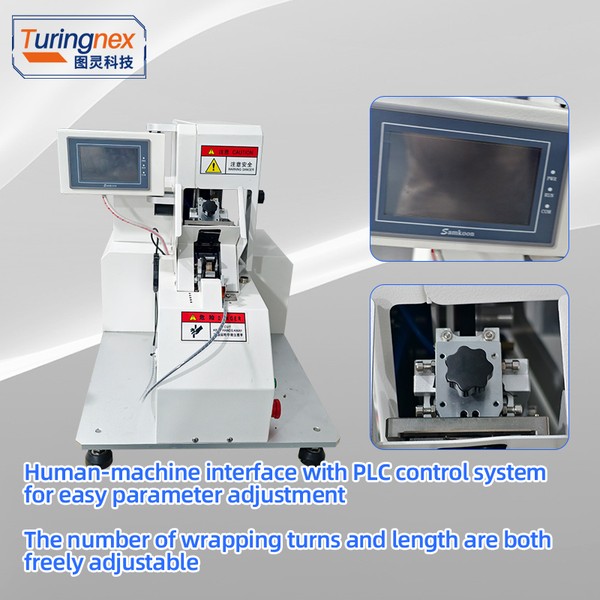

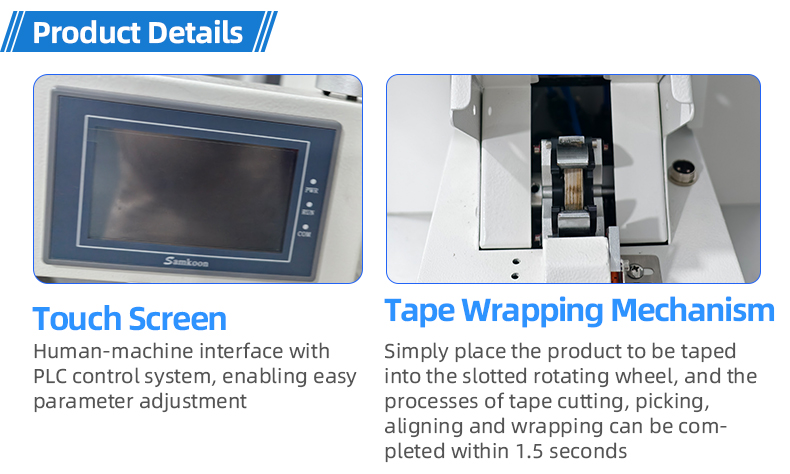

- Tape wrapping cycle 1.5 seconds with adjustable turns and length
- Automatic alert for tape shortage for quick replacement
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Datasheet
Full specifications in one page — parameters, power, delivery terms.
Download TR-KL02 Datasheet (PDF)Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: Standard models in stock; customised machines 7–15 days, confirmed at quotation
Request a TestWhy Buy Direct From Turingnex
Applied Industries

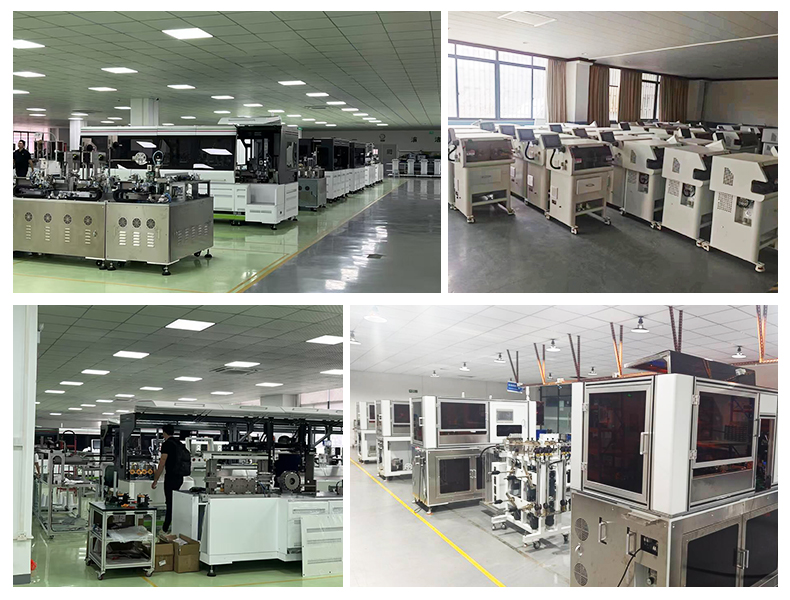

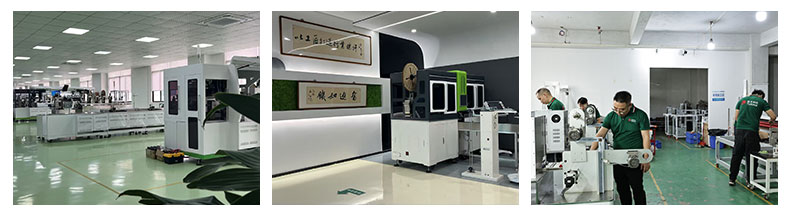

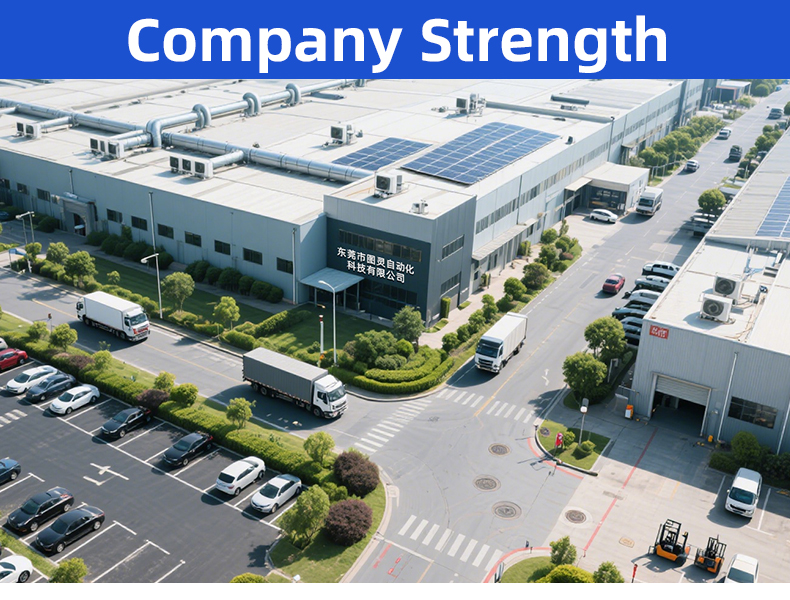

20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-KL02 — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
