Product Name

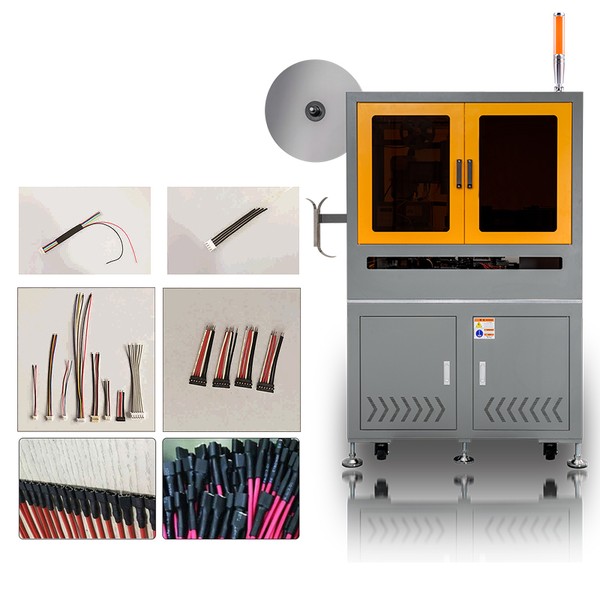

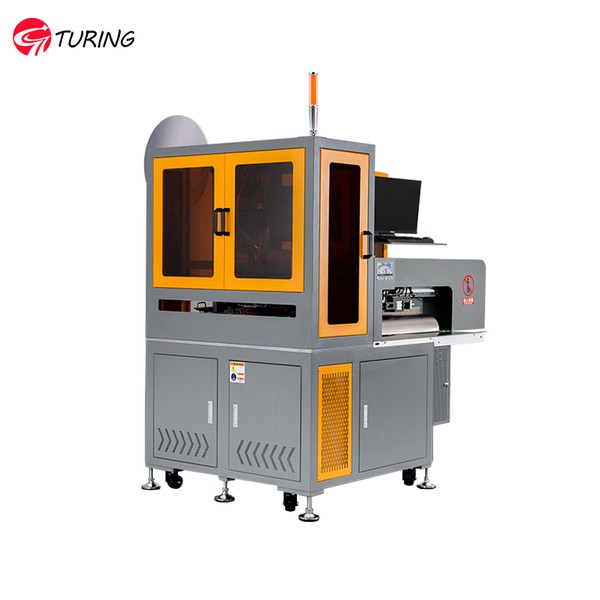

TR-JK1 Automatic single head through shell dip tin machine
02
Crimping Machine Size
2108x1600x1600(mm)
03
Equipment weight
About 600KG
04
Working voltage
AC220V 50HZ
Machine Video
TR-JK1 in Operation
TR-JK1 Fully Automatic Terminal Crimping Insert The Plastic Shell Single End Tin Dipping Machine in operation

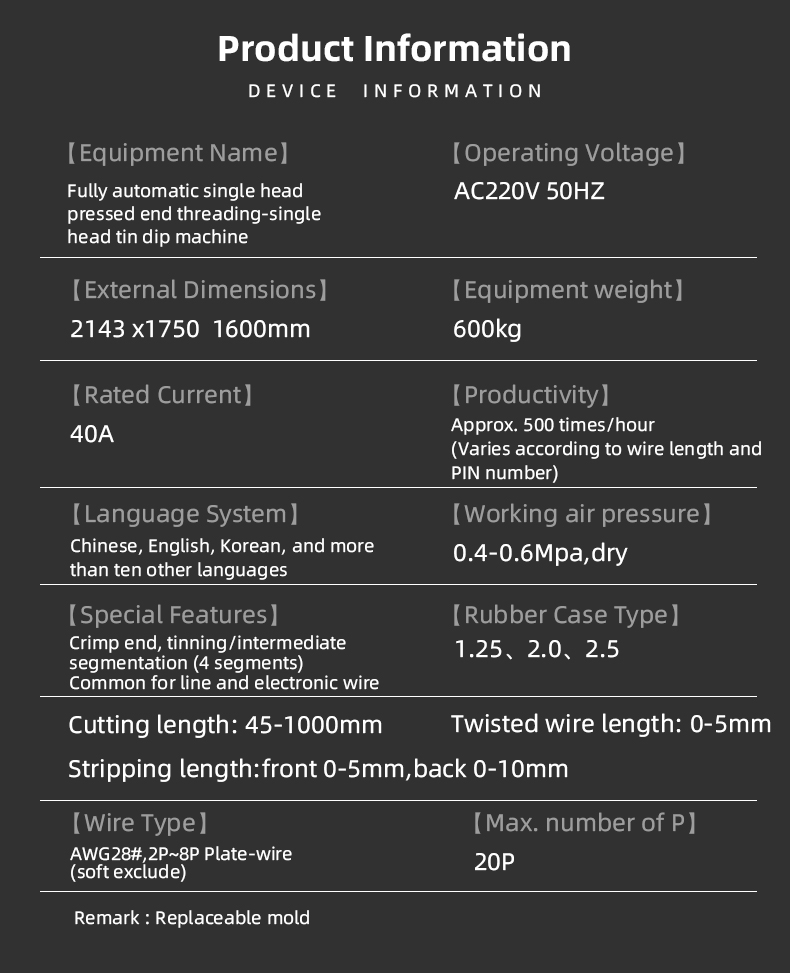

Full Specifications
Technical Data

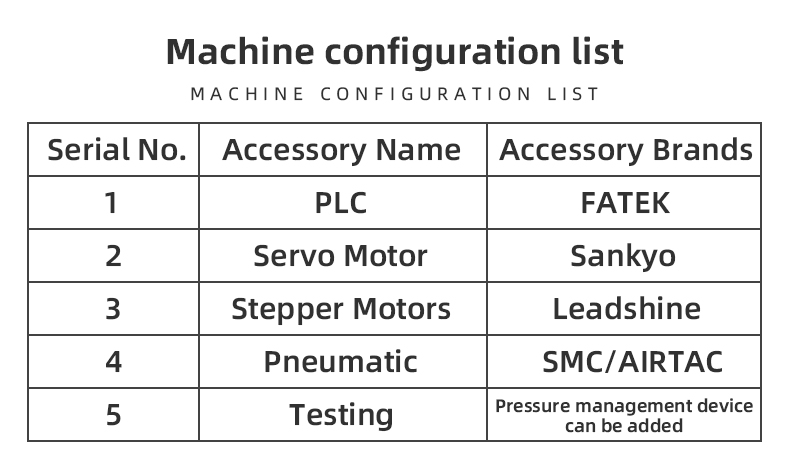

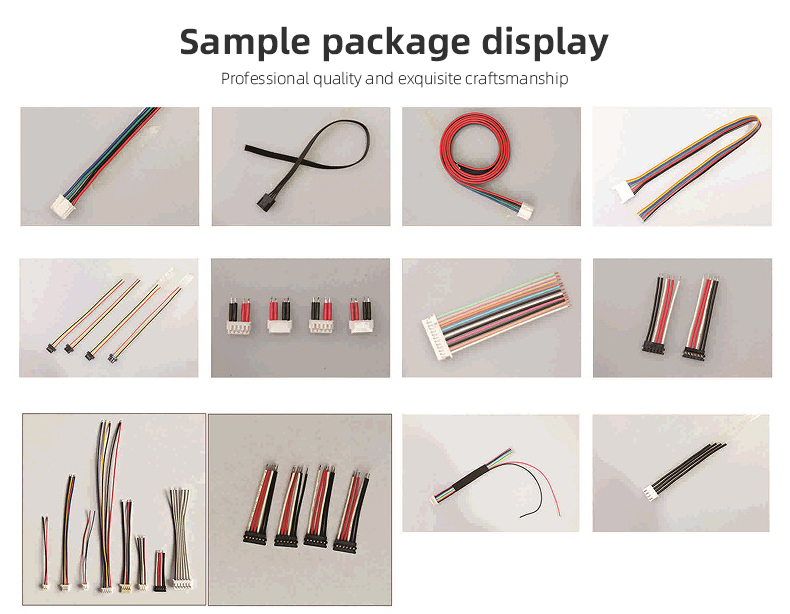

| Model | TR-JK1 |
| Power | AC220V/50HZ, 300W |
| Application | terminal insert shell and tin dipping machine |
| Feature | Stable Performance |
| Warranty | 1year |
| Control | Servo and Step motor |
| Contact | Coco 0086-18666170785 |
| Product-name | TR-JK1 Automatic single head through shell dip tin machine |
| Crimping-machine-size | 2108x1600x1600(mm) |
| Equipment-weight | About 600KG |
| Working-voltage | AC220V 50HZ |
| Working-pressure | 0.5-0.7Mpa, dry AIR .monica-writing-entry-btn { position: absolute; right: 1px; bottom: 1px; pointer-events: all; cursor: pointer; user-select: none; -webkit-user-drag: none; display: flex; flex-direction: row; justify-content: center; alig |
| Rated-current | 40A |
| Placement-environment | The ground is flat and firm, dry, without sunlight |
| Pneumatic | The whole machine is SMC brand |
| Testing | Pressure management device can be added |
| Efficiency | 400-500 times/h the machine can work 24 |
| Cut-length | 30-1000mm (length can be specified) |
| Front-stripping-length | Peeling 0-10mm, twisted wire 2-6mm |
| Rear-peeling-length | 0-5mm, pressure end, insert shell |
| Rubber-shell-type | 1.25, 1.5, 2.0, 2.5, etc. |
| P-number-of-shell-processing | Electronic wire 2P-12P, row wire 2P-5P |
| Other-functions | Strandable, up to 5 sets of stranded wires |
| Wire-type | AWG28# - 18# electronic wire, line wire |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.

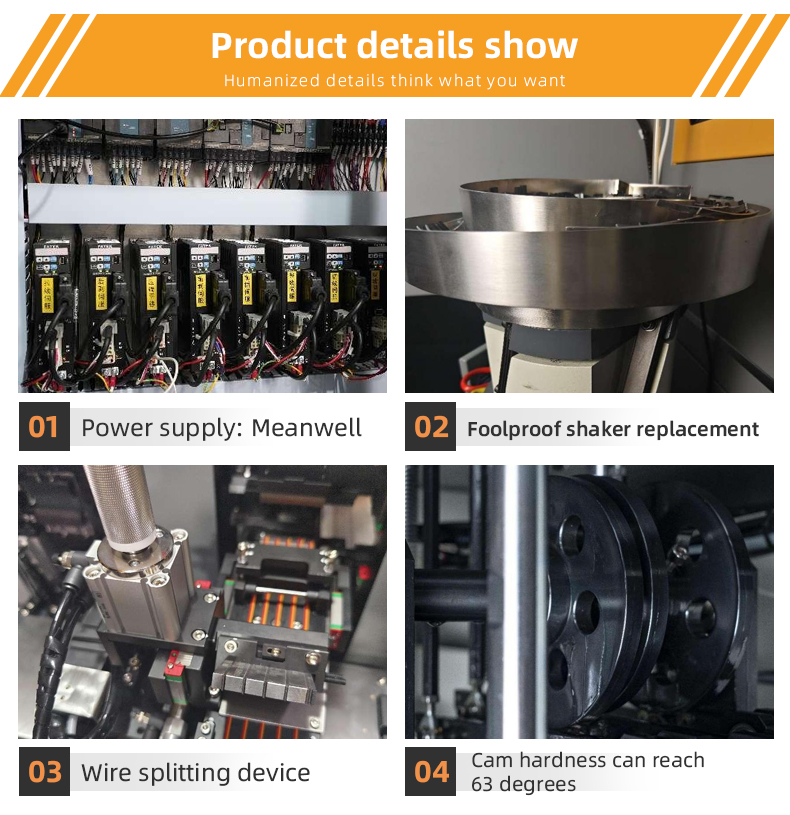

Features & Details

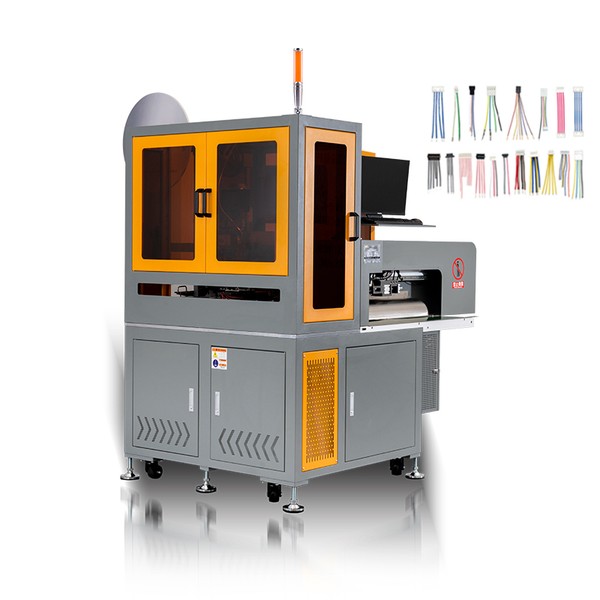

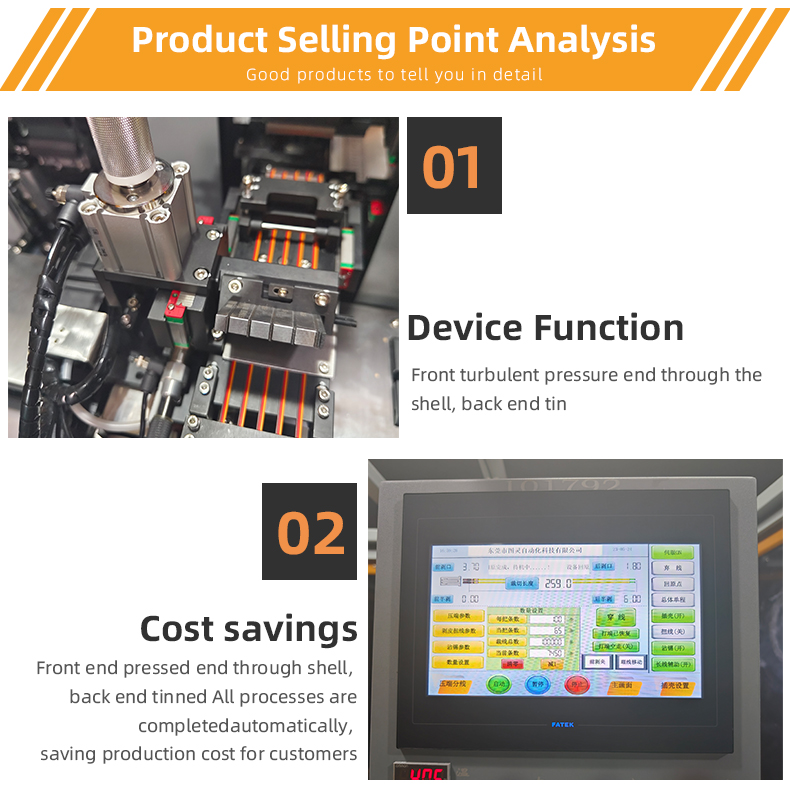

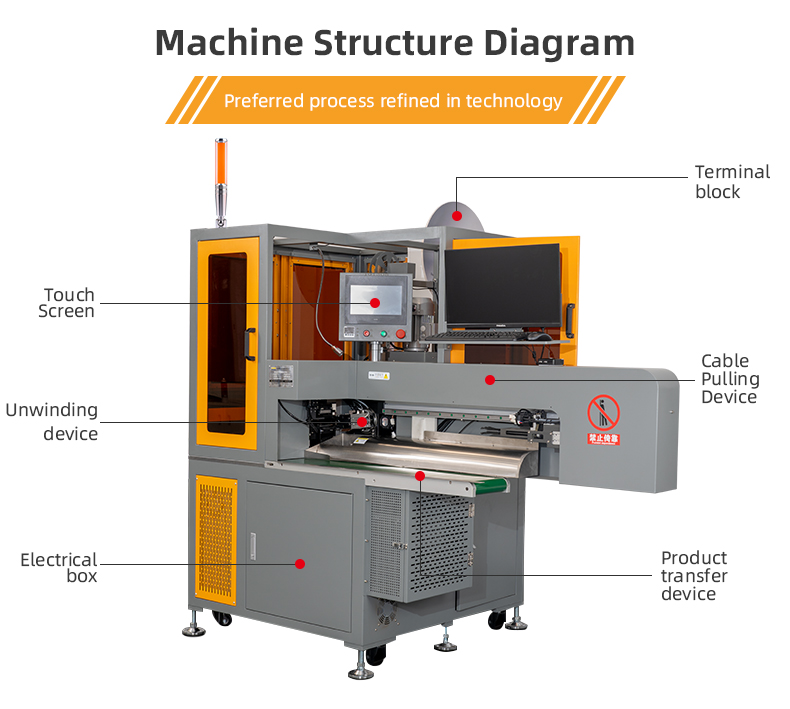

- Equipment function: the front end is pressed through the shell, and the back end is dipped in tin
- Cost saving: the front end presses through the shell, the back end dips in tin, and all processes are
- automatically completed, saving production costs for customers.

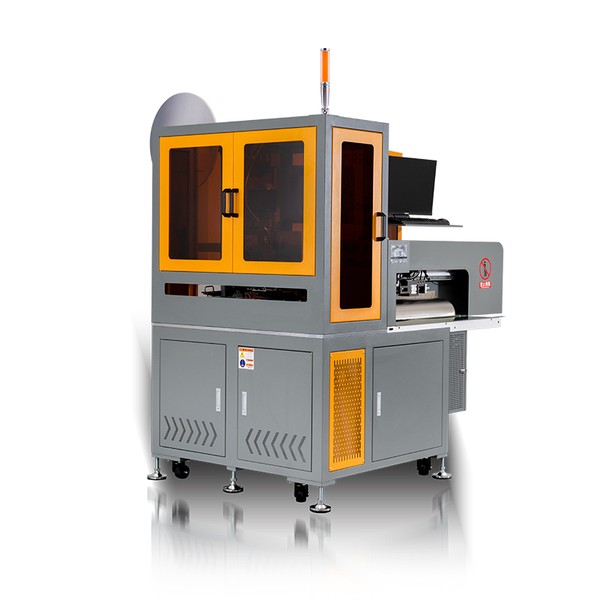

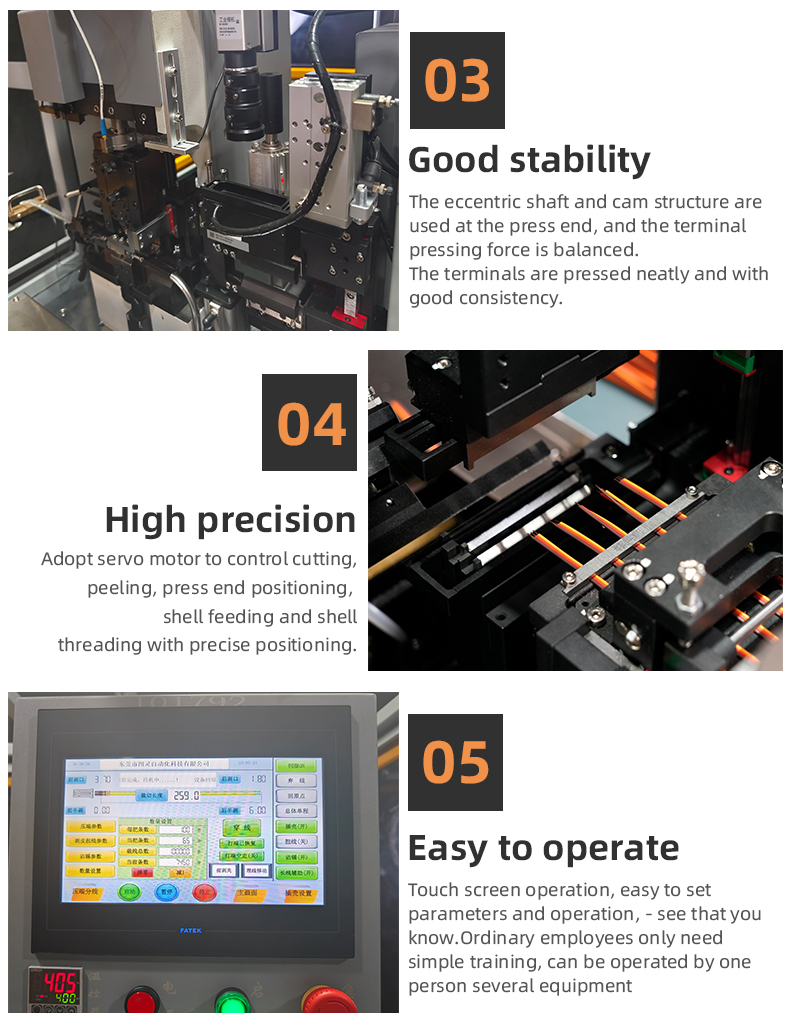

- Good stability: The crimping end adopts eccentric shaft and cam structure, the crimping force of the terminal
- is balanced, the crimping of the terminal is neat, and the consistency is good.
- High precision: Servo motors are used to control cutting, peeling, pressure end positioning,
