Semi-automatic Pneumatic Wire Stripping Machine
02
Brand
Turing
03
Model
TR-CTB01
04
Stripping range
OD3~9mm
Machine Video
TR-CTB01 in Operation

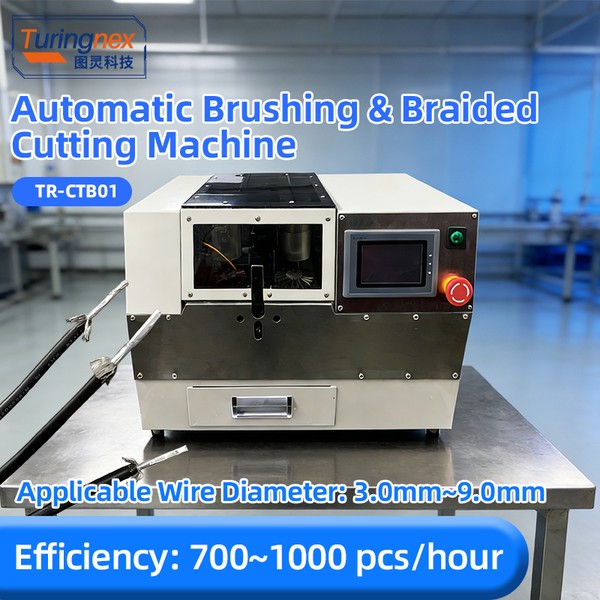

TR-CTB01 Automatic Brushing & Braided Cutting Machine in operation

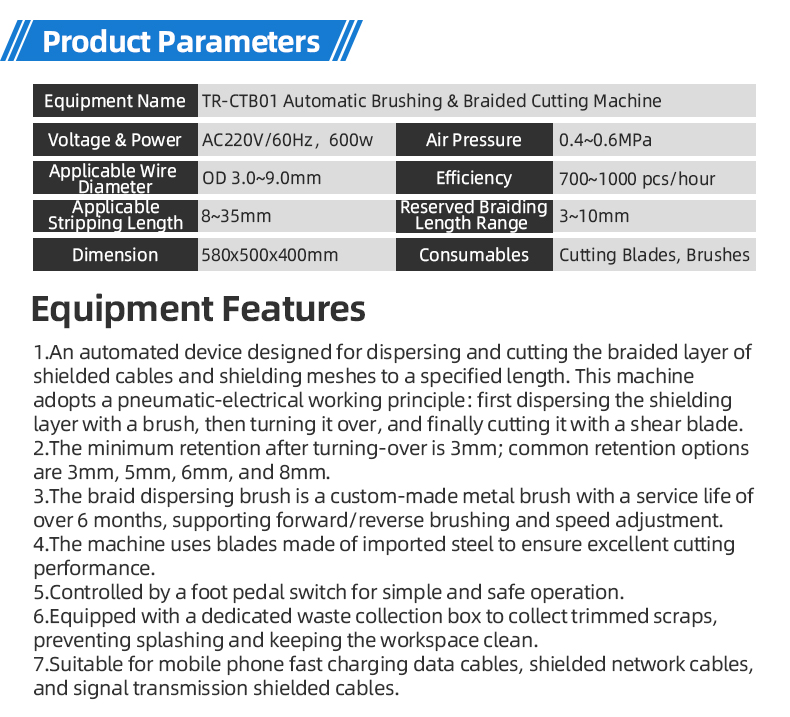

Full Specifications
Technical Data
| Model | TR-CTB01 |
| Stripping-range | OD3~9mm |
| Size | 580x500x400mm |
| Air-pressure | 0.4~0.6MPa |
| Control-method | Pneumatic Control |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details

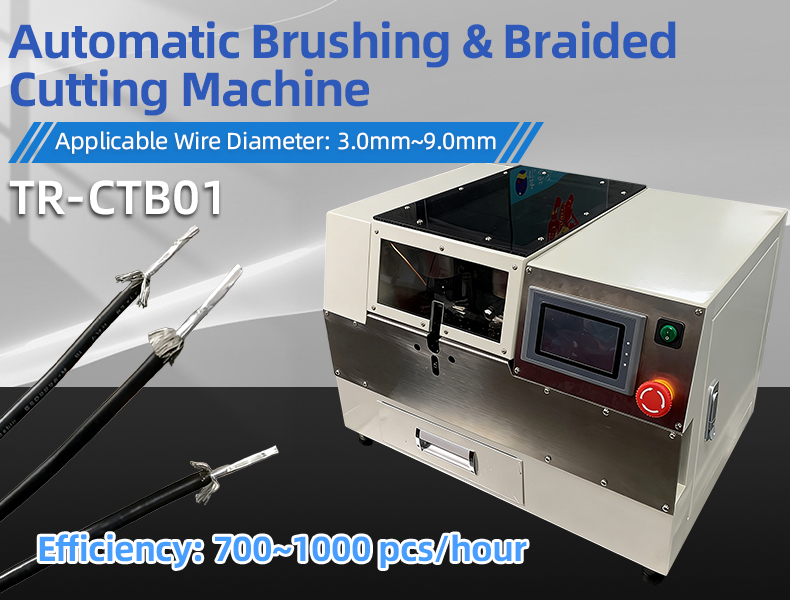

- Applicable Wire Diameter：Outer Diameter 3.0~9.0mm

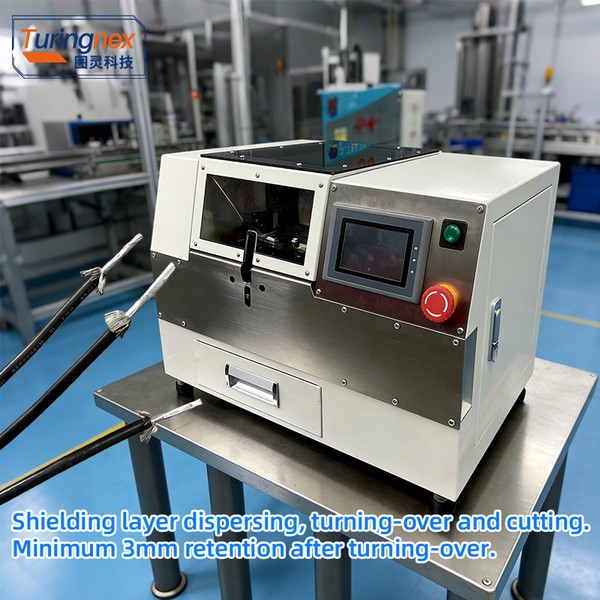

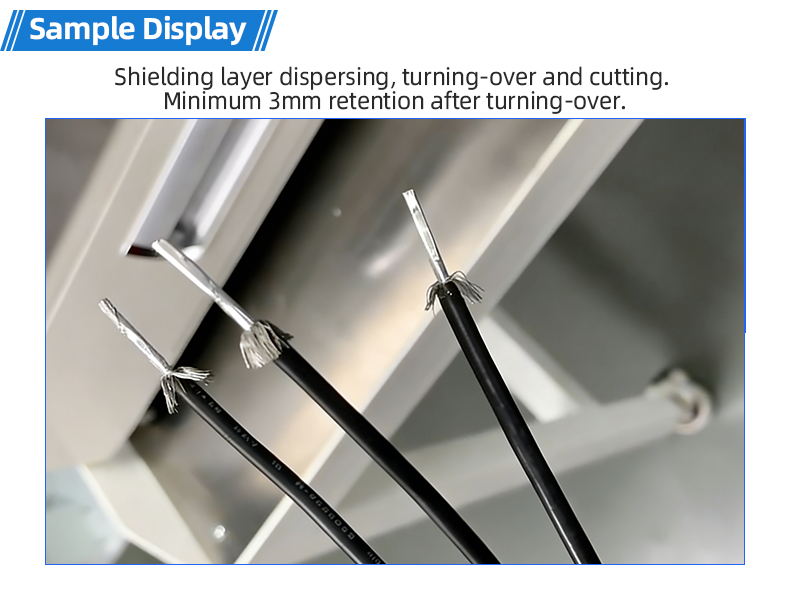

- 1.An automated device designed for dispersing and cutting the braided layer of shielded cables and shielding meshes to a specified length. This machine adopts a pneumatic-electrical working principle: first dispersing the shielding layer with a brush, then turning it over, and finally cutting it with a shear blade. The minimum retention after turning-over is 3mm; common retention options are 3mm, 5mm, 6mm, and 8mm.

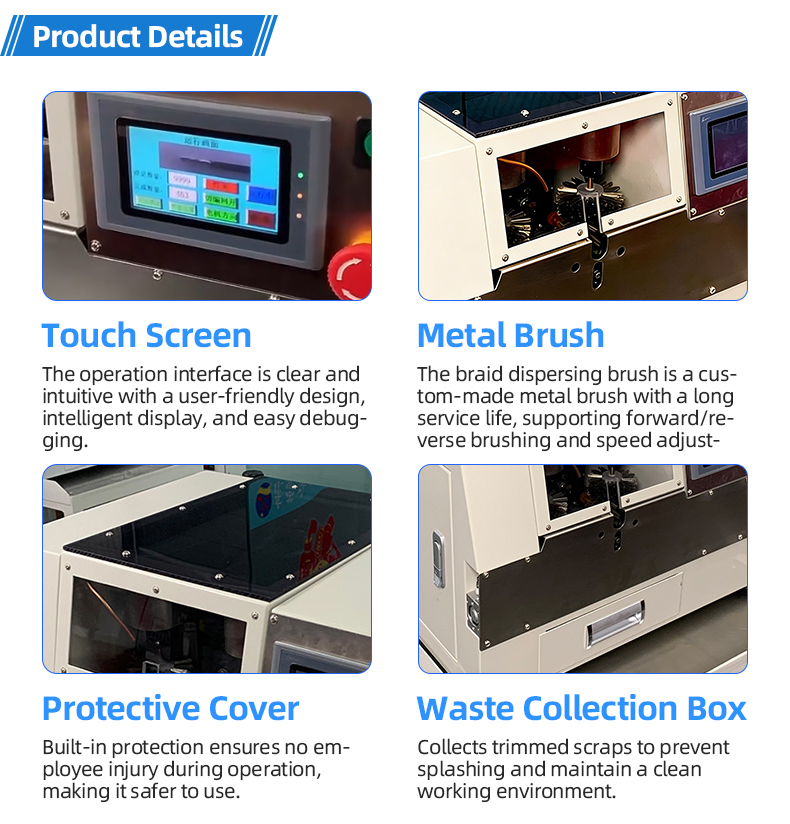

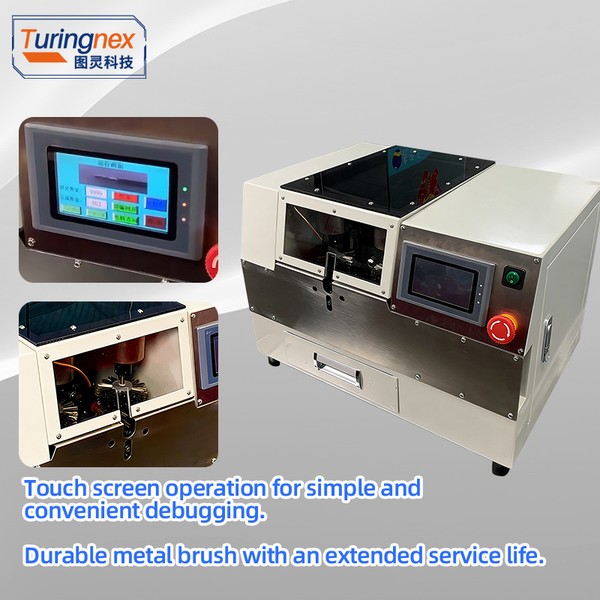

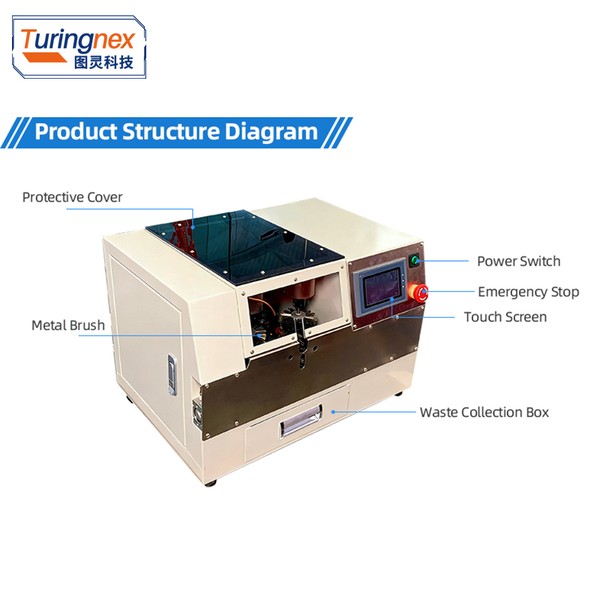

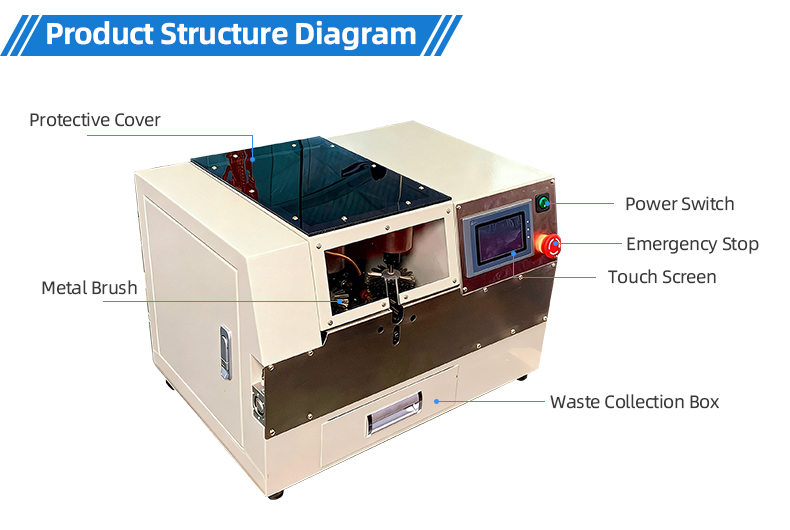

- 2.The braid dispersing brush is a custom-made metal brush with a service life of over 6 months, supporting forward/reverse brushing and speed adjustment.

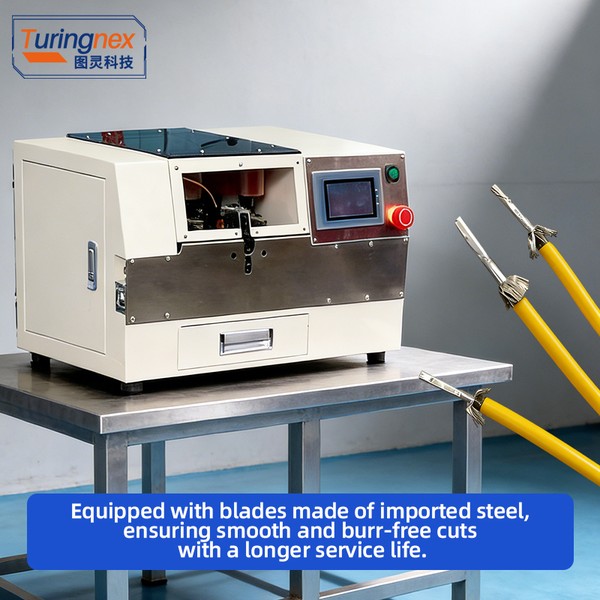

- 3.The machine uses blades made of imported steel to ensure excellent cutting performance.
- 4.Controlled by a foot pedal switch for simple and safe operation.
- 5.Equipped with a dedicated waste collection box to collect trimmed scraps, preventing splashing and keeping the workspace clean.
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Datasheet
Full specifications in one page — parameters, power, delivery terms.
Download TR-CTB01 Datasheet (PDF)Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries
20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-CTB01 — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
