Highlights
01
Categories
Wire Stripping and Terminal Crimping Machine
02
Brand
Turing
03
Model
TR-BD3000
04
Power
AC220V/50HZ,
Machine Video
TR-BD3000 in Operation

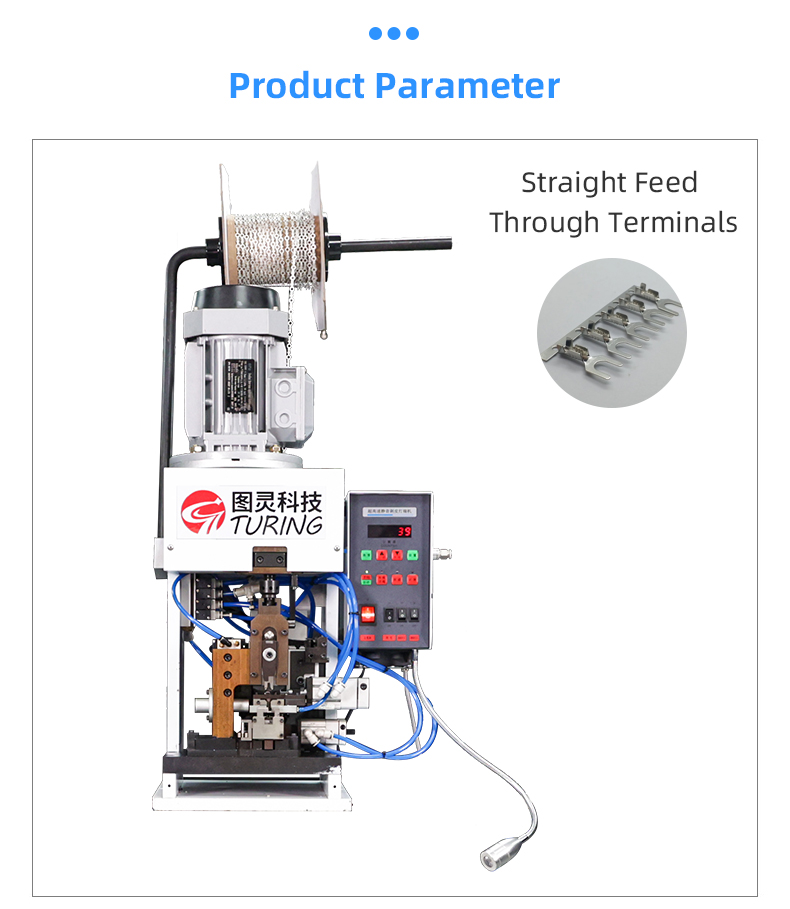

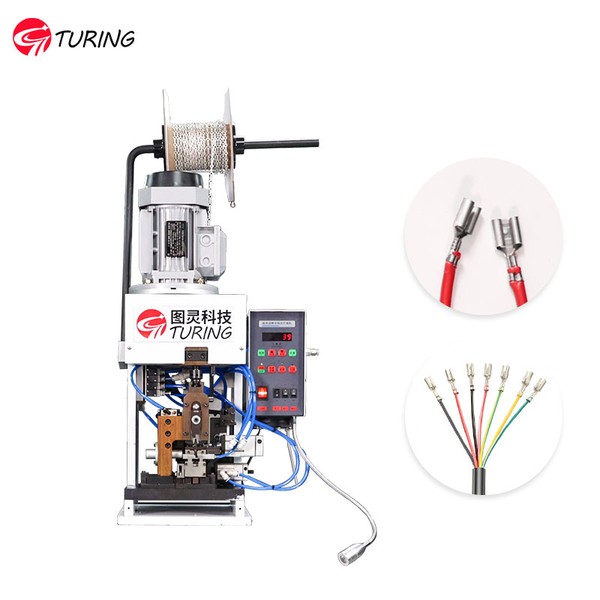

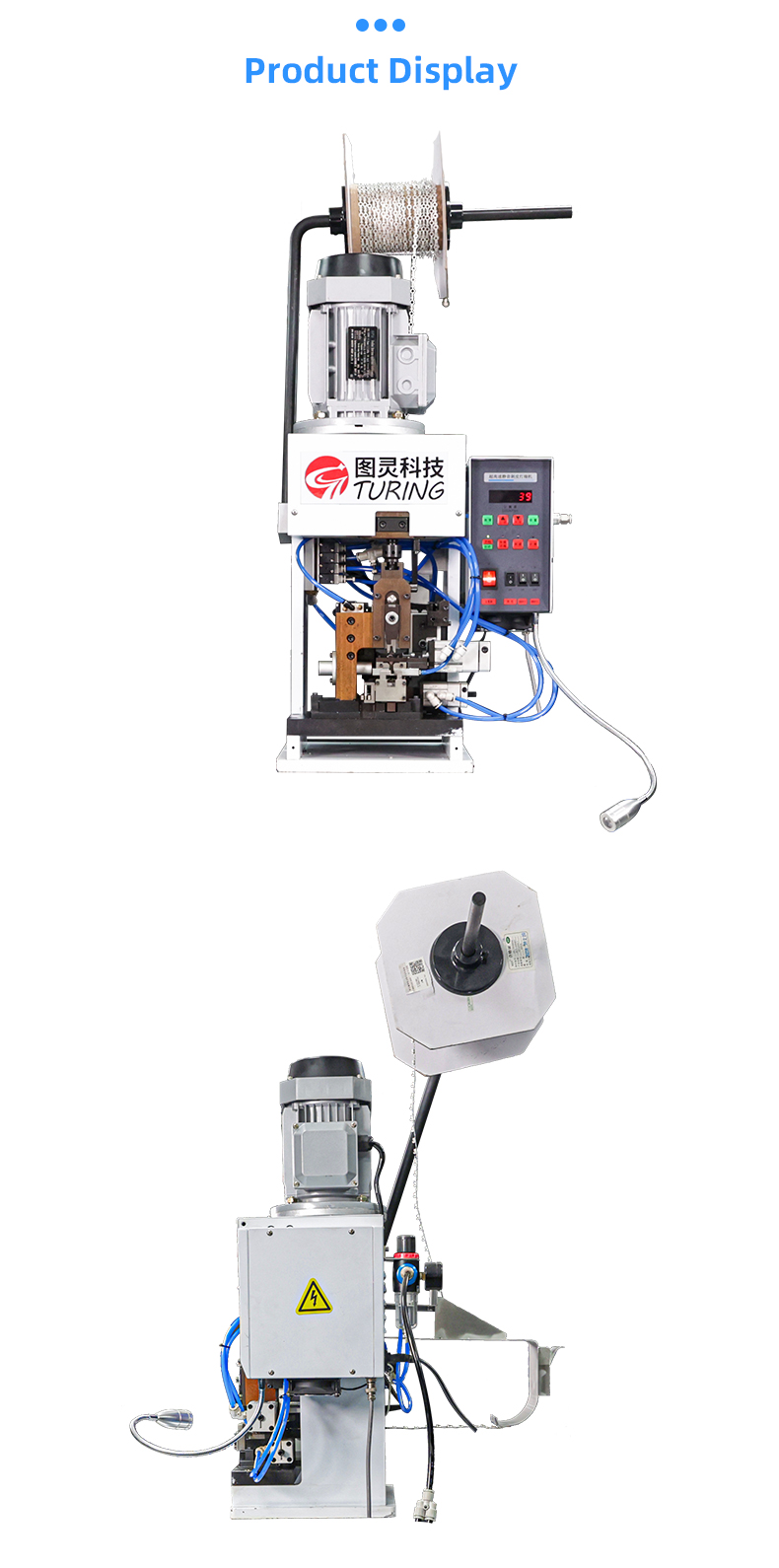

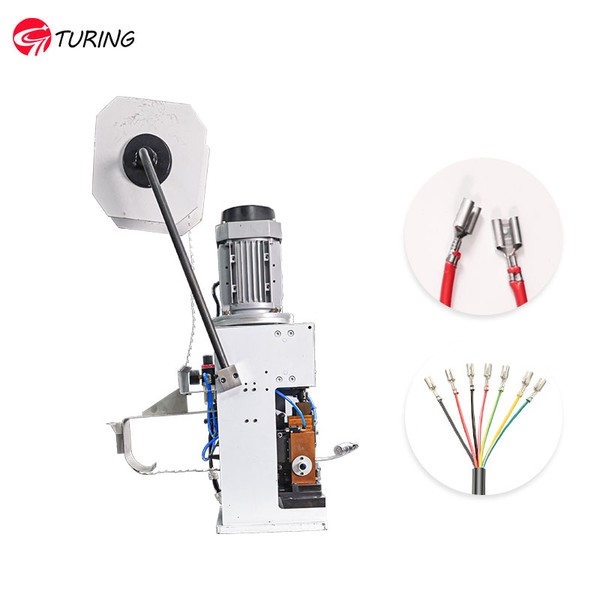

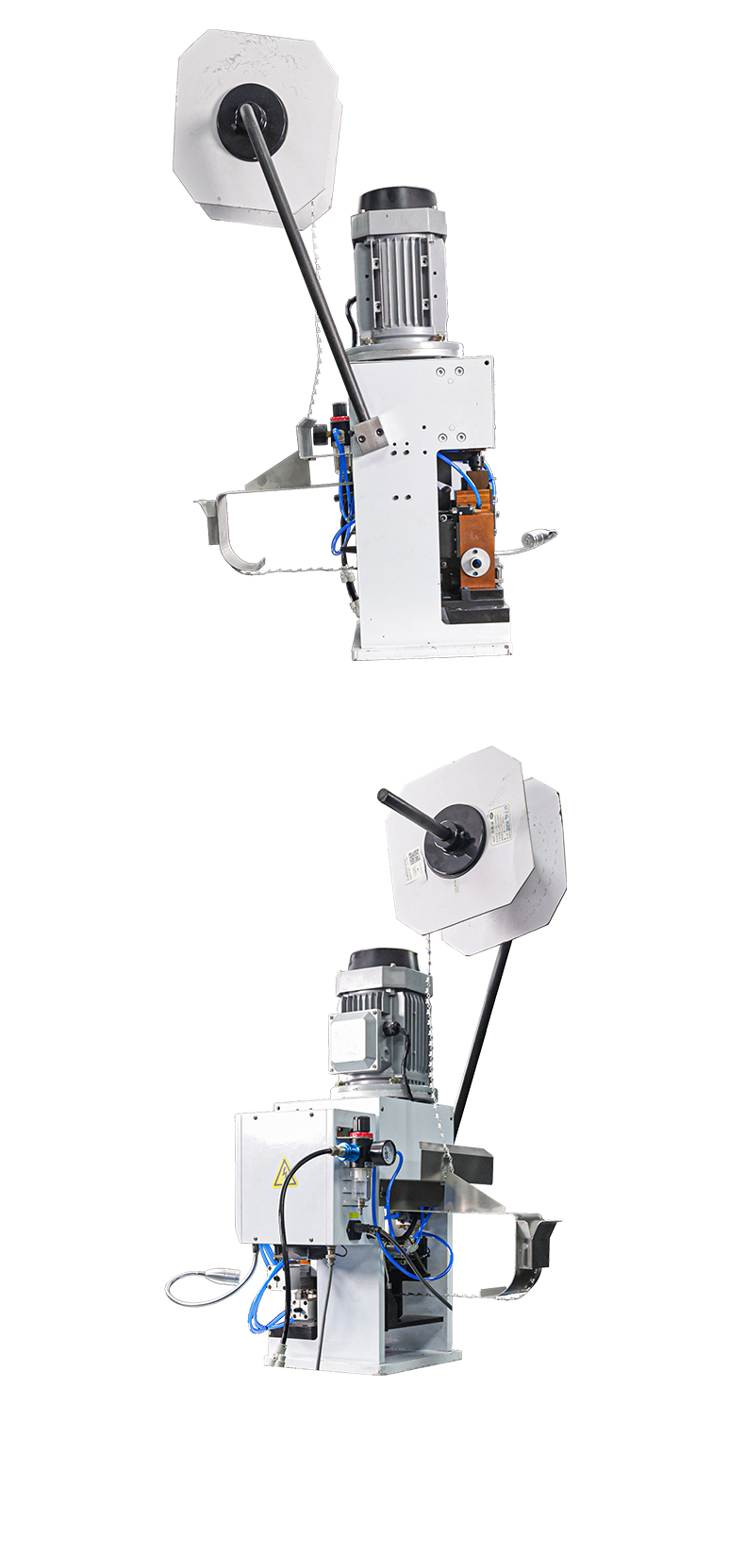

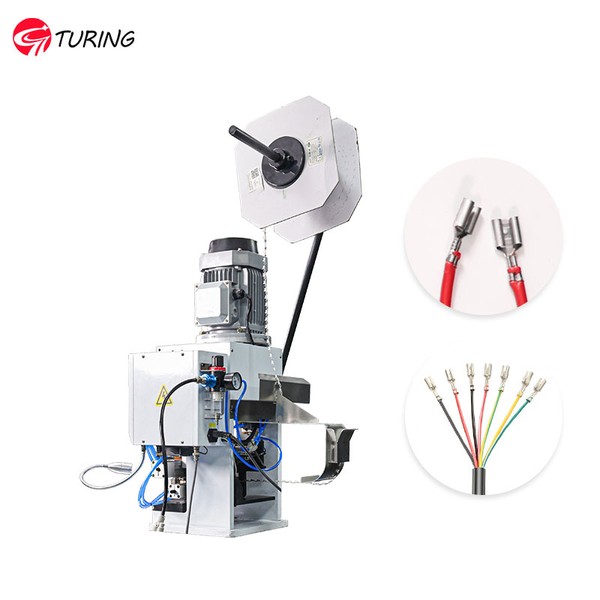

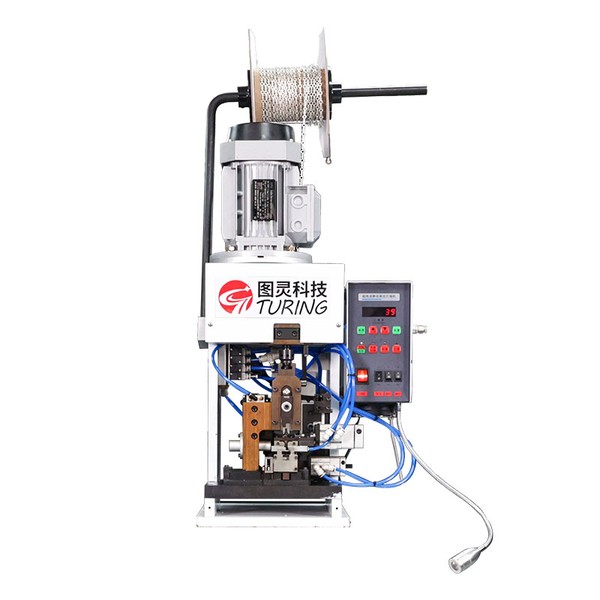

TR-BD3000 Semi-automatic Straight Stripping And Crimping Terminal Crimping Machine in operation
Full Specifications

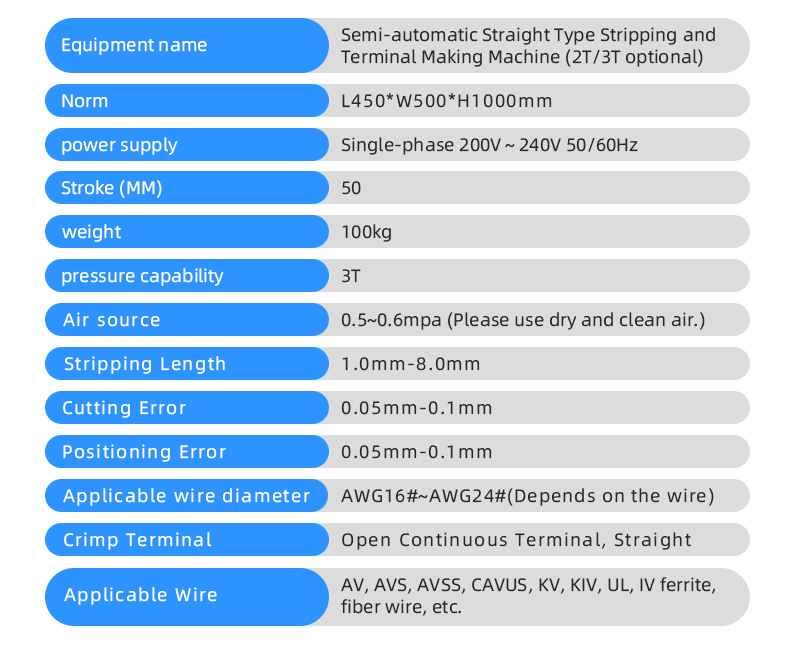

Technical Data
| Model | TR-BD3000 |
| Power | AC220V/50HZ, |
| Application | stripping and Crimping terminal machine |
| Feature | Stable Performance |
| Warranty | 1year |
| Control | Servo and Step motor |
| Contact | Lily 0086-13715588365 |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details

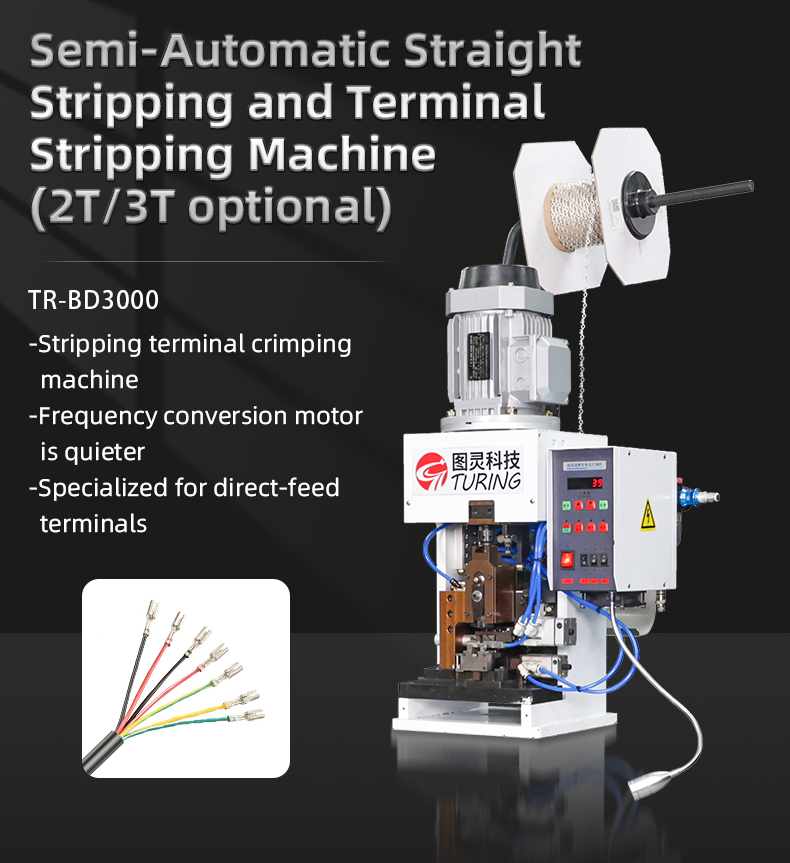

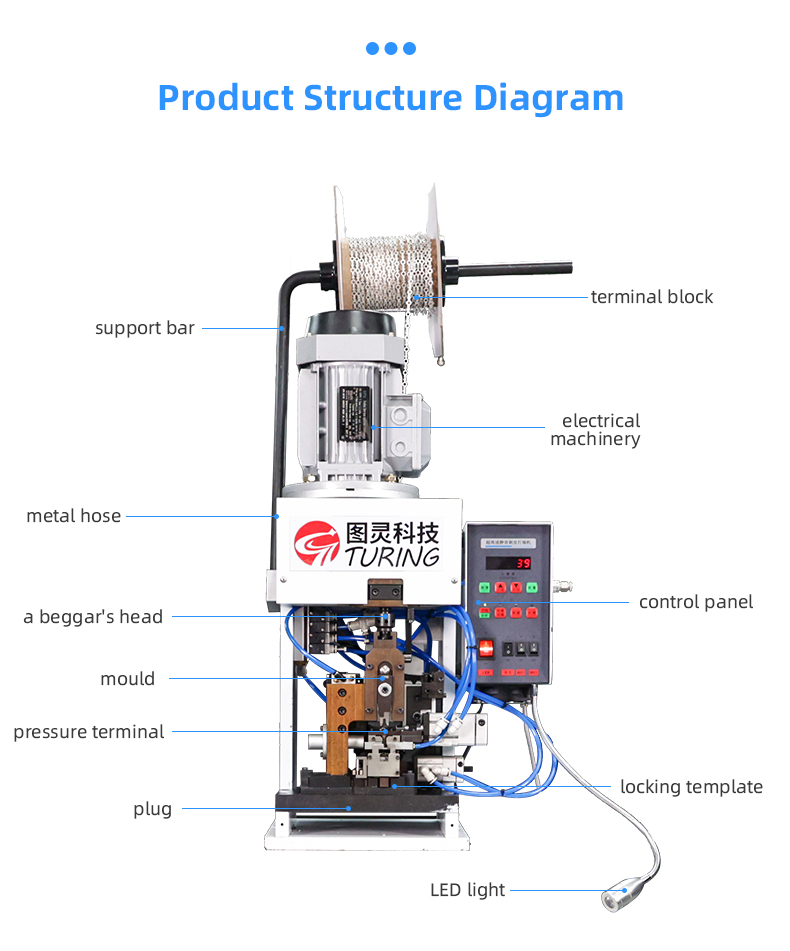

- TR-BD3000 Semi-automatic straight stripping and Crimping terminal crimping machine
- Applicable wire diameter：AWG16#~AWG24#(Dependson the wire)
- Crimp Terminal： Open Continuous Terminal, Straight

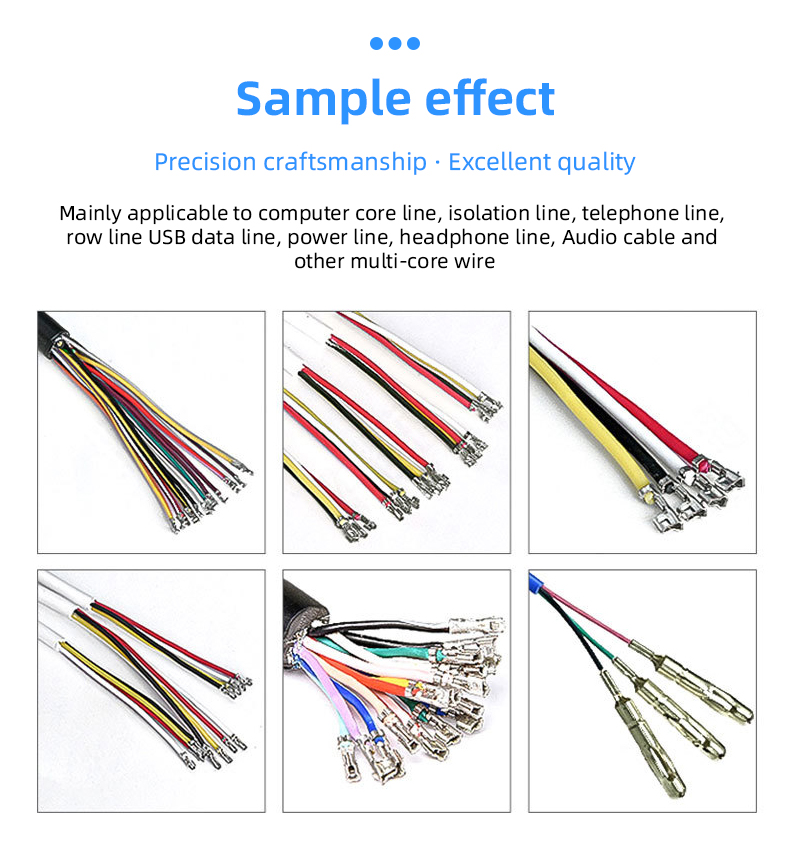

- Applicable wire： AV, AVS,AVSS, CAVUS, KV, KIV, UL, IV ferrite,fiber wire, etc.

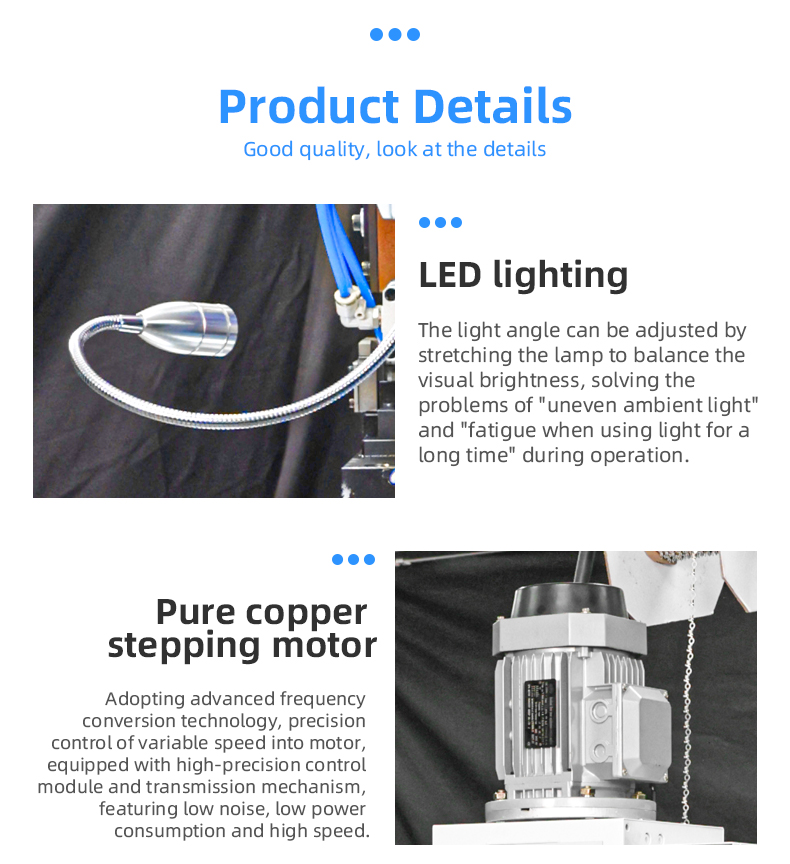

- 1. The straight stripping and terminal stripping machine adopts advanced frequency conversion technology to precisely control the variable speed motor. It is equipped with a high-precision control module and transmission mechanism to complete the stripping and terminal stripping in one go; it has low noise and low power consumption. High-speed characteristics; effective for multi-core power cords.

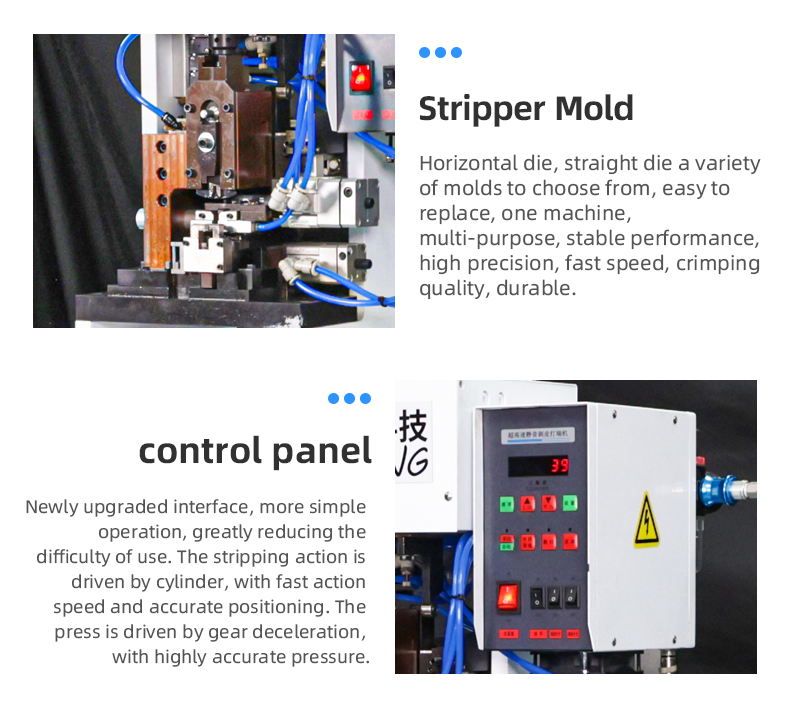

- 2. The wire stripping action is driven by a cylinder, with fast action speed and accurate positioning; the waste material after stripping adopts vacuum suction method, which is clean, convenient and simple; the press is driven by a turbine reduction drive, and the pressure is highly accurate; this machine is suitable for operation by both raw and experienced hands. The machine can change the overall speed through the operation panel to adapt to the operator's proficiency.
