Highlights
01
Categories

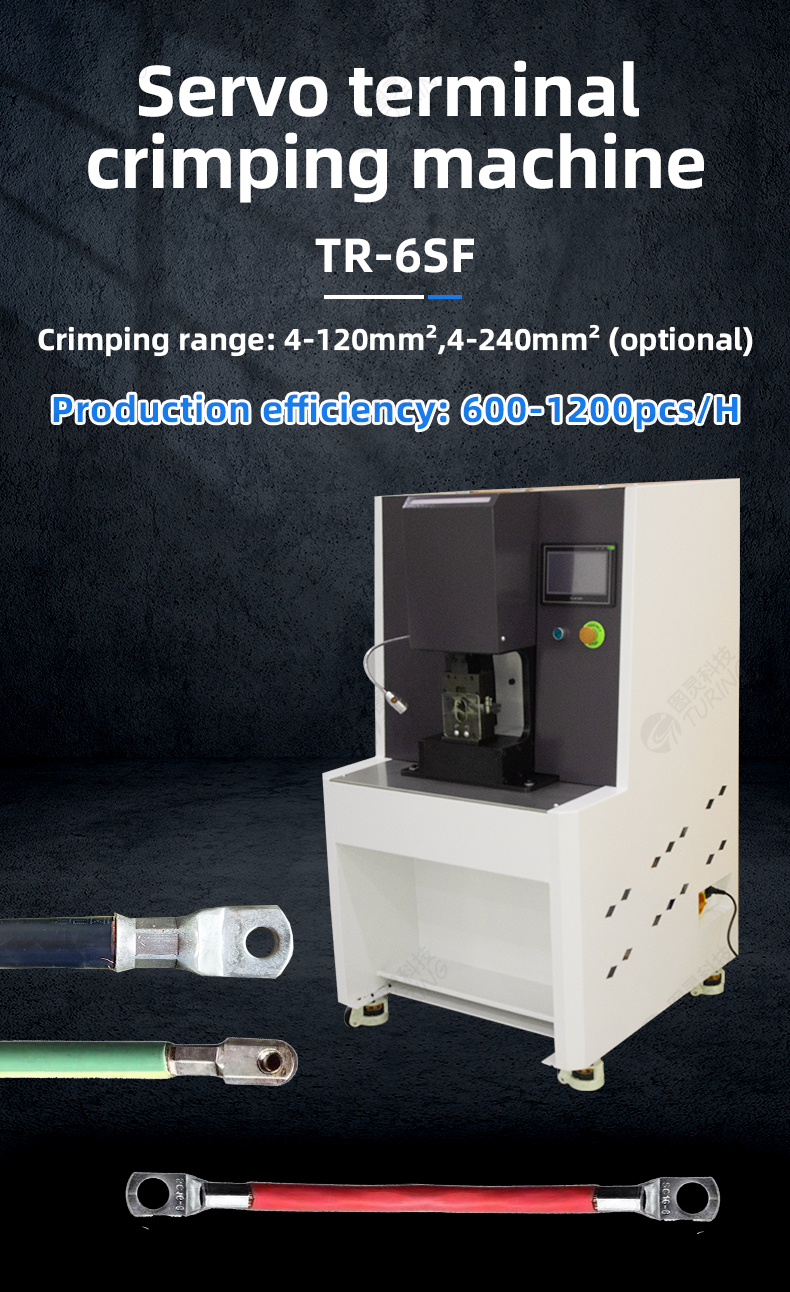

New Energy Servo Terminal Crimping Machine
02
Brand
Turing
03
Model
TR-6SF
04
Power
AC220V/50HZ,
Machine Video
TR-6SF in Operation

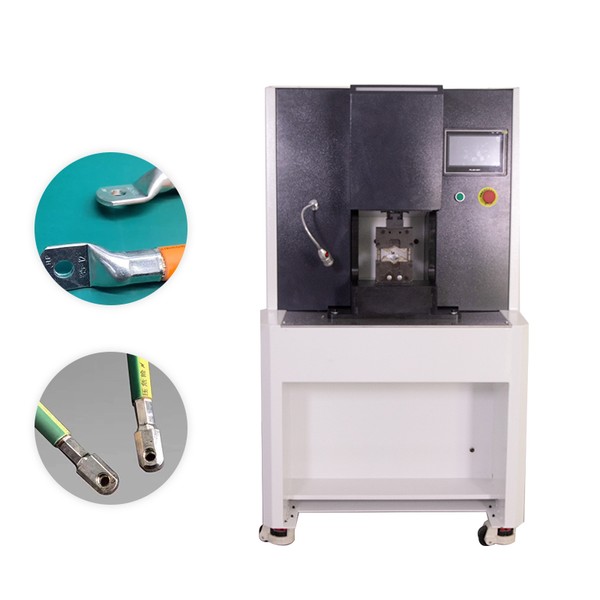

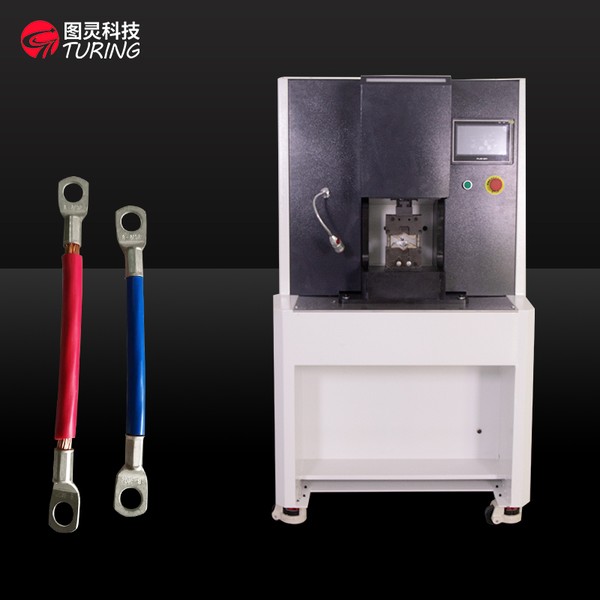

TR-6SF Servo Terminal Machine (10-300 Square Mm) in operation
Full Specifications

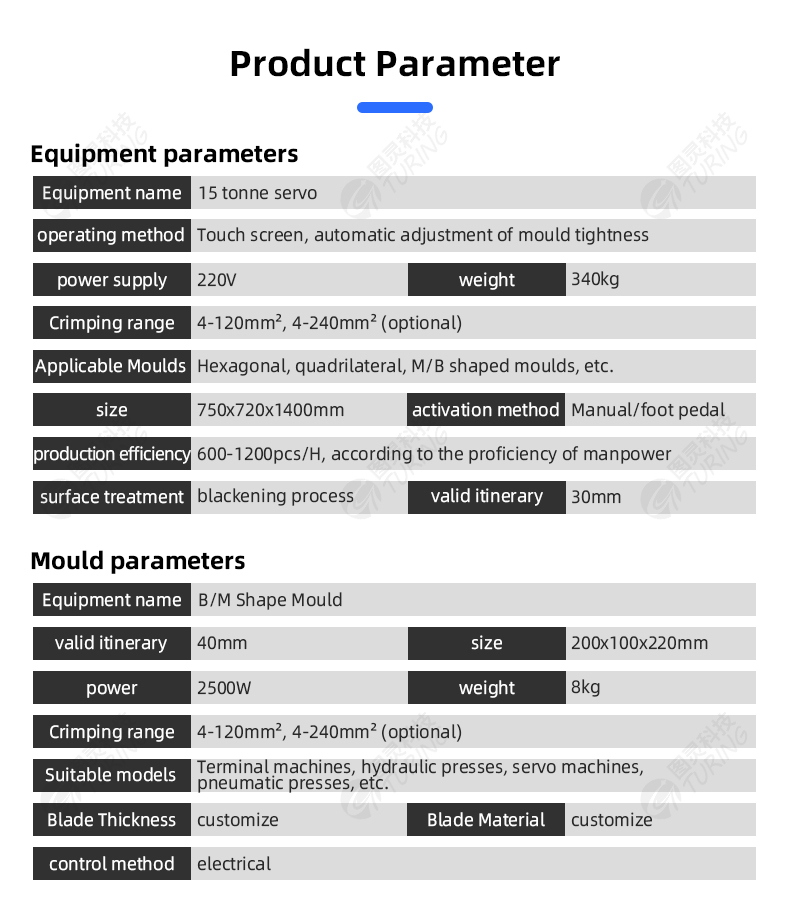

Technical Data
| Model | TR-6SF |
| Power | AC220V/50HZ, |
| Application | TR-6SF servo terminal machine (10-300 square mm) |
| Feature | Stable Performance |
| Warranty | 1year |
| Contact | Coco 0086-18666170785 |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details

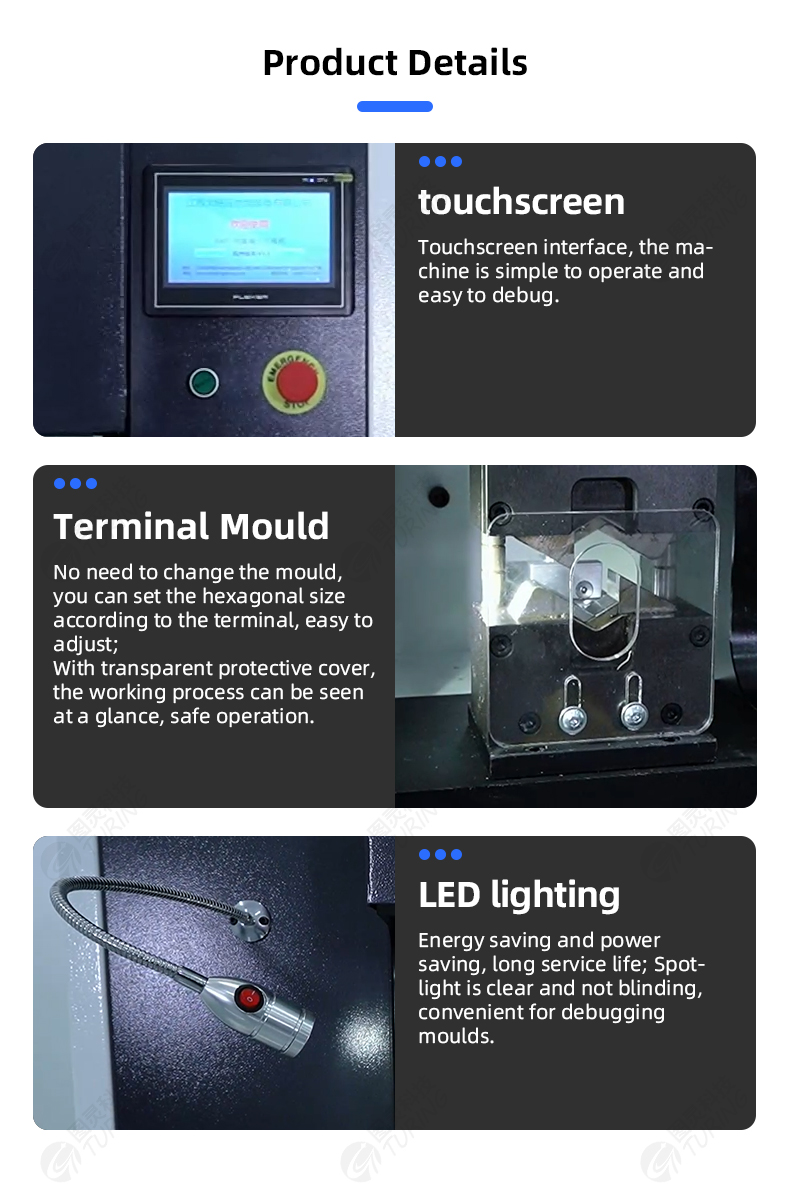

- Operating method:Touch screen, automatic adjustment of mould tightness

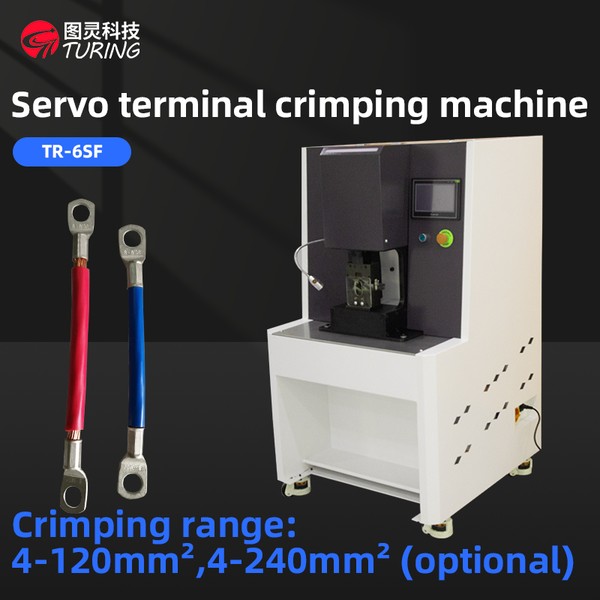

- Crimping range:4-120mm², 4-240mm² (optional)
- Applicable Moulds:Hexagonal, quadrilateral, M/B shaped moulds, etc.

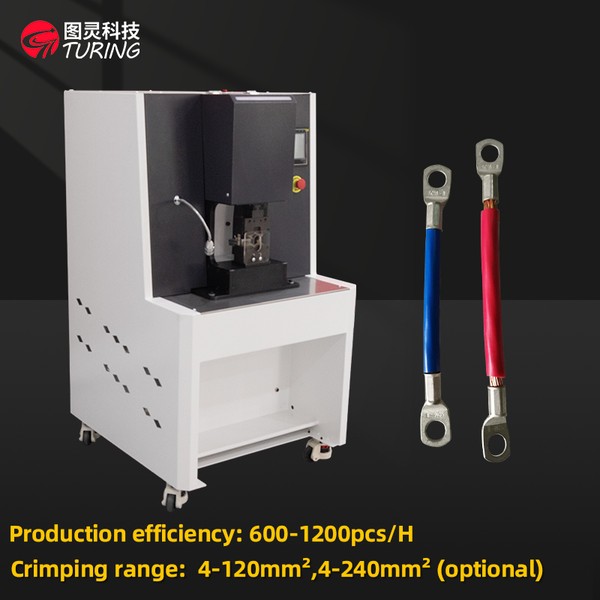

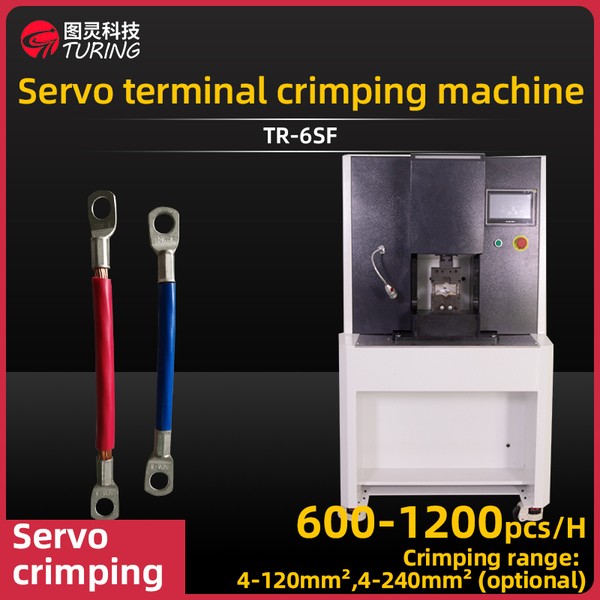

- Production efficiency:600-1200pcs/H, according to the proficiency of manpower

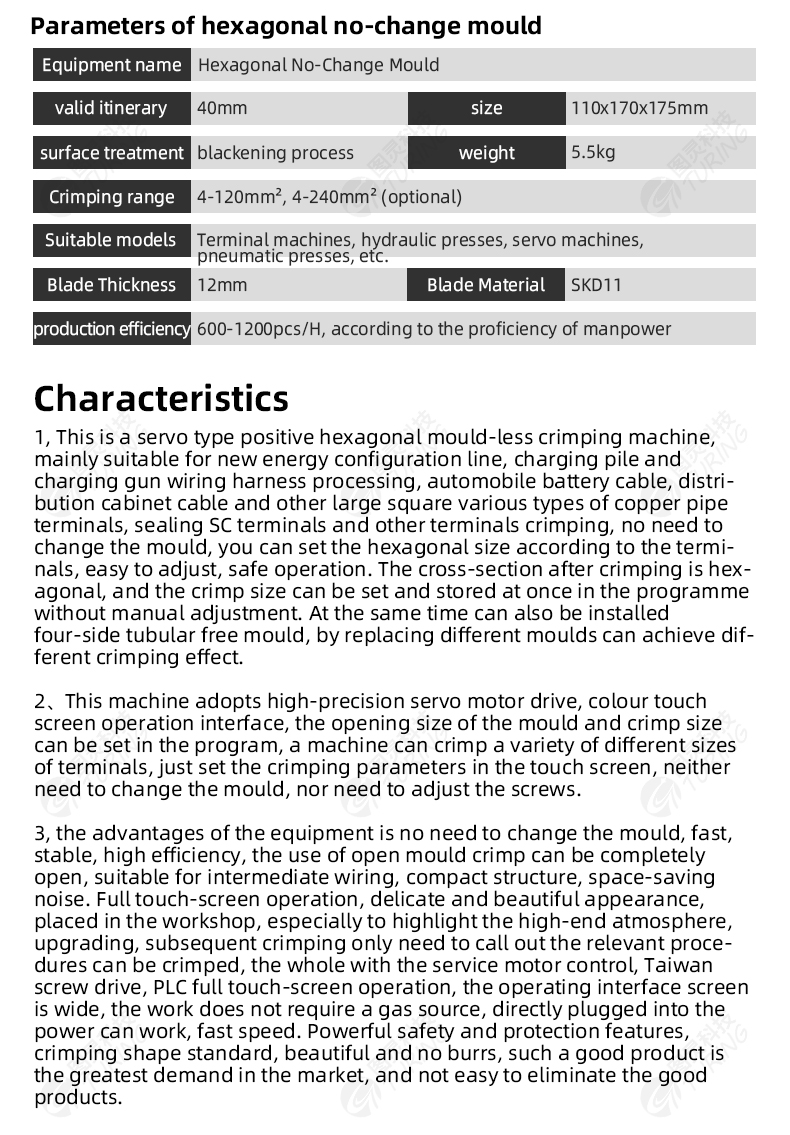

- 1, This is a servo type positive hexagonal mould-less crimping machinemainly suitable for new energy configuration line, charging pile andcharging gun wiring harness processing, automobile battery cable, distri-bution cabinet cable and other large square various types of copper pipeterminals, sealing SC terminals and other terminals crimping, no need tochange the mould, you can set the hexagonal size according to the termi-nals, easy to adjust, safe operation.The cross-section after crimping is hex-agonal, and the crimp size can be set and stored at once in the programmewithout manual adjustment. At the same time can also be installedfour-side tubular free mould, by replacing different moulds can achieve dif.ferent crimping effect.
- 2、This machine adopts high-precision servo motor drive, colour touchscreen operation interface, the opening size of the mould and crimp sizecan be set in the program, a machine can crimp a variety of different sizesof terminals, just set the crimping parameters in the touch screen, neitherneed to change the mould, nor need to adjust the screws.
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Datasheet
Full specifications in one page — parameters, power, delivery terms.
Download TR-6SF Datasheet (PDF)Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries
20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-6SF — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
