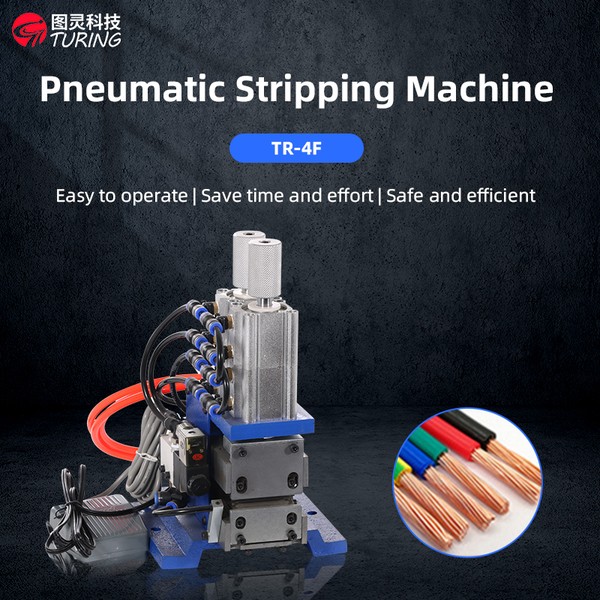

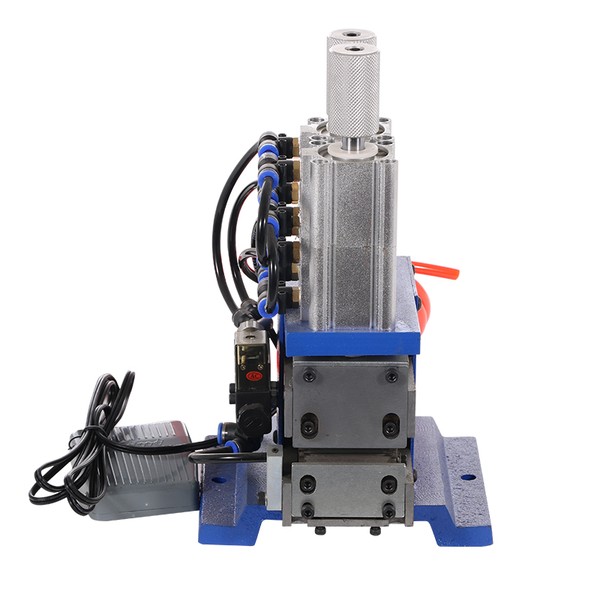

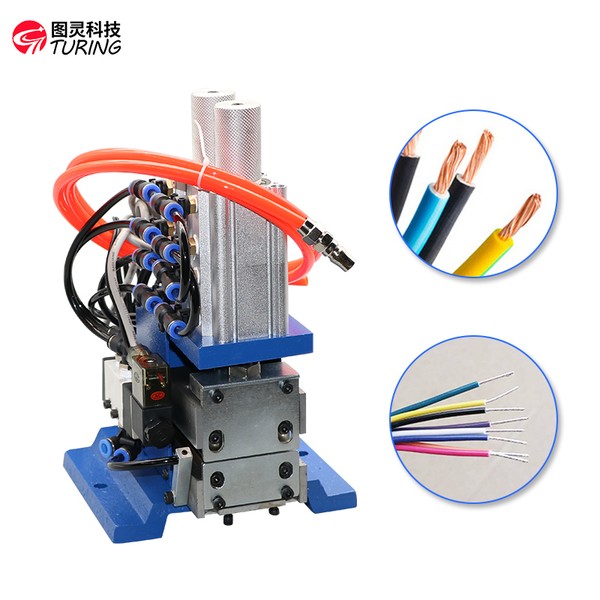

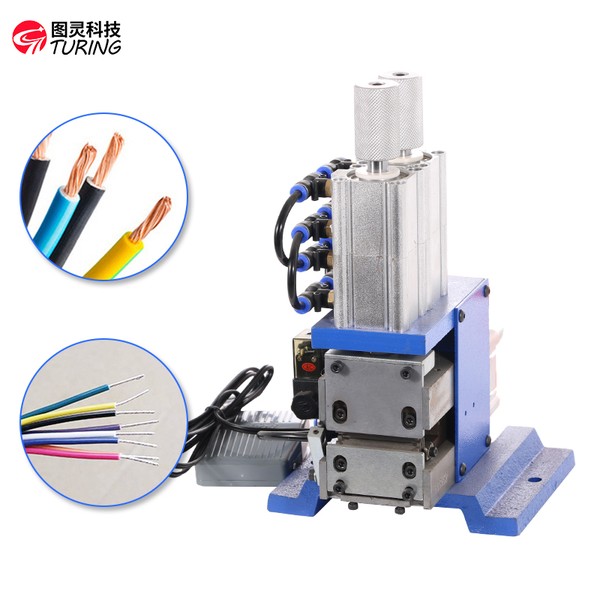

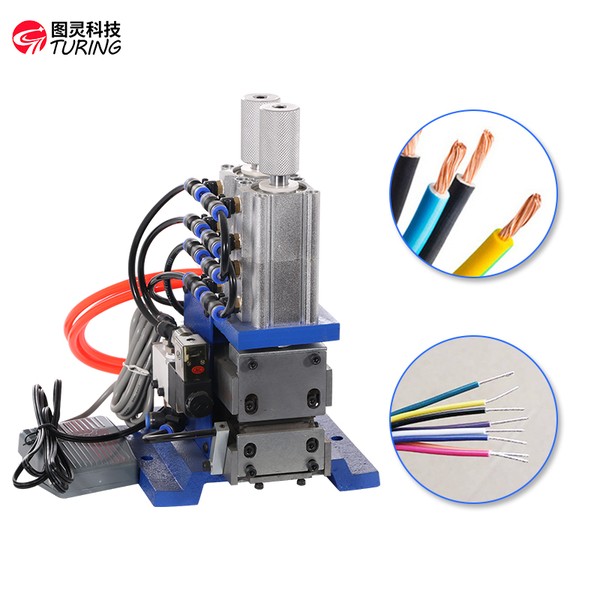

Semi-automatic Pneumatic Wire Stripping Machine
02
Brand
Turing
03
Model
TR-4F
04
Power
AC220V/50HZ,
Machine Video
TR-4F in Operation
TR-4F Turing Semi-auto Pneumatic Cable Stripping Machine in operation
Full Specifications
Technical Data
| Model | TR-4F |
| Power | AC220V/50HZ, |
| Contact | 008613715588365 |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- Suitable for electronic wires, multi-core wires, sheathed wires, rows of wires,double parallel wires and braided wires, and other wire processing industries
- 1. This model is mainly for the current wire industry in some special wire stripping,such as computer core wire, isolation line, telephone line, row of fine wires, general Wire diameter AWG# 18-32, the diameter of 0.5mm above the special line can beused in this machine.
- 2.lmprove the traditional computer core wire stripping with a foot pedalhand-pulled way, evolved into the front clip backward way, not only to save physi-cal strength, but also to improve the efficiency of the best models.
- 3. The operation adopts the plane left and right to move to put the line way, shortenthe distance between the blade and the clamping seat, so that ordinary models cannot peel the special short line can be used in the machine, and no clip or burn thefingers of the worry.
- 4. There is a double knife design, peeling and cutting in one moulding, increase ordecrease the shims to set the length, accurate, rapid, blowing device can automati.cally remove the wire debris left after peeling.
- 1.Wrench 2.0mm,3.0mm,4.0mm,5.0mm each one,17mm one;
