Highlights
01
Equipment Name

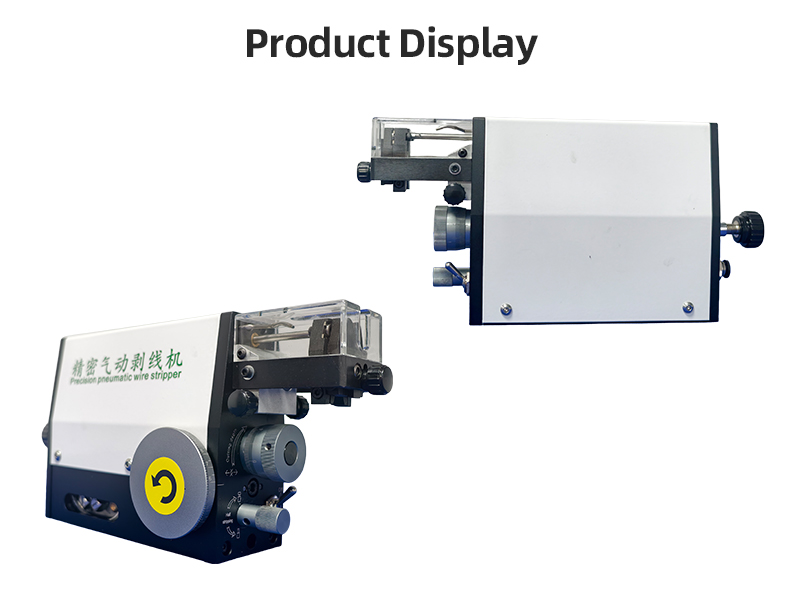

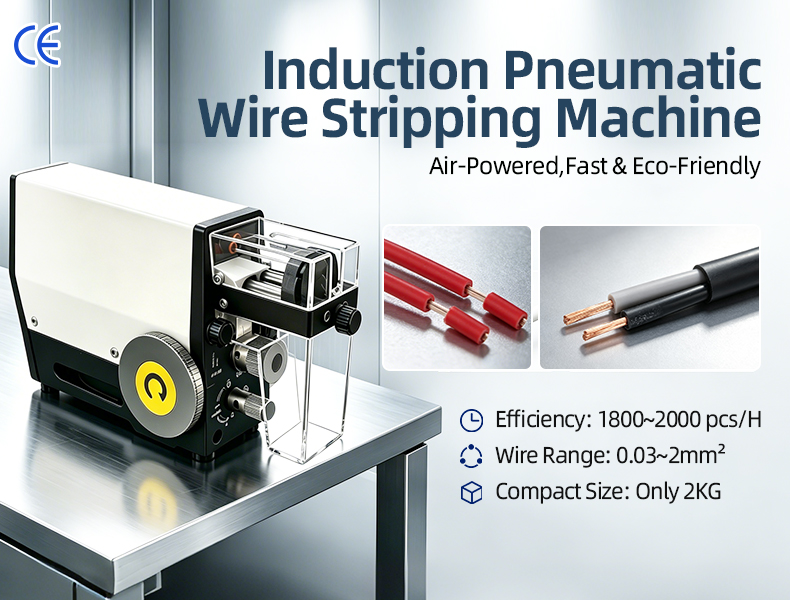

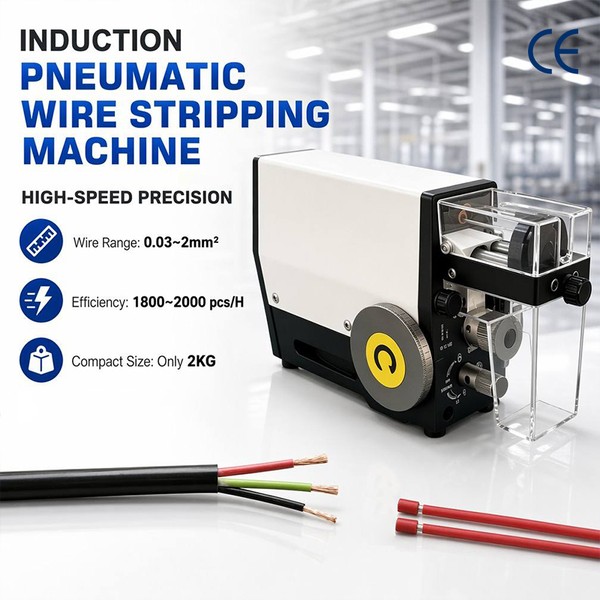

TR-2015C Induction Pneumatic Wire Stripping Machine
02
Size & Weight
265x70x135mm，2kg
03
Output
1800~2000 pcs/H
04
Wire Diameter
AWG32-AWG14(0.03-2mm²)
Machine Video
TR-2015C in Operation
TR-2015C Induction Pneumatic Wire Stripping Machine in operation
Full Specifications
Technical Data
| Model | TR-2015C |
| Stripping-length | 1-20mm |
| Wire-diameter-range | AWG32-AWG14 (0.03-2mm²) |
| Working-air-pressure | 0.5-0.7MPa |
| Dimensions-&-weight | 265×70×135mm, 2kg |
| Equipment-name | TR-2015C Induction Pneumatic Wire Stripping Machine |
| Size-&-weight | 265x70x135mm，2kg |
| Output | 1800~2000 pcs/H |
| Wire-diameter | AWG32-AWG14(0.03-2mm²) |
| Adjustment-precision | 0.05mm |

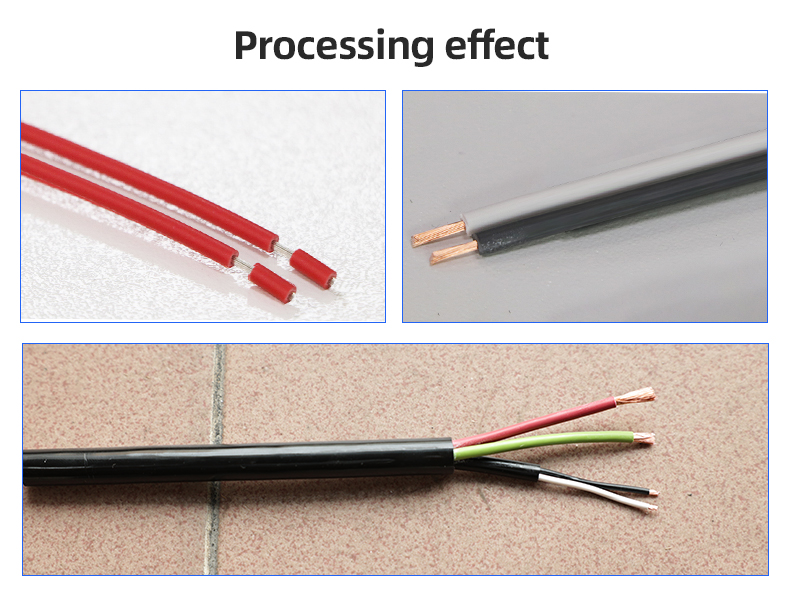

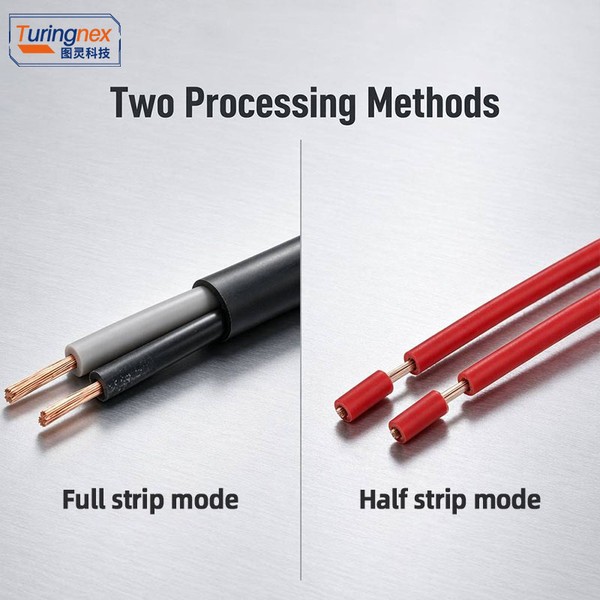

| Functions | Wire insulation stripping; half-strip with residue retention or full stripping |
| Working-principle | No power required, purely pneumatic-driven, fast and eco-friendly |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- 2. Precise positioning with extremely high stripping accuracy.

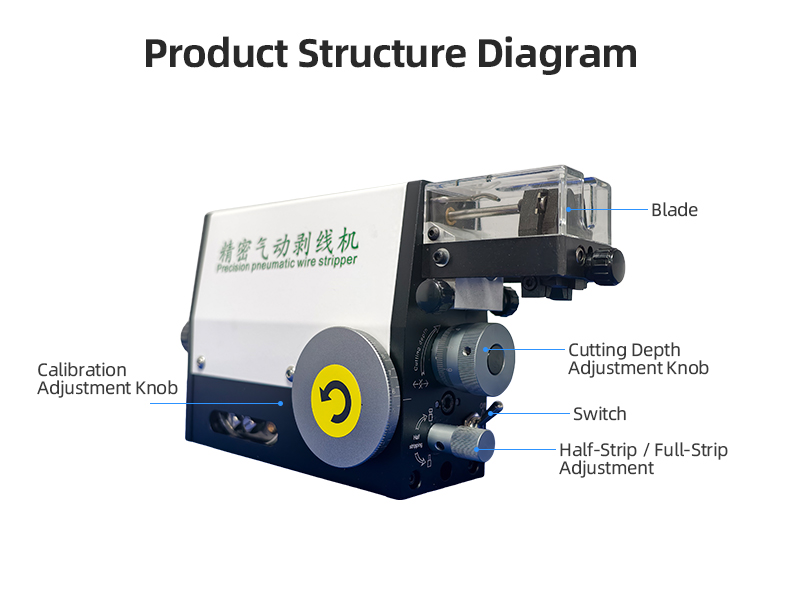

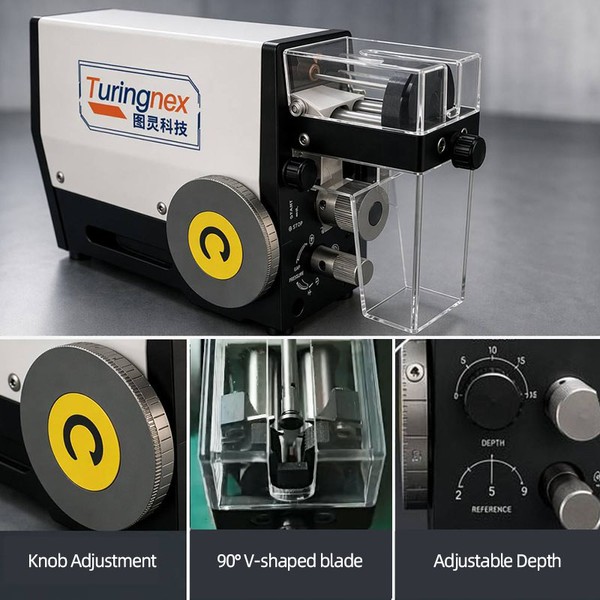

- 3. The stripping length, cutting depth, and half/full stripping modes are all adjusted via calibrated knobs. No tools are needed for quick and easy operation.

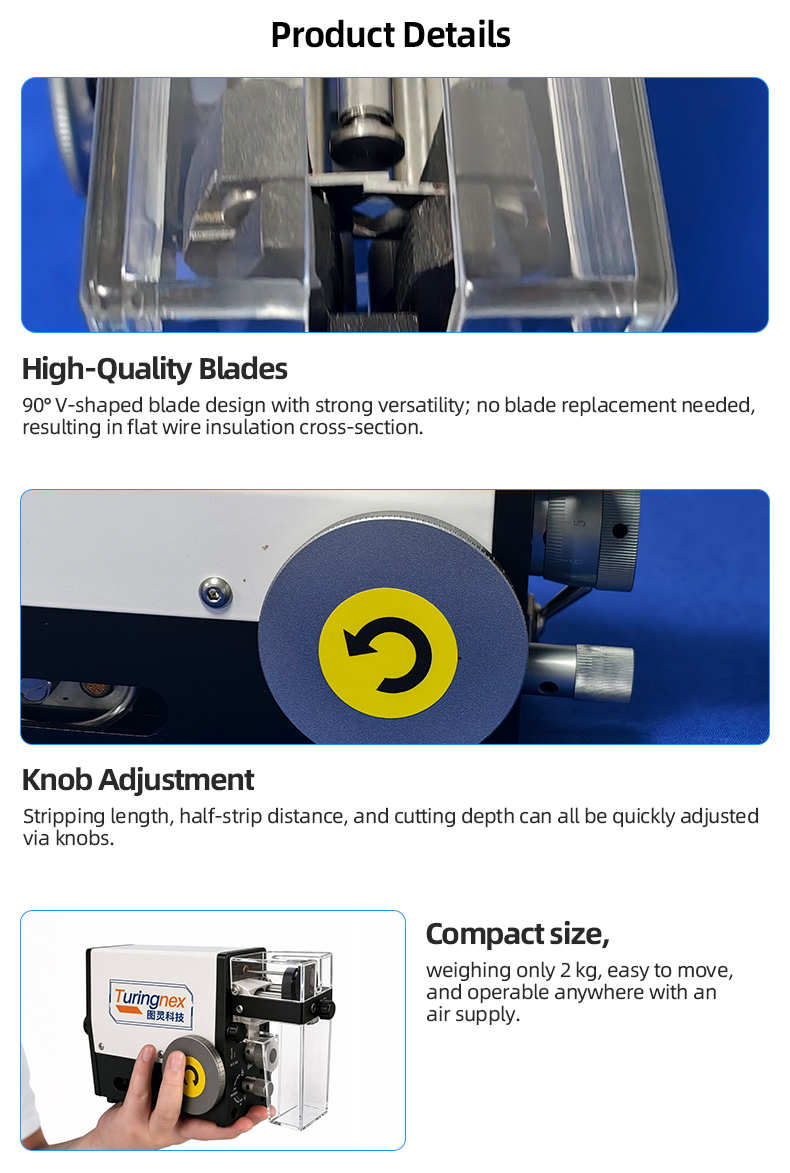

- 4. Adopts a 90-degree V-shaped blade design for excellent versatility; no blade replacement is required when processing different types of wires.

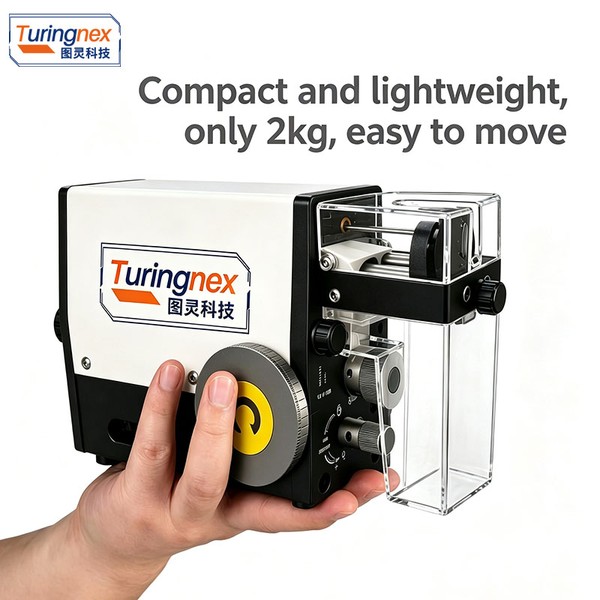

- 5. Compact size, weighing only 2 kg, easy to move, and operable anywhere with an air supply.
- 2.Production Scale: 2,500+ Units/Month capacity (500+ Auto-lines, 1000+ Semi-auto).No project delays. Massive throughput ensures we meet your tightest production deadlines.
- 3.Rapid R&D: 3-7 Days Prototyping for custom tooling based on your unique CAD/3D drawings.Unmatched flexibility. Rapid customization for complex, non-standard wire harness structures.
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program

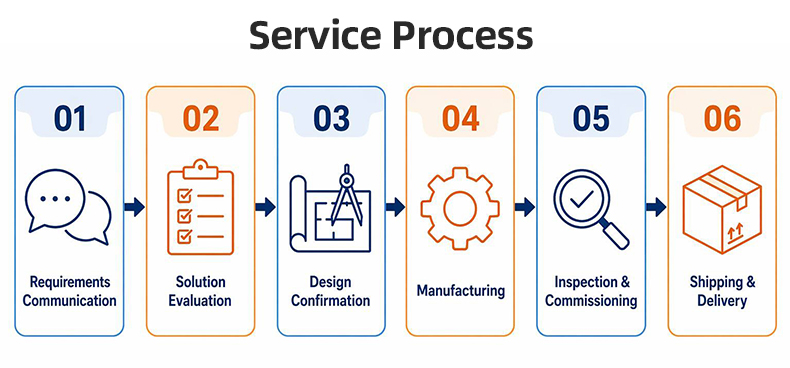

From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Datasheet
Full specifications in one page — parameters, power, delivery terms.
Download TR-2015C Datasheet (PDF)Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries

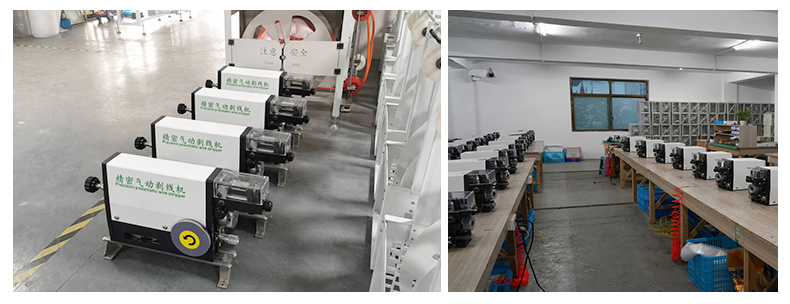

20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.

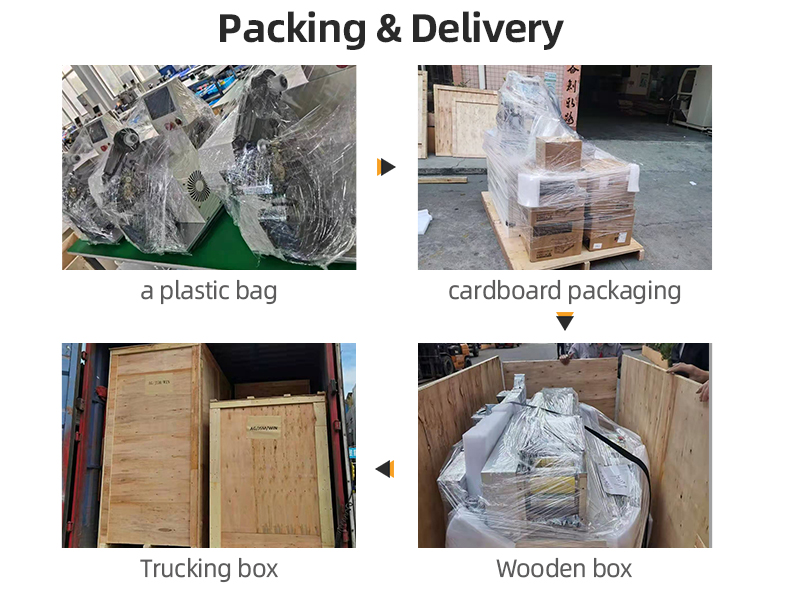

Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-2015C — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
